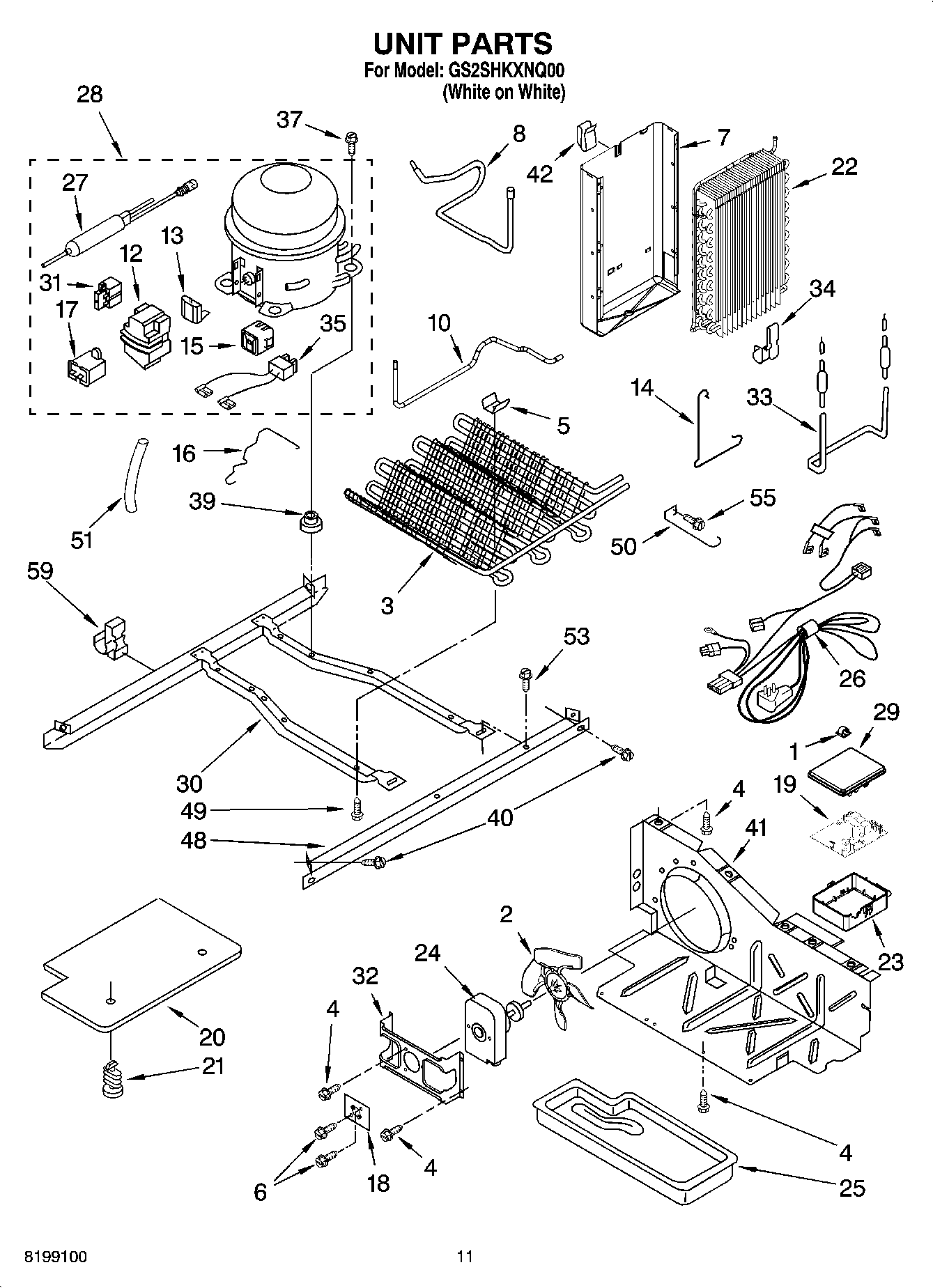

GS2SHKXNQ00 08 – UNIT PARTS

GS2SHKXNQ00 08 – UNIT PARTS

Written by

in

GS2SHKXNQ00 08 – UNIT PARTS

Products

Position	Product
1	WP1115374 Whirlpool Refrigerator Clip
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	8281160 Whirlpool Screw
7	Heat Shield
8	2205764 Whirlpool Refrigerator Tube
10	2261599 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	Clamp
15	8201786 Whirlpool Relay and Overload Start Kit
16	2223314 Whirlpool Refrigerator Clip
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Insert, Bracket
19	Control, Electronic
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Box, Control
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
29	Box Cover
30	2304903 Whirlpool Refrigerator Frame
31	W10920279 Whirlpool Refrigerator Start Relay
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
35	WP2172890 Whirlpool Refrigerator Wire
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	SLEEVE
53	WP489427 Whirlpool Refrigerator Screw
55	WP489478 Whirlpool Refrigerator Screw
59	978027 Whirlpool Refrigerator Primary Valve
59	WPL ARI69988A6
59	FOLLOWING P
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (5/8“)
59	876764 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	W10169512 Whirlpool Clip
59	VALVE, ACCESS (1/2“)
59	978026 Whirlpool Refrigerator Primary Valve
59	WPL ARI69989A3
