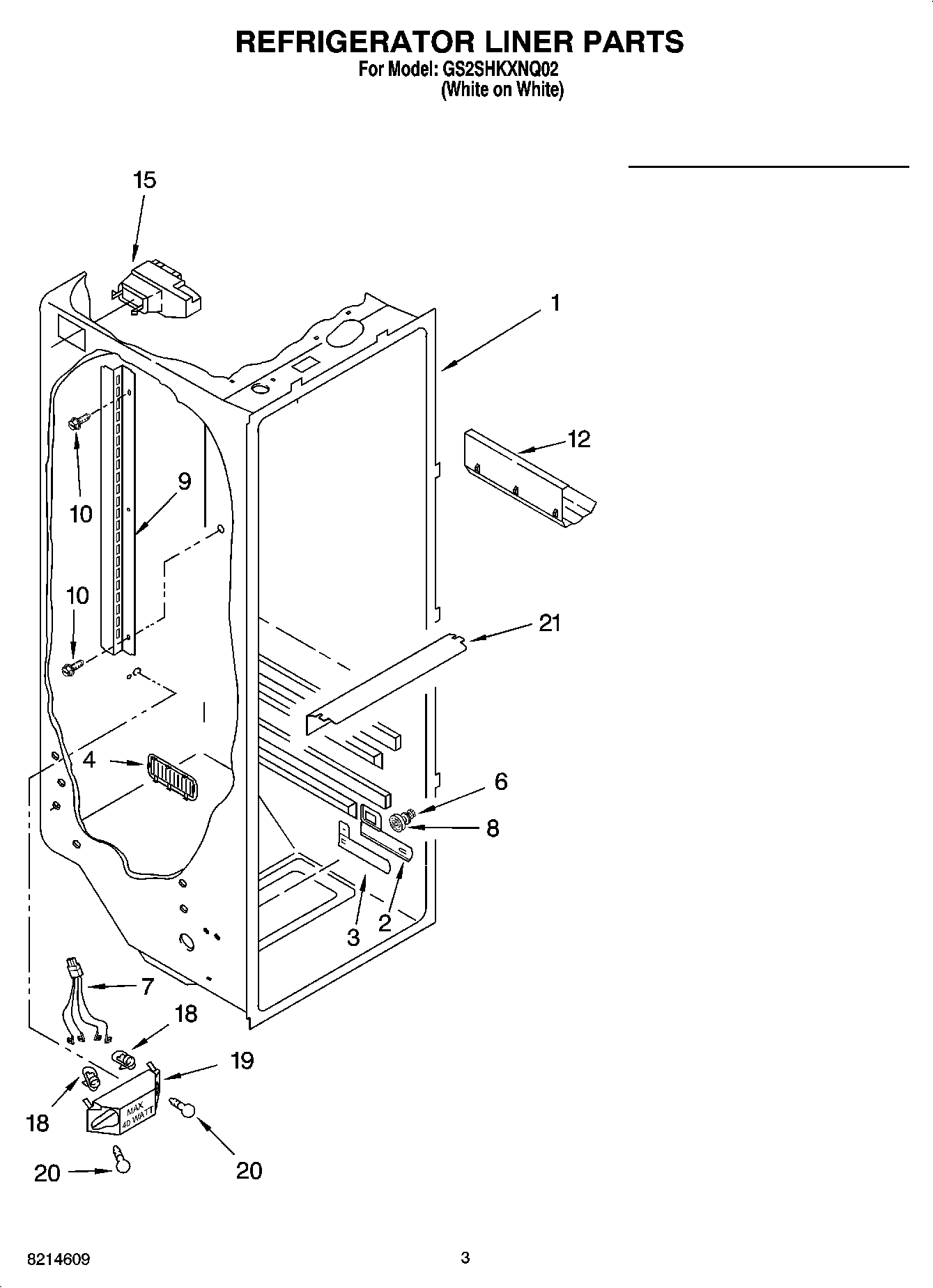

GS2SHKXNQ02 02 – REFRIGERATOR LINER PARTS

GS2SHKXNQ02 02 – REFRIGERATOR LINER PARTS

Written by

in

GS2SHKXNQ02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
6WP3-24004-109 Whirlpool Refrigerator Screw
72311637 Whirlpool Refrigerator Wire Harness
8W11223328 Whirlpool Refrigerator Shelf Stud
9Shelf Ladder
10WP489478 Whirlpool Refrigerator Screw
12W10777924 Whirlpool Refrigerator Wine Rack
15WPW10151374 Whirlpool Refrigerator Diffuser
184387478 Whirlpool Refrigerator Light Socket
19Bracket, Dual Crisper Light
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
