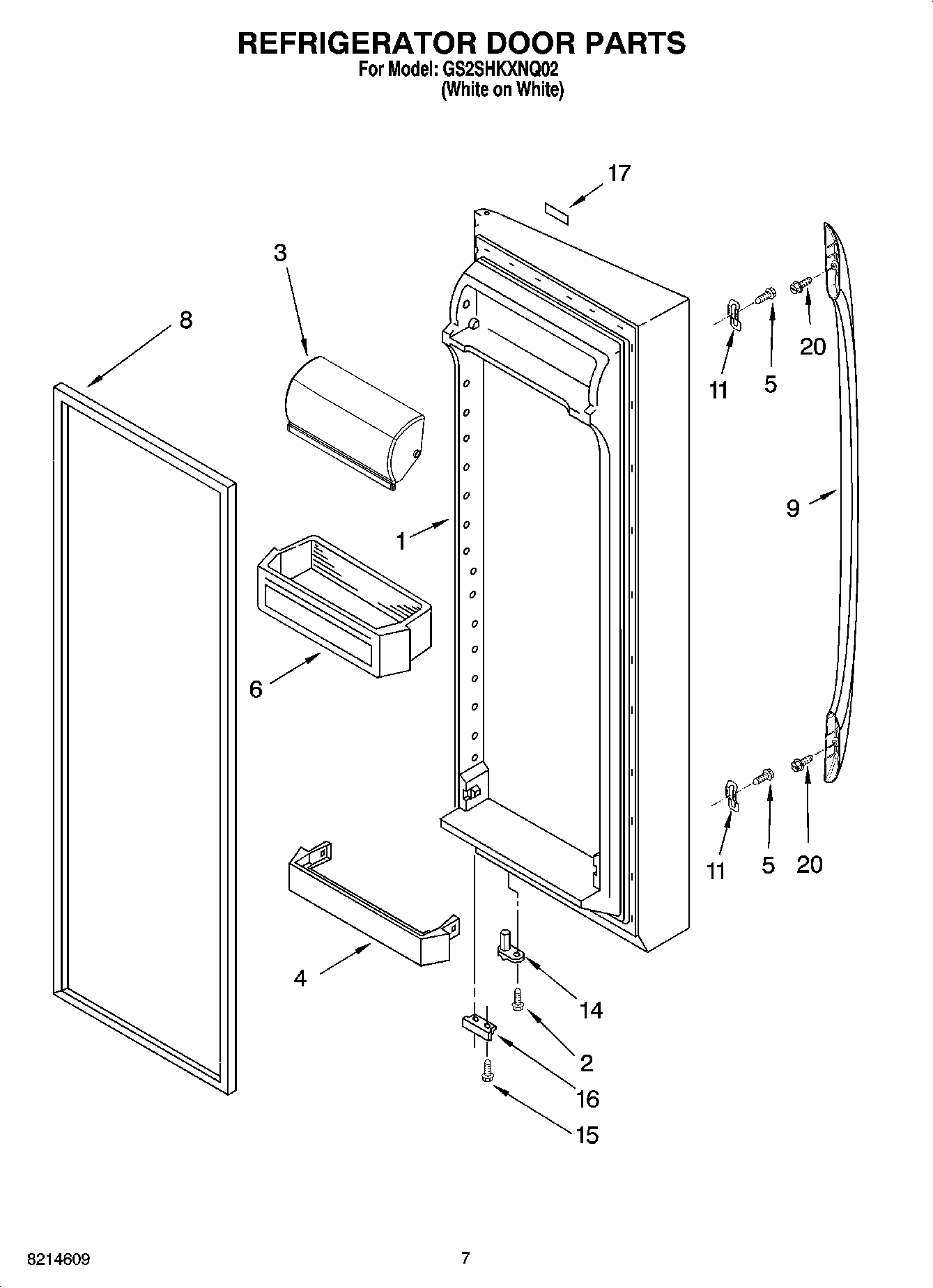

GS2SHKXNQ02 06 – REFRIGERATOR DOOR PARTS

GS2SHKXNQ02 06 – REFRIGERATOR DOOR PARTS

Written by

in

GS2SHKXNQ02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (White)
2WP3400012 Whirlpool Refrigerator Screw
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
82159073 Whirlpool Refrigerator Door Gasket
9Handle (White)
11WP2255411 Whirlpool Refrigerator Clip
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop
17Nameplate
20SCREW
