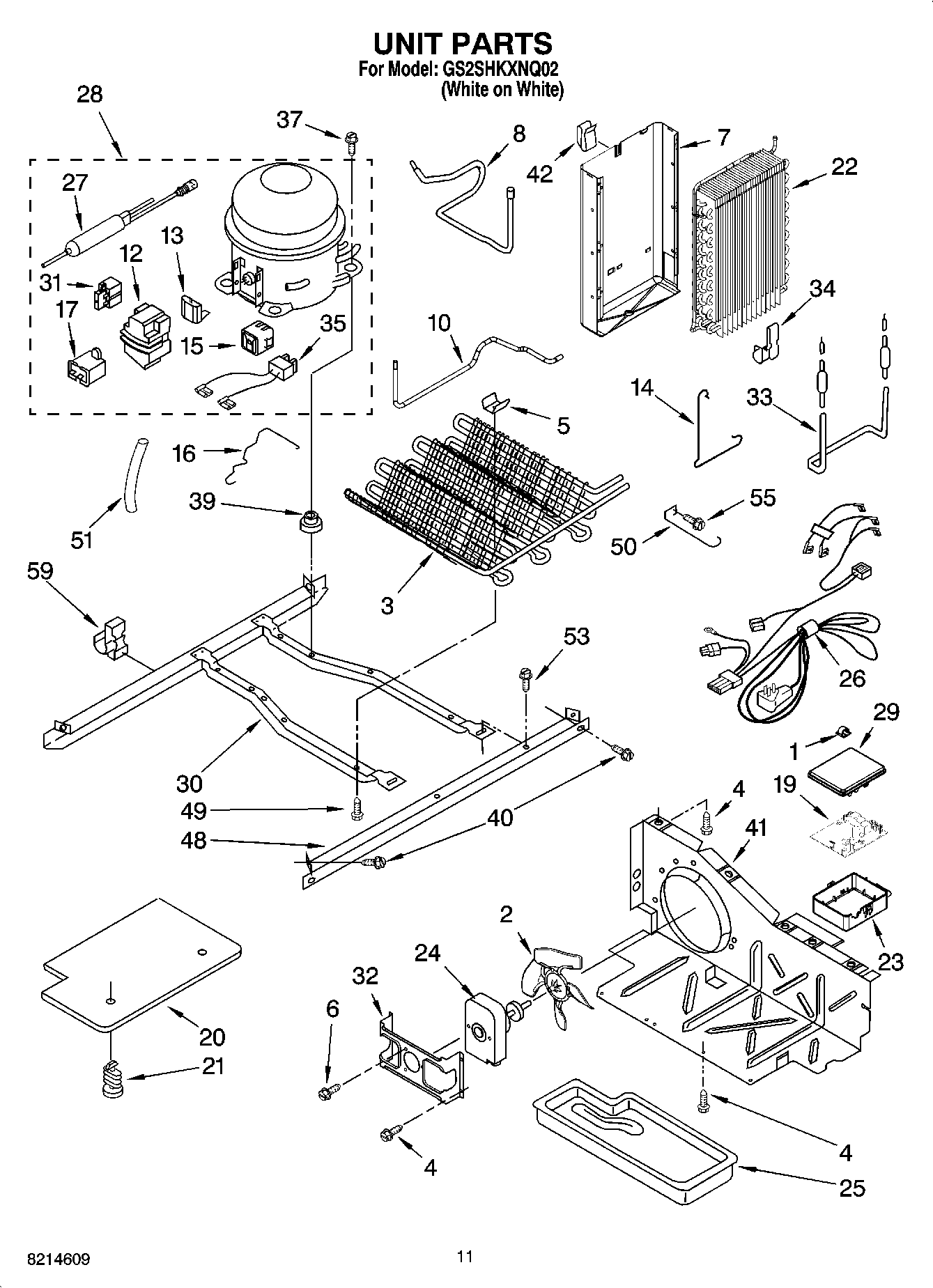

GS2SHKXNQ02 08 – UNIT PARTS

GS2SHKXNQ02 08 – UNIT PARTS

Written by

in

GS2SHKXNQ02 08 – UNIT PARTS

Products

Position	Product
1	WP1115374 Whirlpool Refrigerator Clip
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	Heat Shield
8	2220642 Whirlpool Refrigerator Tube
10	2261599 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	Clamp
15	WP2188831 Whirlpool Refrigerator Start Device
16	2255009 Whirlpool Retainer
17	WP65889-4 Whirlpool Refrigerator Capacitor
19	Control, Electronic
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Box, Control
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
29	Box Cover
30	2304903 Whirlpool Refrigerator Frame
31	W10920279 Whirlpool Refrigerator Start Relay
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
35	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	SLEEVE
53	WP489427 Whirlpool Refrigerator Screw
55	WP489478 Whirlpool Refrigerator Screw
59	and Optional Parts Not Included
59	FOLLOWING PARTS NOT ILLUSTRATED
59	VALVE, ACCESS (5/8“)
59	W10169512 Whirlpool Clip
59	876764 Whirlpool Refrigerator Primary Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
59	978026 Whirlpool Refrigerator Primary Valve
59	REF
