GS395LEGB0 01 – COOKTOP
Written by
in

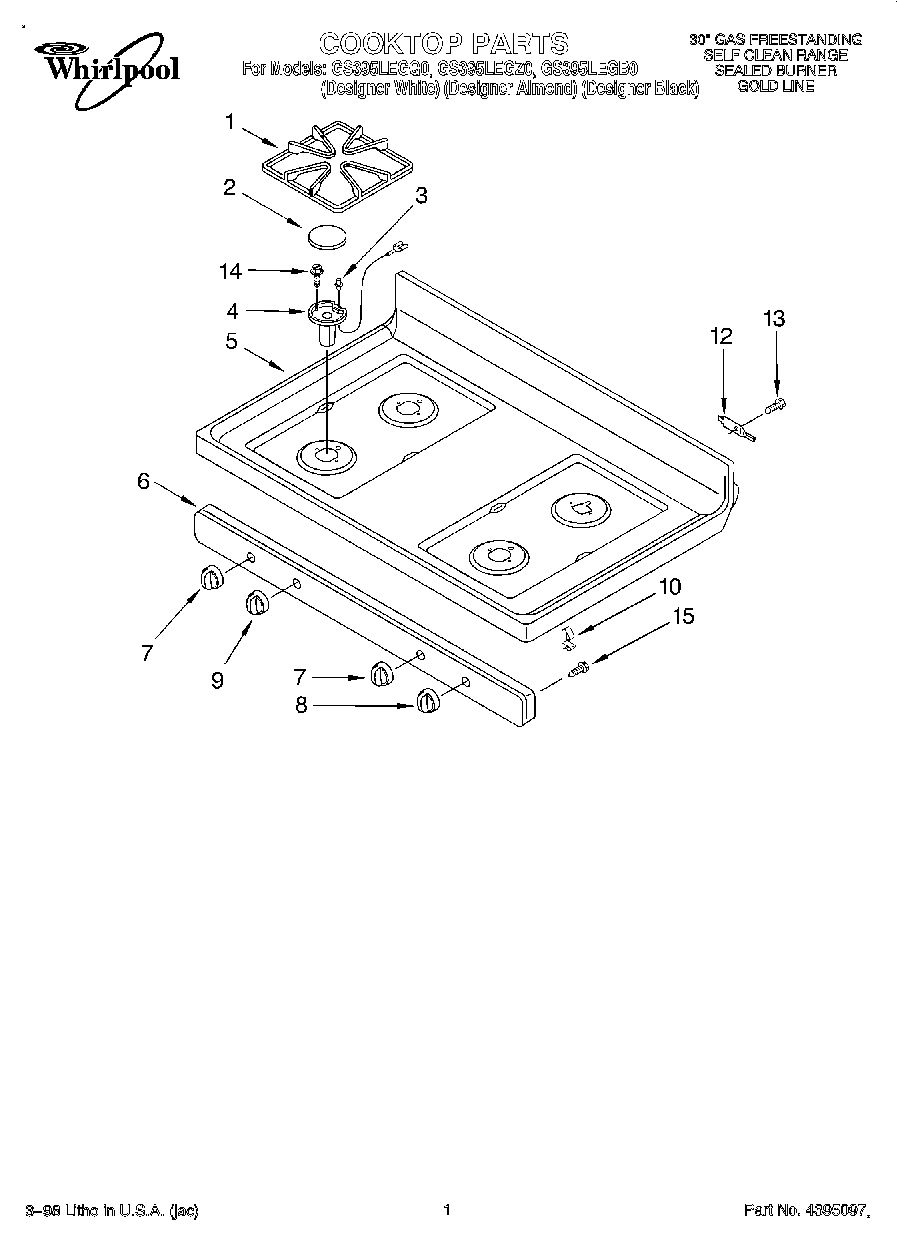

GS395LEGB0 01 – COOKTOP
Products
Position
Product
1
WP8053456 Whirlpool Burner Grate
1
WPW10447925 Whirlpool Grate Kit
2
(Cap, Burner Small (1)) (Gray)
2
Cap, Burner (Small (1) (Black))
2
Cap, Burner Large (3) (Gray)
2
Cap, Burner (Large (3) (Black))
3
W11117434 Whirlpool Surface Igniter
3
W11032529 Whirlpool Surface Igniter
3
W11122877 Whirlpool Surface Igniter
3
W11087383 Whirlpool Surface Igniter
4
WP8053360 Whirlpool Burner Head
4
Burner, 6,500 BTU (RR)
5
Cooktop (White)
5
Cooktop (Almond)
5
Cooktop (Black)
6
Panel, Manifold (Almond Model)
6
WP8523854 Whirlpool Manifold Panel
6
8523855 Whirlpool Oven Manifold Panel
7
WP8053595 Whirlpool Oven Knob
7
WP8053596 Whirlpool Knob
7
Knob, Control (2) (Almond)
8
Knob, Accusimmer (Almond)
9
Knob, Powerburner (Almond)
10
Clip – Mounting
12
WP3195060 Whirlpool Cooktop Pin
13
SCREW
14
WP3400861 Whirlpool Screw
15
WP3196557 Whirlpool Screw
←
