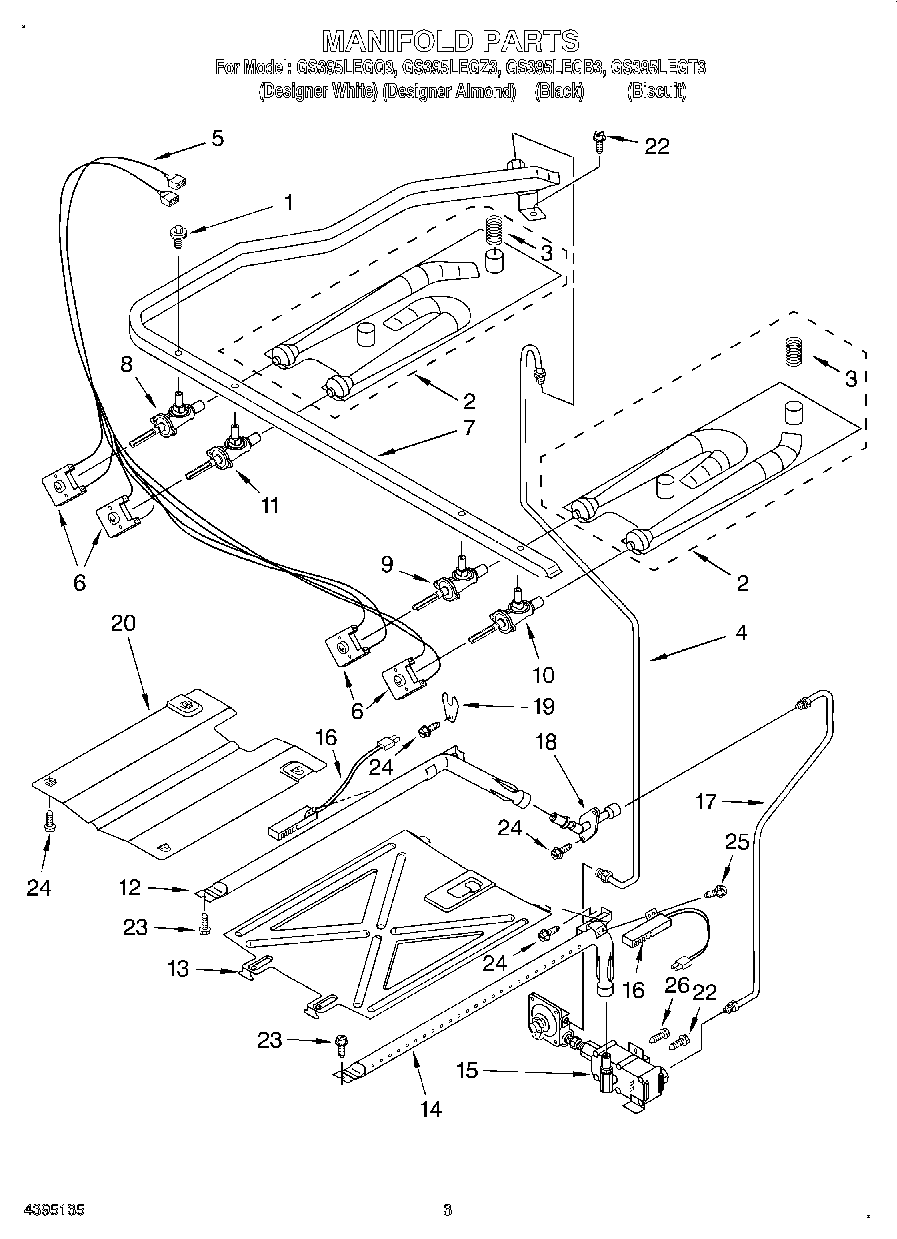

GS395LEGB3 03 – MANIFOLD

Products

PositionProduct
1WP3186217 Whirlpool Screw
2Plate, Venturi (Includes No. 3) (Right Hand)
2Plate, Venturi (Includes No. 3) (Left Hand)
3Spring, Seal (4)
4Tubing (Manifold to Regulator)
5Harness, Igniter (Incl. Switches)
6Switch, Spark
7Pipe, Manifold
8Valve, 7,500 BTU (LR)
9Valve, 9,500 BTU (RF)
10Valve, 6,500 BTU (RR)
11Valve, 12500 BTU (LF)
12Burner, Broiler
13Spreader, Flame (Oven)
14Burner, Bake
15Valve, Gas Combo
16WP3186491 Whirlpool Oven Igniter
17Tubing (Valve To Broiler Fitting)
18Fitting, Broiler
19Cover, Igniter
20W10137062 Whirlpool Burner Baffle
233196265 Whirlpool Oven Screw
24SCREW
25W11684507 Whirlpool Screw
26Spuds, Natural Gas (Kit of 4)
26Spuds, LP Gas (Kit of 4)
26WP3196183 Whirlpool Screw
