GS395LEGQ5 02 – CONTROL PANEL

GS395LEGQ5 02 – CONTROL PANEL

Written by

in

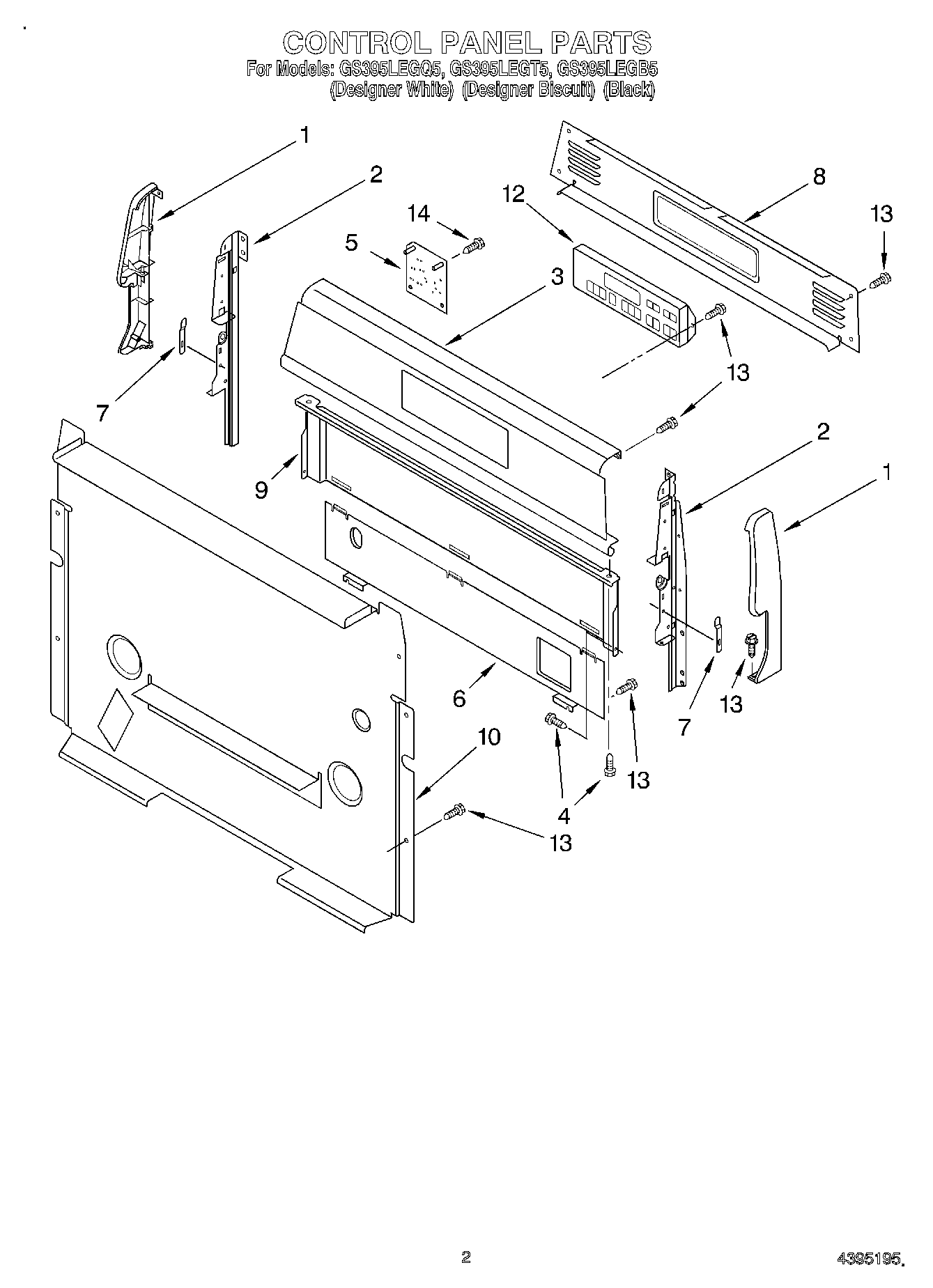

GS395LEGQ5 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
3Panel, Control (Black)
3Panel, Backguard (Biscuit)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range
12Control, Range
12Control, Range (Biscuit)
13SCREW
14WP3196557 Whirlpool Screw
