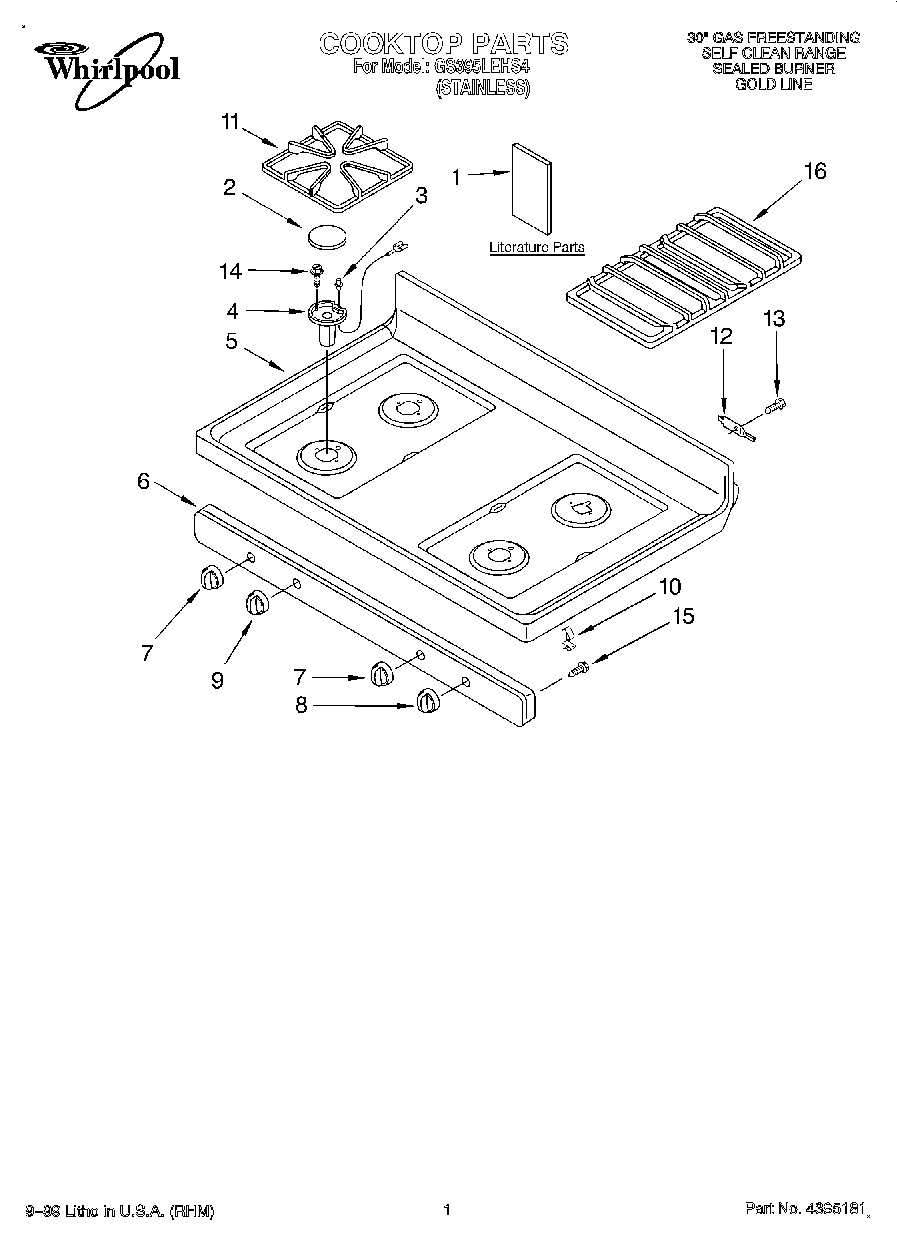

GS395LEHS4 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1WPL LIT8053366
1Literature (Installation, Instructions (Template))
1WPL LIT3196061
1Literature Parts (Guide, Use & Care)
2Cap, Burner (Black (Small))
2Cap, Burner (Black (Large))
3W11032529 Whirlpool Surface Igniter
3W11087383 Whirlpool Surface Igniter
3W11117434 Whirlpool Surface Igniter
3W11122877 Whirlpool Surface Igniter
4Burner, 6,500 BTU (RR)
4WP8053360 Whirlpool Burner Head
5Cooktop (Black)
68523855 Whirlpool Oven Manifold Panel
7Knob, Control (2)
8Knob, Accusimmer
9Knob, Powerburner
10Clip – Mounting
11Grate, Burner (4) (Black)
12WP3195060 Whirlpool Cooktop Pin
13SCREW
14WP3400861 Whirlpool Screw
15WP3196557 Whirlpool Screw
16Grate, Center
