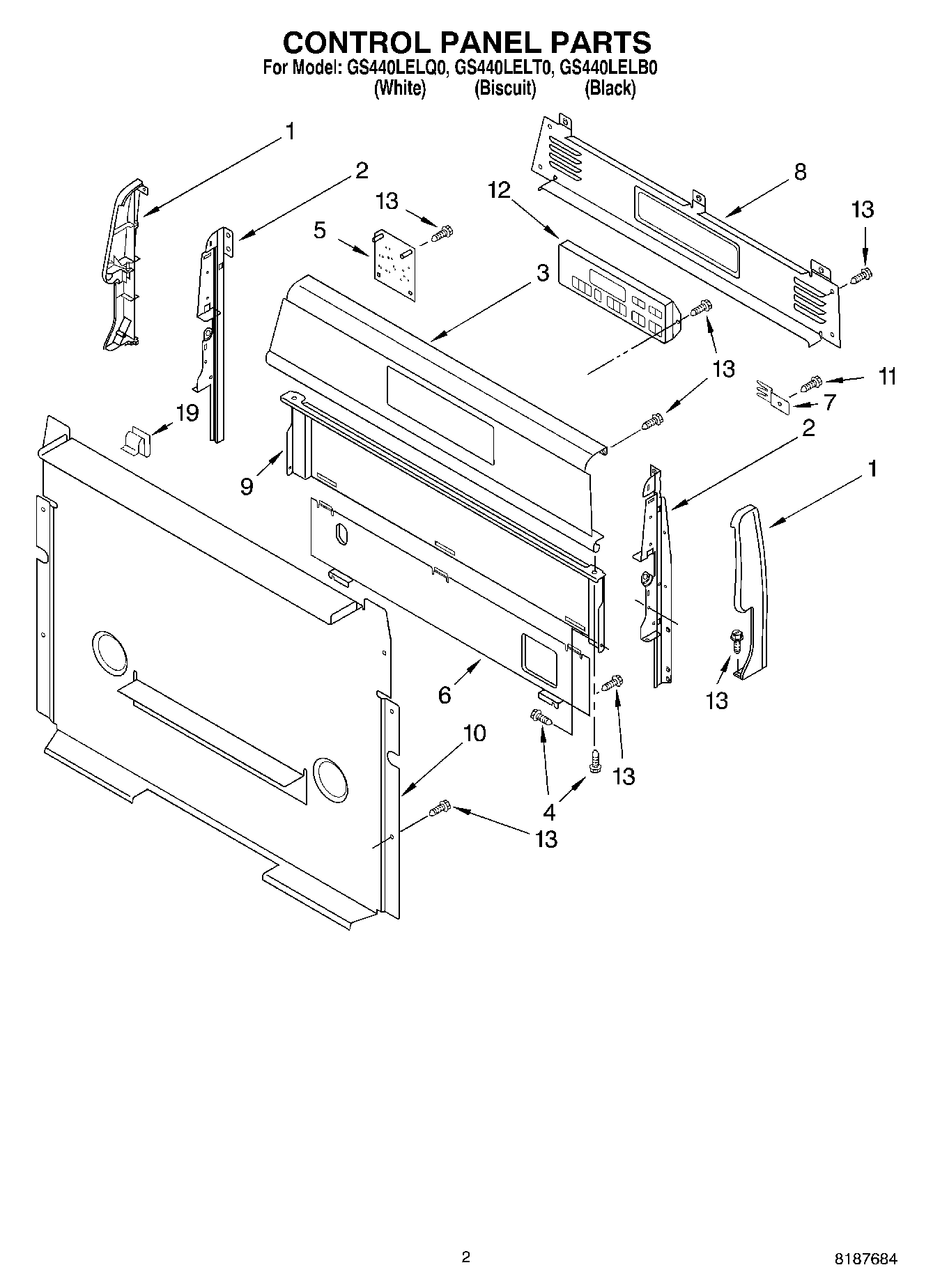

GS440LELB0 02 – CONTROL PANEL PARTS

GS440LELB0 02 – CONTROL PANEL PARTS

Written by

in

GS440LELB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Right Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Control (White)
3Panel, Control (Black)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP3196557 Whirlpool Screw
12Control, Range (Biscuit)
12Control, Range (White)
12Control, Range (Black)
13SCREW
19Panel, Control (Biscuit)
19WP8273564 Whirlpool Clip
