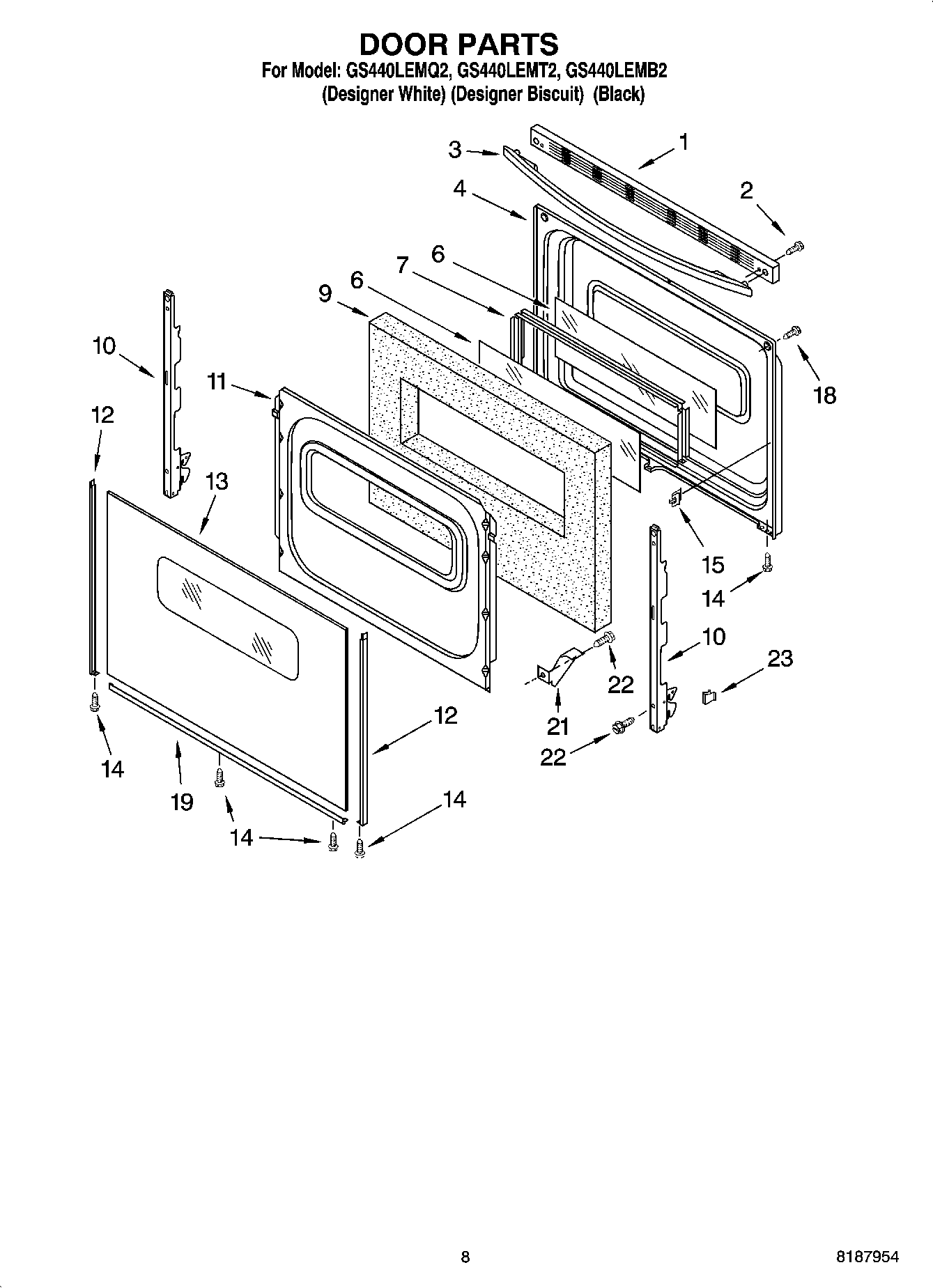

GS440LEMQ2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI150160A
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	WPL ARI150161A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	3196696 Whirlpool Clip
	Grease
	WPL ARI150159A
	WPL ARI150158A
	WPL ARI150157A
	WPL ARI150156A
	WPL ARI150155A
	WPL ARI150154A
	WPL 8523425
	WPL 8524207
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	3196896 Whirlpool Clip
	WPL 8316781
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Wire (14 Ga. 150 c Yellow)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	350942 Whirlpool Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	Almond (Uncut)
	814381 Whirlpool Pin
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	WP8053807 Whirlpool Oven Door Hinge
11	W11539580 Whirlpool Retainer
12	W10761014 Whirlpool Right Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	WPW10118455 Whirlpool Door Glass Assembly
13	WPW10118454 Whirlpool Door Outer Glass White
13	Glass, Outer (Biscuit)
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP8523175 Whirlpool Door Trim Assembly
19	WP8523178 Whirlpool Door Trim
19	WP8523177 Whirlpool Door Trim Assembly
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	WP3196925 Whirlpool Clip Assembly
