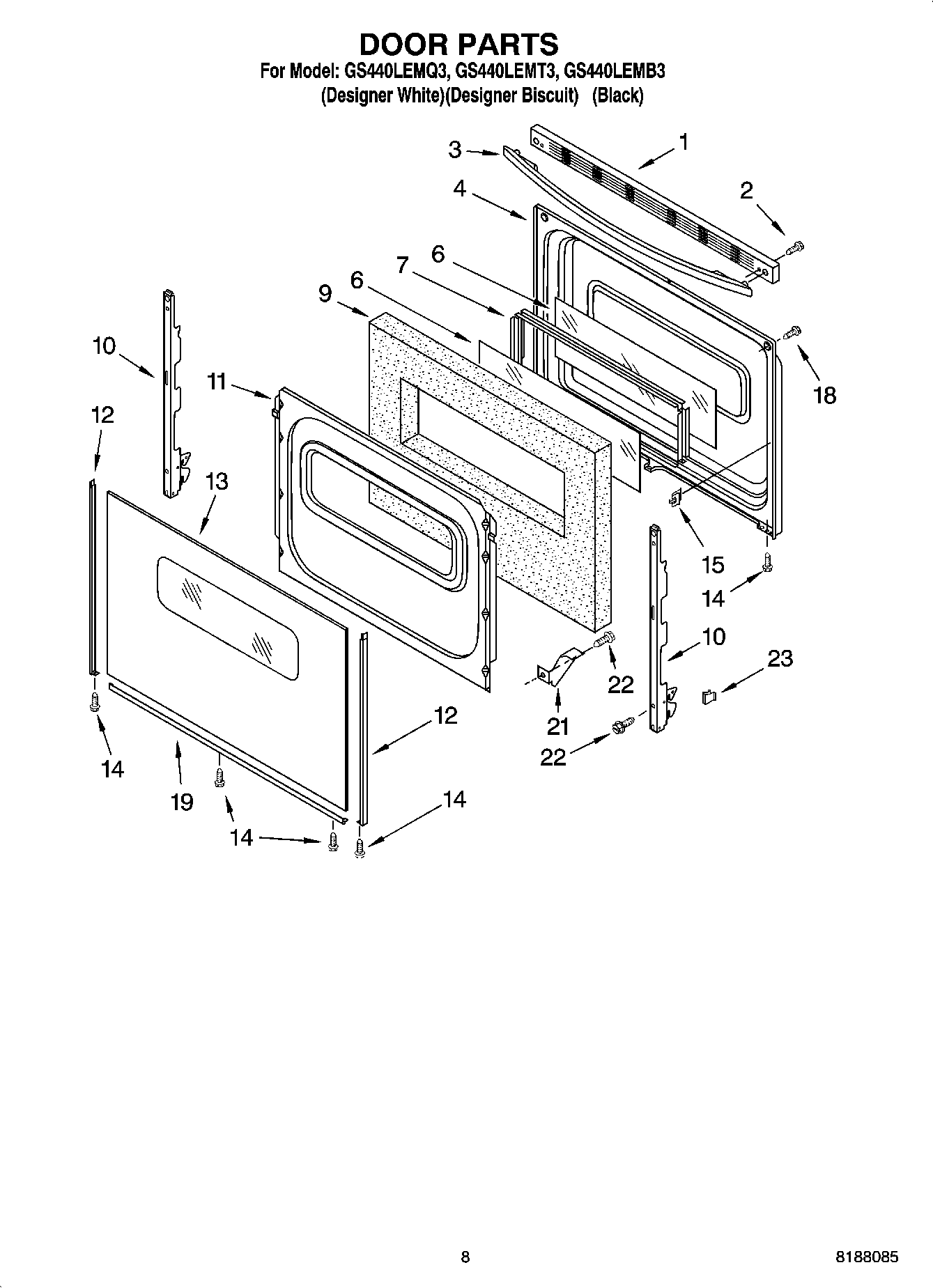

GS440LEMQ3 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GS440LEMQ3 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GS440LEMQ3 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI150170A
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WPL ARI150171A
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
8212471 Whirlpool Oven Paint
Grease
3196896 Whirlpool Clip
WPL ARI150169A
WPL ARI150168A
WPL ARI150167A
WPL ARI150166A
WPL ARI150165A
WPL ARI150164A
WPL 9758206
WPL 8524207
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Green)
814381 Whirlpool Pin
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
W11447673 Whirlpool Range Tip Anchor
350942 Whirlpool Spray Paint
Almond (Uncut)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Biscuit)
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10WP8053807 Whirlpool Oven Door Hinge
11W11539580 Whirlpool Retainer
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
13WPW10118455 Whirlpool Door Glass Assembly
13Glass, Outer (Biscuit)
13WPW10118454 Whirlpool Door Outer Glass White
14W10491985 Whirlpool Screw
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP8523177 Whirlpool Door Trim Assembly
19WP8523175 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
23WP3196925 Whirlpool Clip Assembly
