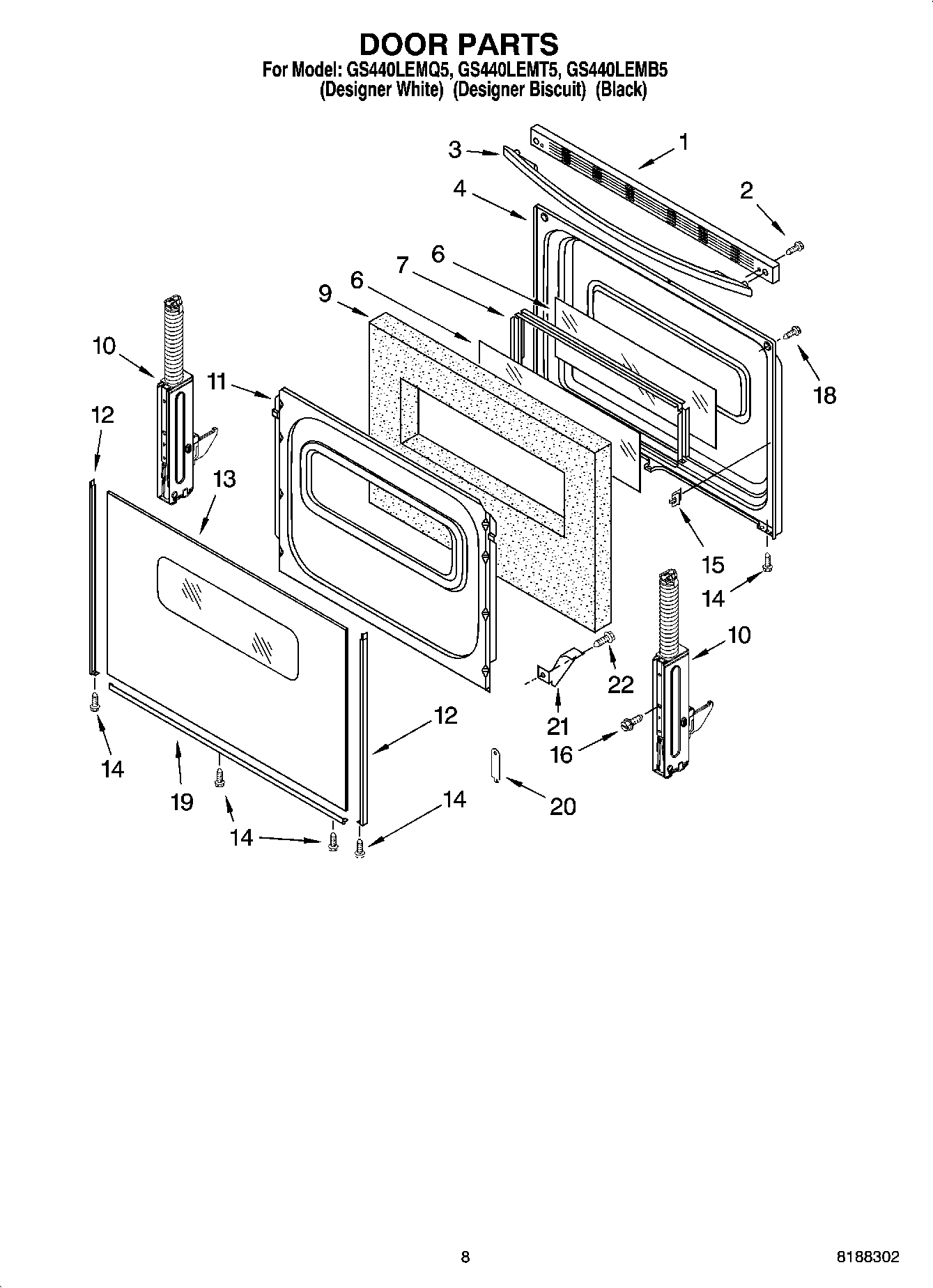

GS440LEMT5 06 – DOOR PARTS, OPTIONAL PARTS
Written by
in
GS440LEMT5 06 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
3196896 Whirlpool Clip
242831 Whirlpool Oven Wire
WPL 8524207
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
Wire (14 Ga. 150 c Green)
3196696 Whirlpool Clip
WPL 9758206
WPL ARI150255A
WPL ARI150256A
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
WPL ARI150254A
Grease
8212471 Whirlpool Oven Paint
8523599 Whirlpool Oven Wire Harness
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
TIE,WIRE
WPL ARI150257A
W11447673 Whirlpool Range Tip Anchor
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WPL ARI150253A
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
WPW10208653 Whirlpool Insulation
WPL ARI150251A
WPL ARI150258A
814381 Whirlpool Pin
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPL ARI150252A
FOIL, ALUMINUM OVEN (18“ X 25 )
1
Trim, Top (Black)
1
Trim, Top (Biscuit)
1
WPW10016370 Whirlpool Door Trim
2
WP3196164 Whirlpool Screw
3
WPW10202216 Whirlpool Door Handle
3
WPW10202217 Whirlpool Door Handle
3
Handle, Door (Biscuit)
4
WP9761344 Whirlpool Door Liner
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
9
WPW10278991 Whirlpool Insulation
10
W10347466 Whirlpool Door Hinge
11
W11539580 Whirlpool Retainer
12
WP8523173 Whirlpool Door Trim
12
WP8523172 Whirlpool Left Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
13
WPW10118454 Whirlpool Door Outer Glass White
13
Glass, Outer (Biscuit)
13
WPW10118455 Whirlpool Door Glass Assembly
14
W10491985 Whirlpool Screw
15
Clip, Glass (4)
16
Screw
18
WP179051 Whirlpool Screw
19
WP8523177 Whirlpool Door Trim Assembly
19
WP8523175 Whirlpool Door Trim Assembly
19
WP8523178 Whirlpool Door Trim
20
9761517 Whirlpool Oven Clip Assembly
21
WP3196794 Whirlpool Glass Bracket
22
WP3196175 Whirlpool Screw
←
