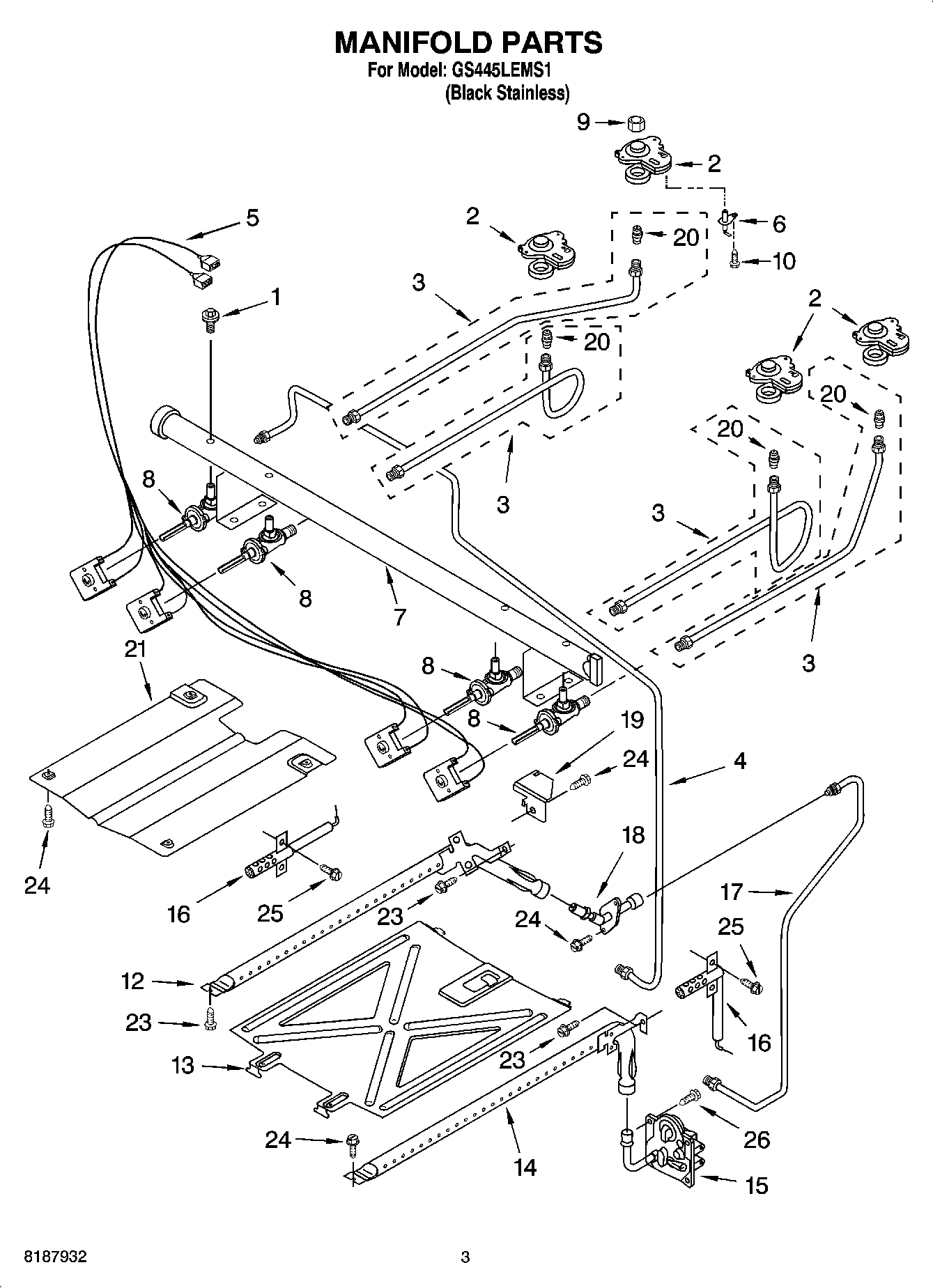

GS445LEMS1 03 – MANIFOLD PARTS

Products

Position	Product
1	WP8273096 Whirlpool Screw
2	WP8273700 Whirlpool Base Burner
3	WP8273692 Whirlpool Gas Tubing
3	Tubing, Burner W/Orifice (Right Rear)
3	Tubing, Burner W/Orifice (Right Front)
3	WP8273694 Whirlpool Gas Tubing
4	Tubing (Manifold to Regulator)
5	WPW10295998 Whirlpool Wire Harness
6	WP8523793 Whirlpool Oven Surface Igniter
7	Pipe, Manifold
8	Valve (Right Rear)
8	WP9757218 Whirlpool Burner Valve
9	Nut (4)
10	WP8273062 Whirlpool Screw
12	WP8054078 Whirlpool Broiler Burner
13	Spreader, Flame (Oven)
14	8190618 Whirlpool Gas Range Oven Burner Assembly with Spark Igniter
15	WPW10293048 Whirlpool Gas Valve
16	WP8054129 Whirlpool Oven Igniter
17	Tubing (Broiler Fitting To Valve)
18	Fitting, Broiler
19	Cover, Igniter
20	WP8273065 Whirlpool Orifice
20	WP8273067 Whirlpool Orifice
21	W10137062 Whirlpool Burner Baffle
23	3196265 Whirlpool Oven Screw
24	SCREW
25	W11684507 Whirlpool Screw
26	WP3400016 Whirlpool Screw Assembly
26	W11234415 Whirlpool Orifice Spud
26	FOLLOWING PARTS NOT ILLUSTRATED
