GS445LEMS1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI70040A4
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL 8316781
WPL ARI70039A3
WPL ARI70038A1
WPL ARI70037A2
WPL ARI70036A3
WPL ARI70043A2
WPL ARI70042A9
WPL ARI70041A5
WPL 8523425
WPL 8524207
8523599 Whirlpool Oven Wire Harness
3196896 Whirlpool Clip
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
350930 Whirlpool White Spray Paint
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
3400964 Whirlpool Oven Clip
814381 Whirlpool Pin
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)

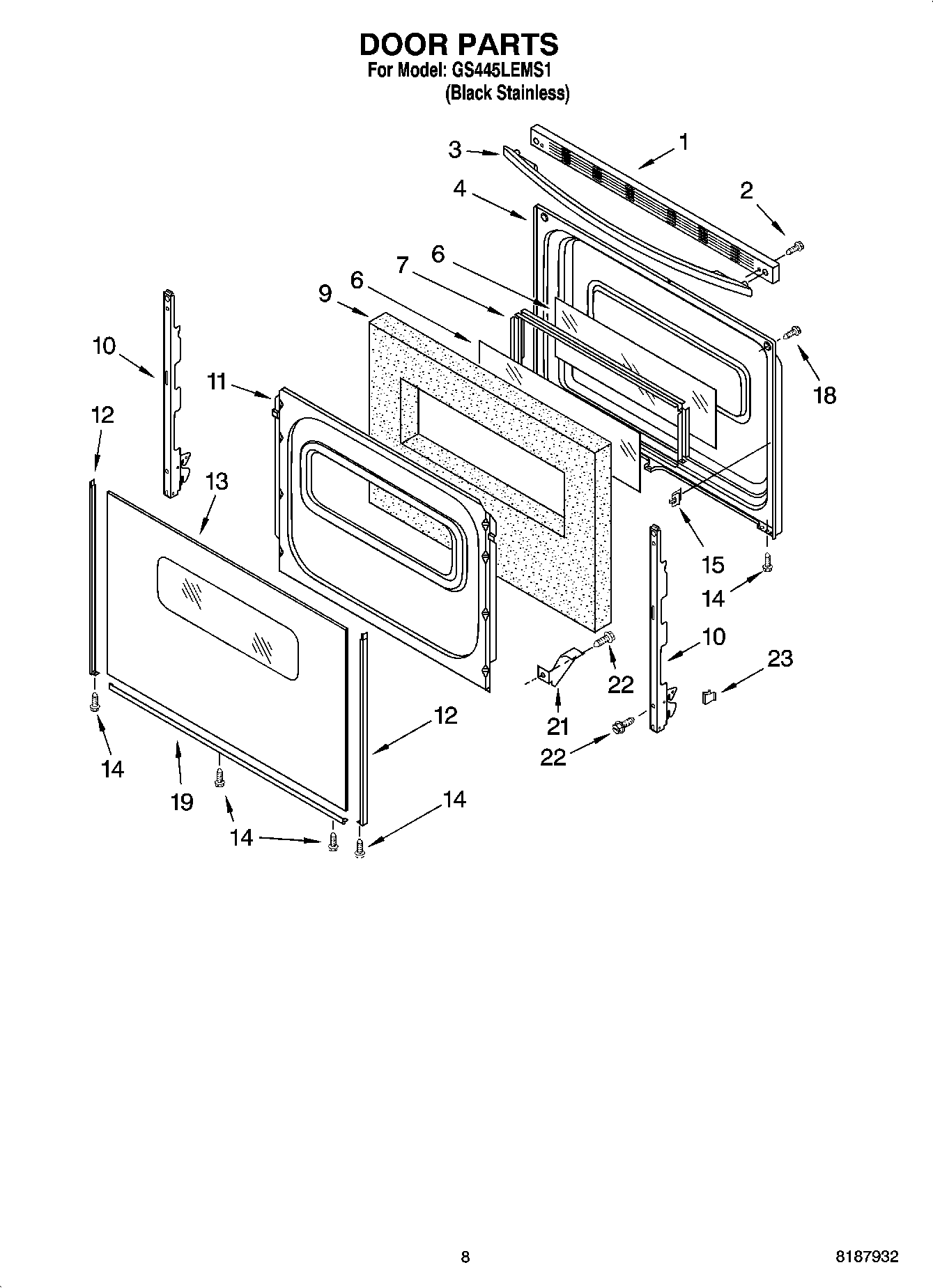

1Trim, Top (Stainless Model)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10Hinge, Door (Stainless Model)
11W11539580 Whirlpool Retainer
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
13Glass, Outer (Stainless Steel)
14W10491985 Whirlpool Screw
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP8523180 Whirlpool Door Trim Assembly
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
23WP3196925 Whirlpool Clip Assembly
