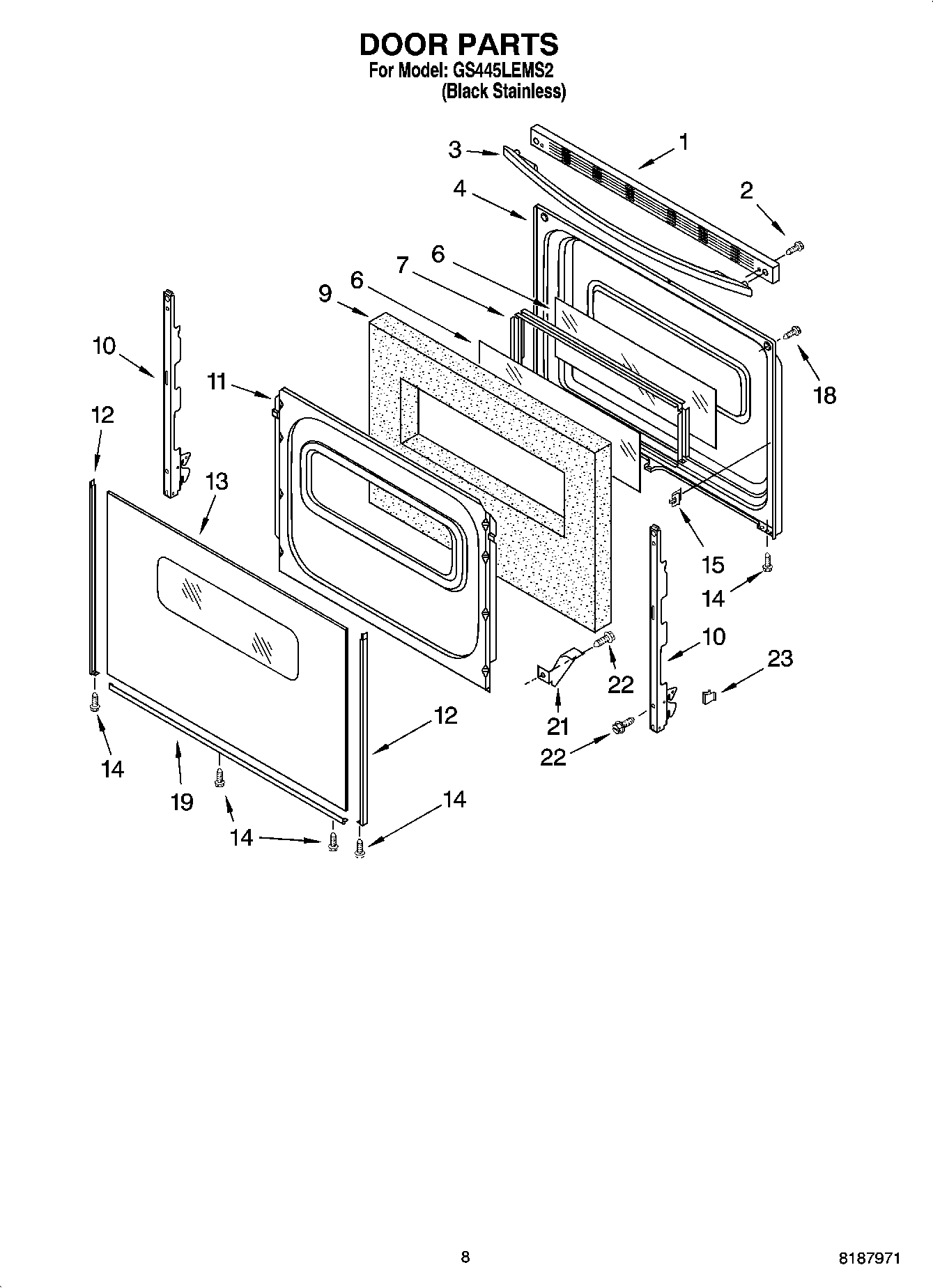

GS445LEMS2 06 – DOOR PARTS, MISCELLANEOUS PARTS

GS445LEMS2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

GS445LEMS2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI70053A6
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	WPL 8316781
	WPL ARI70054A7
	WPL ARI70052A2
	WPL ARI70051A7
	WPL ARI70050A2
	WPL ARI70049A6
	WPL ARI70048A8
	WPL ARI70047A9
	WPL 8523425
	WPL 8524207
	8523599 Whirlpool Oven Wire Harness
	3196896 Whirlpool Clip
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	350942 Whirlpool Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	Almond (Uncut)
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	WPL 799832
1	Trim, Top (Stainless Model)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	Hinge, Door (Stainless Model)
11	W11539580 Whirlpool Retainer
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	Glass, Outer (Stainless Steel)
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP8523180 Whirlpool Door Trim Assembly
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	WP3196925 Whirlpool Clip Assembly
