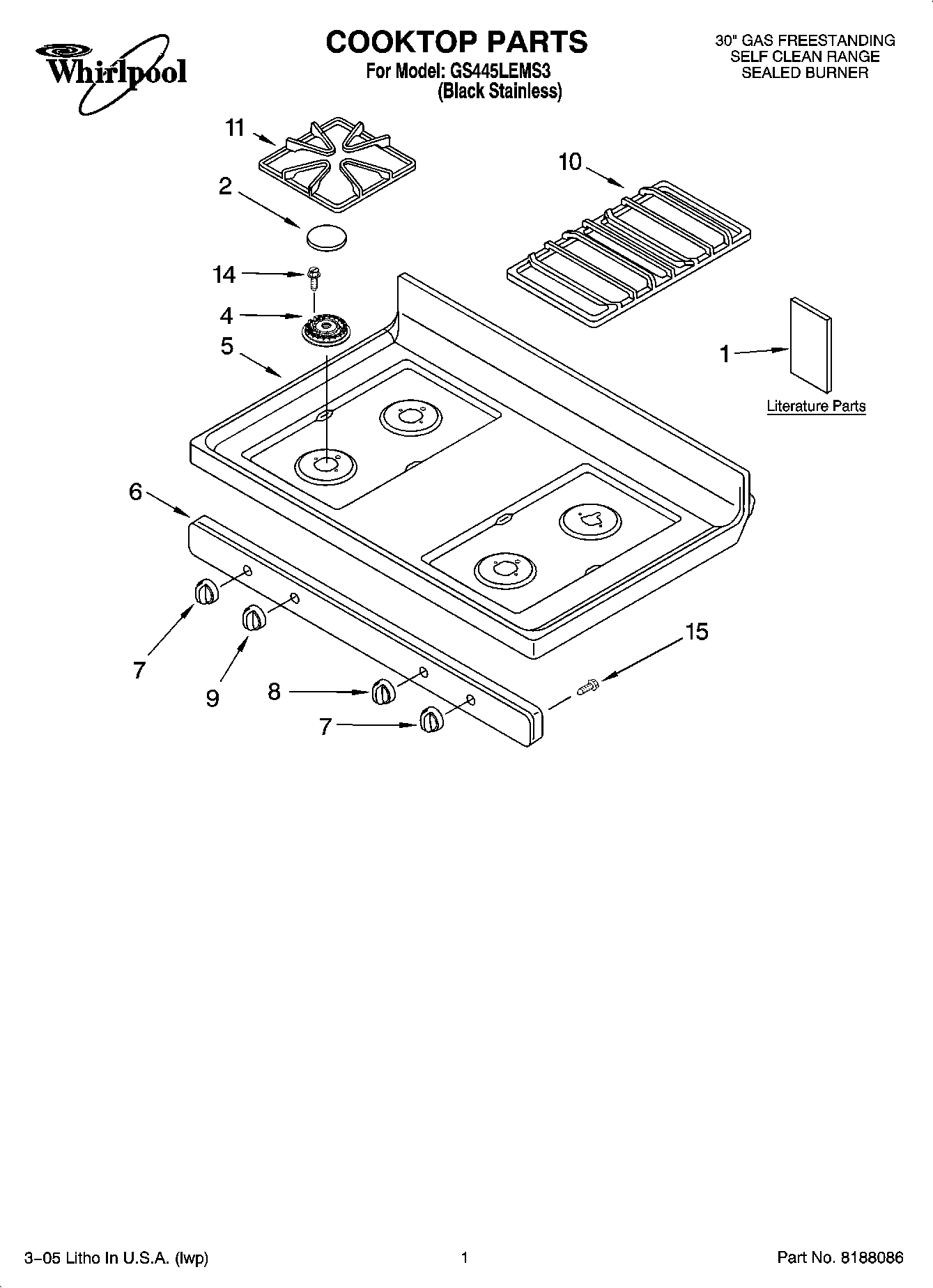

GS445LEMS3 01 – COOKTOP PARTS

GS445LEMS3 01 – COOKTOP PARTS

Written by

in

GS445LEMS3 01 – COOKTOP PARTS

Products

PositionProduct
1Guide, Use & Care
1Tech Sheet
1Instructions, Installation Template, Anti-Tip
1Safe Cooking Tips
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
2WP3191898 Whirlpool Surface Burner Cap Black
2WP3191901 Whirlpool Burner Cap
2WP3191904 Whirlpool Burner Cap
4WP4455981 Whirlpool Burner Head
4WP4455980 Whirlpool Burner Head
4WP4455979 Whirlpool Range Small Burner Head
5W11213958 Whirlpool Oven Cooktop
68523855 Whirlpool Oven Manifold Panel
7Knob, Control (2)
8Knob, Accusimmer
9Knob, Powerburner
10Grate, Center
11WPW10447925 Whirlpool Grate Kit
14WP3368921 Whirlpool Screw
15WP3196557 Whirlpool Screw
