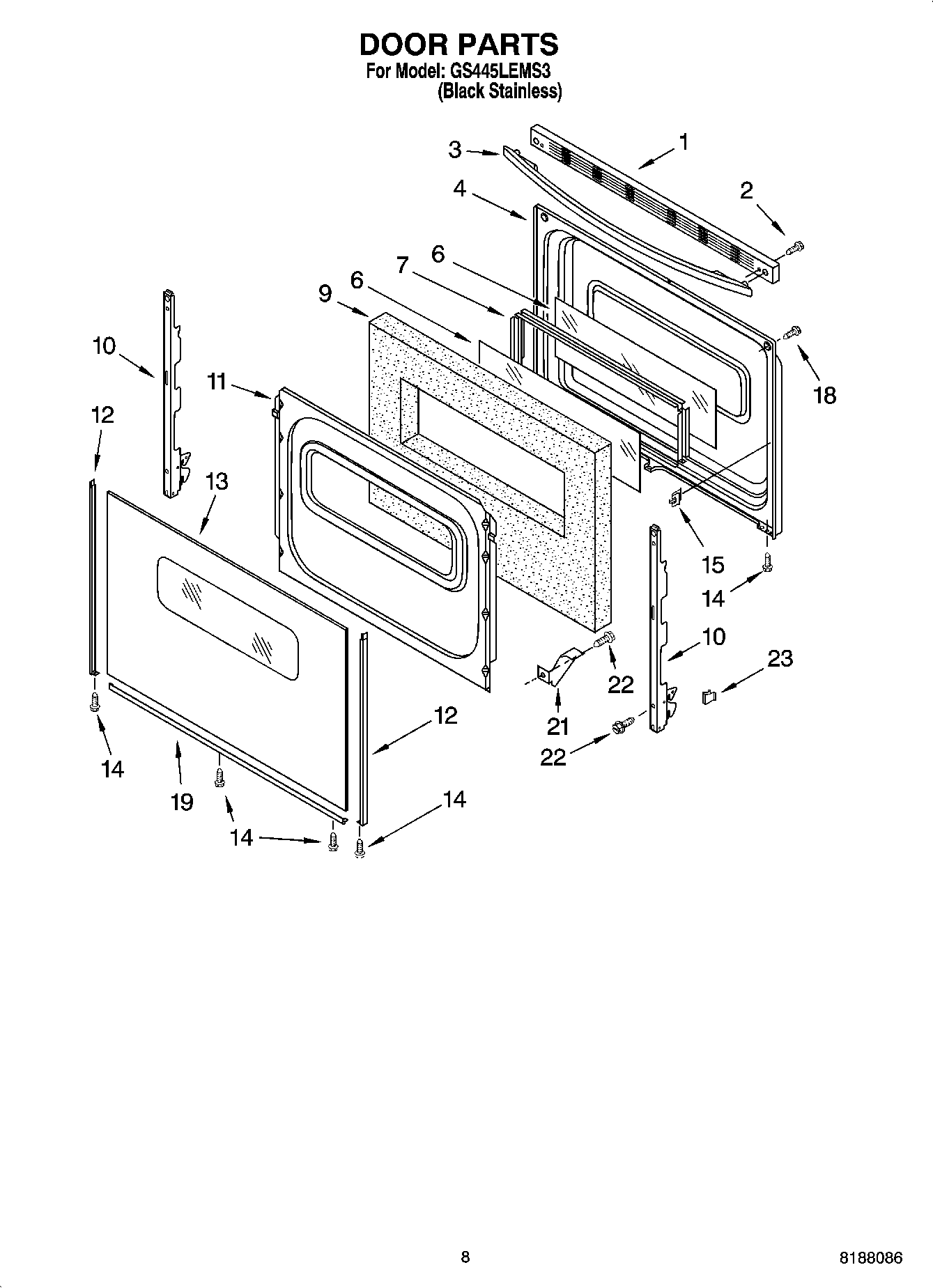

GS445LEMS3 06 – DOOR PARTS, OPTIONAL PARTS

GS445LEMS3 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

GS445LEMS3 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI70058A8
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	3196696 Whirlpool Clip
	3196896 Whirlpool Clip
	8523599 Whirlpool Oven Wire Harness
	WPL ARI70057A5
	WPL ARI70064A6
	WPL ARI70063A4
	WPL ARI70062A6
	WPL ARI70061A3
	WPL ARI70060A3
	WPL ARI70059A7
	WPL 9758206
	WPL 8524207
	TIE,WIRE
	3400964 Whirlpool Oven Clip
	Grease
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	W11447673 Whirlpool Range Tip Anchor
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Wire, 25` Roll (Red 14 Ga.)
	WPW10208653 Whirlpool Insulation
	814381 Whirlpool Pin
1	Trim, Top (Stainless Model)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	Hinge, Door (Stainless Model)
11	W11539580 Whirlpool Retainer
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	Glass, Outer (Stainless Steel)
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP8523180 Whirlpool Door Trim Assembly
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	WP3196925 Whirlpool Clip Assembly
