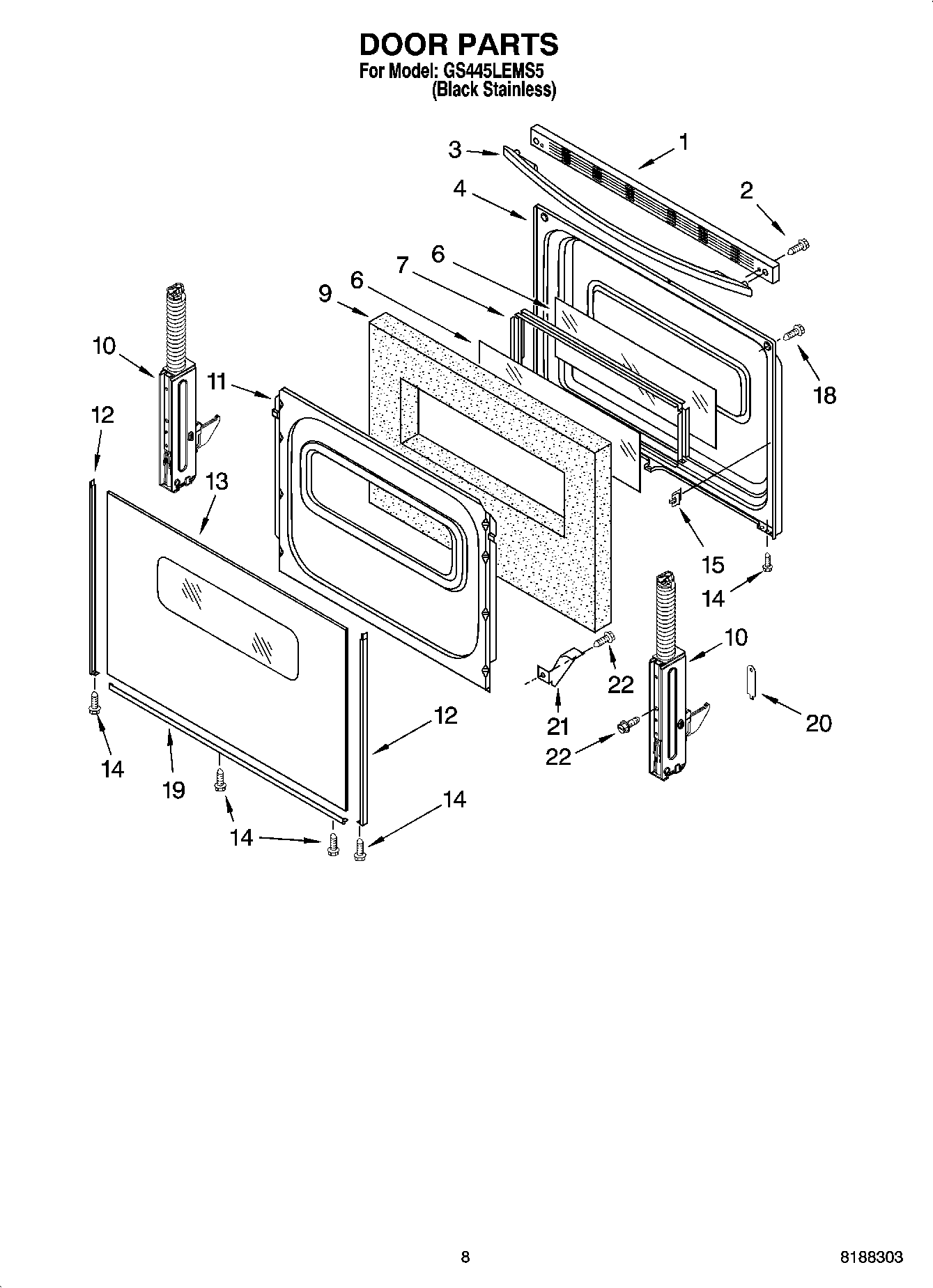

GS445LEMS5 06 – DOOR PARTS, OPTIONAL PARTS

GS445LEMS5 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

GS445LEMS5 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI70086A6
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Grease
	3196896 Whirlpool Clip
	8523599 Whirlpool Oven Wire Harness
	WPL ARI70085A4
	WPL ARI70084A5
	WPL ARI70083A2
	WPL ARI70082A8
	WPL ARI70081A9
	WPL ARI70080A7
	WPL ARI70079A4
	WPL 9758206
	WPL 8524207
	TIE,WIRE
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	W11447673 Whirlpool Range Tip Anchor
1	Trim, Top (Black and S.Steel Models)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	W10347464 Whirlpool Door Hinge
11	W11539580 Whirlpool Retainer
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
13	Glass, Outer (Stainless Steel)
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP8523180 Whirlpool Door Trim Assembly
20	9761517 Whirlpool Oven Clip Assembly
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
