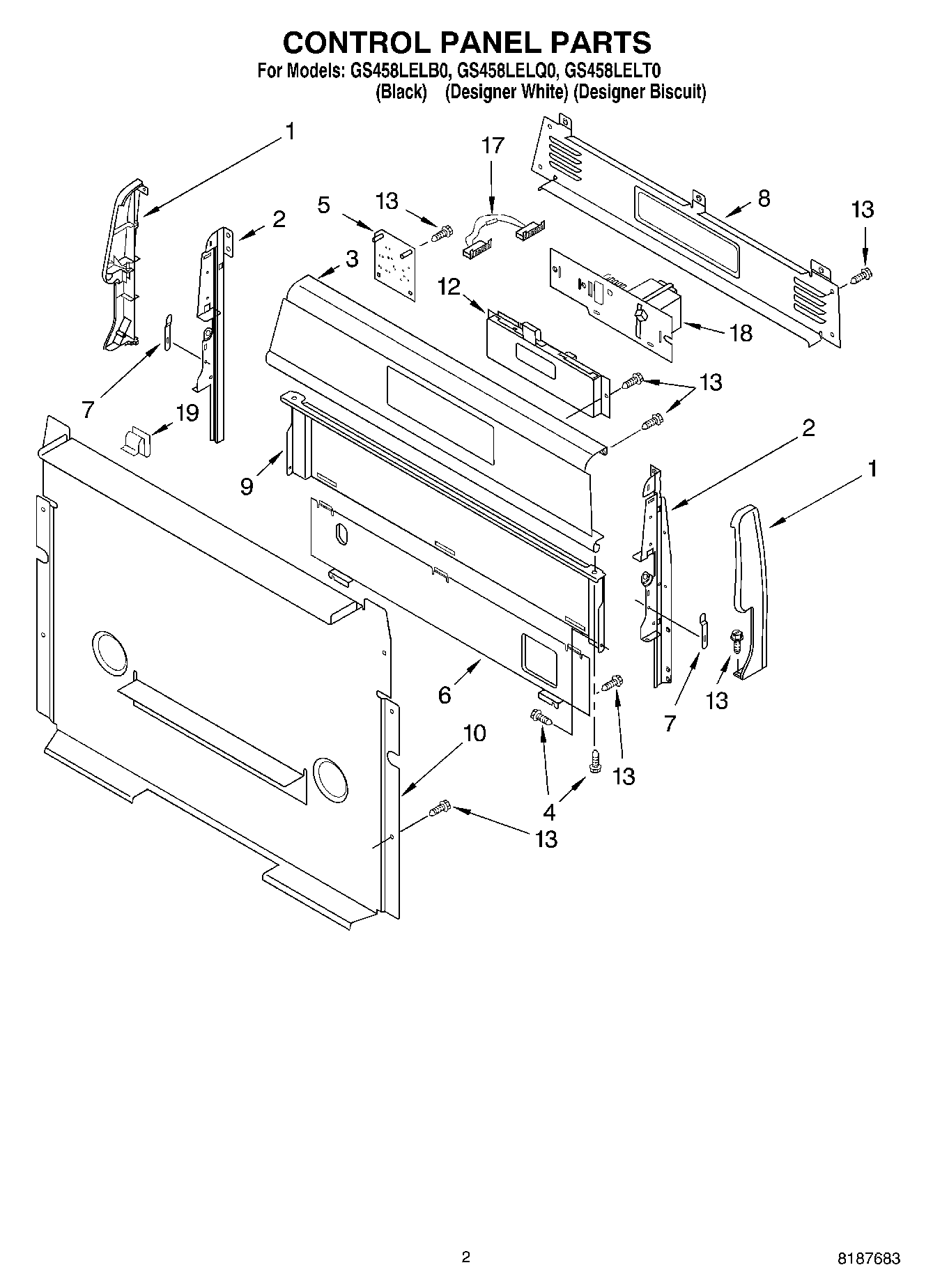

GS458LELB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
1	Endcap (Biscuit Left Hand)
1	Endcap (Biscuit Right Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Control (Black)
3	Panel, Control (Biscuit)
3	Panel, Control (White)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
12	Control, Range (Biscuit)
12	Control, Range
12	Control, Range (Black)
13	SCREW
17	Jumper W/Fuse
18	Power Supply, PCA
19	WP8273564 Whirlpool Clip
