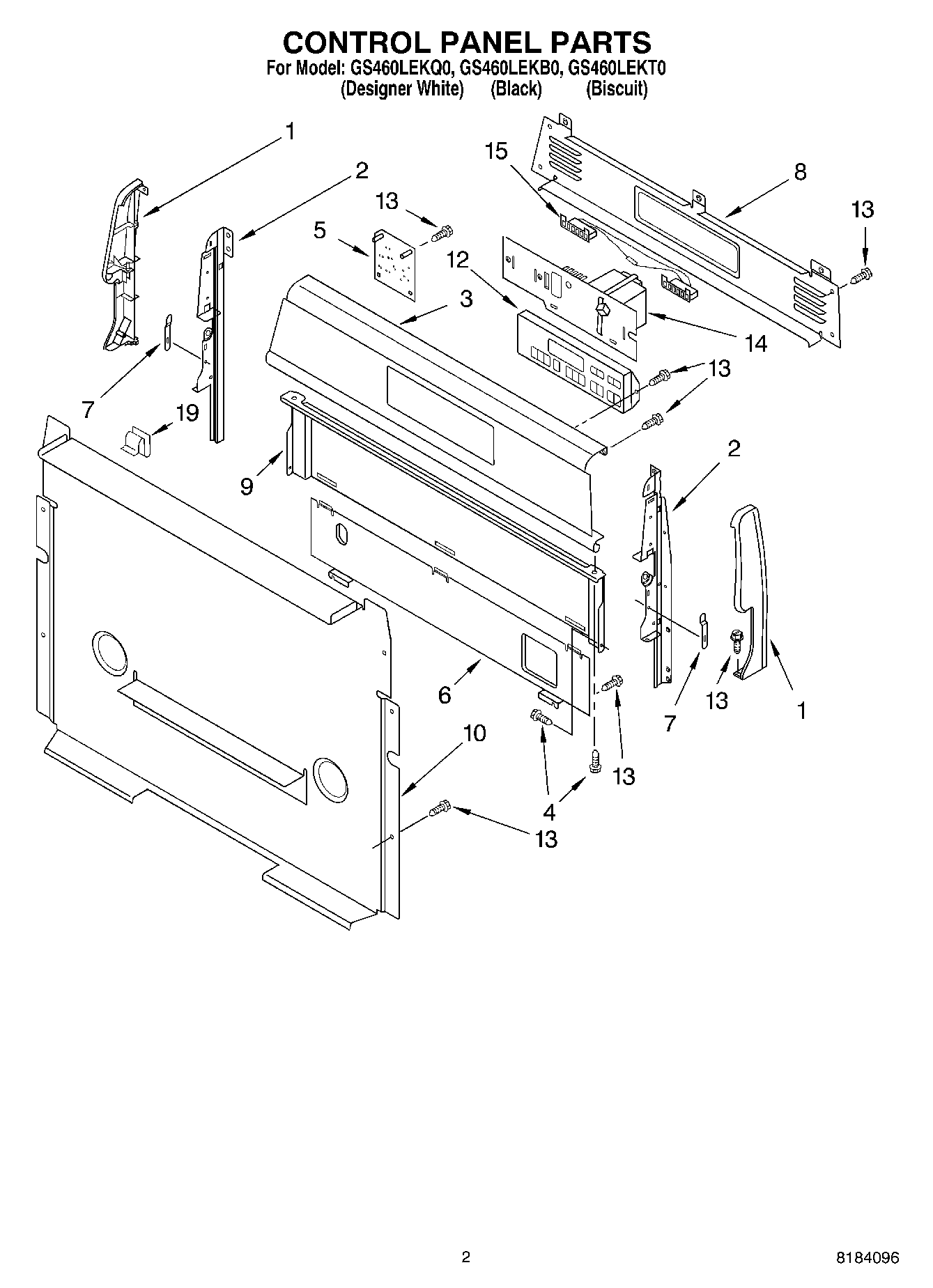

GS460LEKB0 02 – CONTROL PANEL

GS460LEKB0 02 – CONTROL PANEL

Written by

in

GS460LEKB0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Control (Biscuit)
3Panel, Control
3Panel, Control (Black)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (White)
12Control, Range (Biscuit)
12Control, Range
13SCREW
14Power Supply, PCA
15Jumper W/Fuse
19WP8273564 Whirlpool Clip
