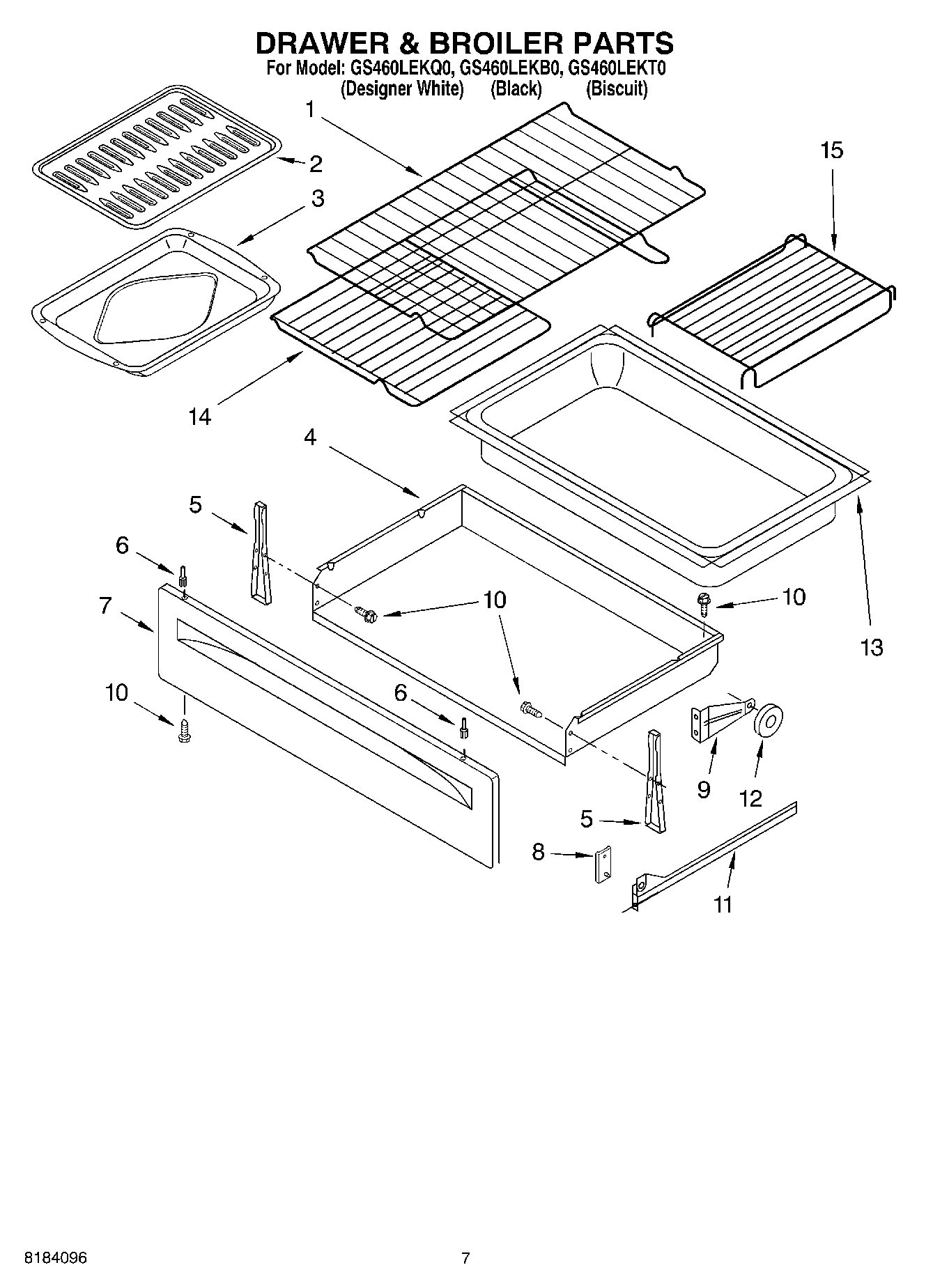

GS460LEKQ0 05 – DRAWER & BROILER

GS460LEKQ0 05 – DRAWER & BROILER

Written by

in

GS460LEKQ0 05 – DRAWER & BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5BRKT-MNTG
6WP3196813 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
7PANEL, DRAWER FRONT (BISCUIT)
8Spacer, Glide
9Bracket, Roller
10WP3400832 Whirlpool Screw
11Rail, Drawer (Right Hand)
11Rail, Drawer (Left Hand)
12814229 Whirlpool Primary Roller
13Liner, Drawer
14WP8274021 Whirlpool Oven Rack
15WP8274022 Whirlpool Oven Rack
