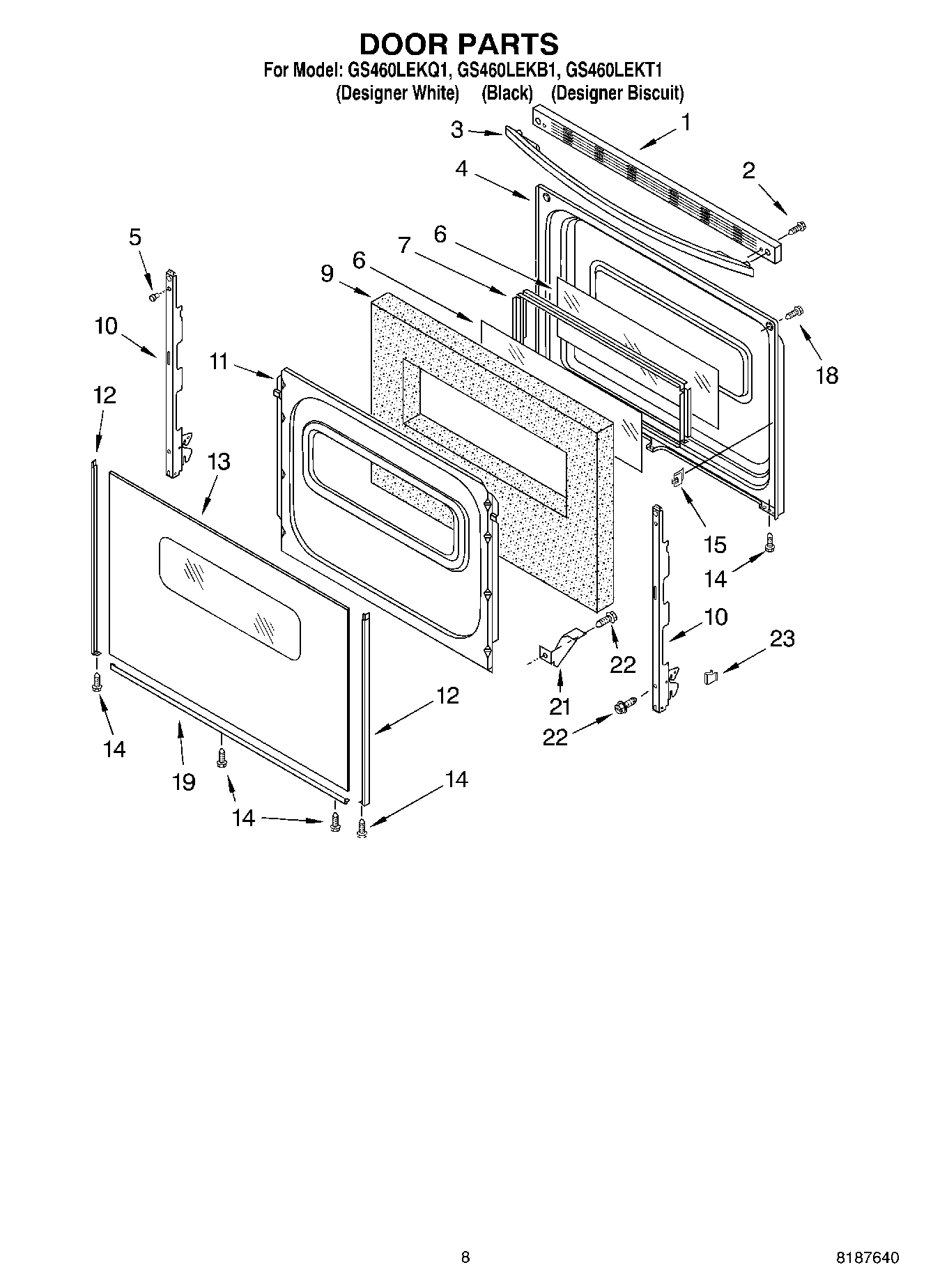

GS460LEKQ1 06 – DOOR, OPTIONAL

GS460LEKQ1 06 – DOOR, OPTIONAL

Written by

in

GS460LEKQ1 06 – DOOR, OPTIONAL

Products

Position	Product
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	238614 Whirlpool Bumper Hinge
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	Hinge, Door
11	W11539580 Whirlpool Retainer
12	8184860 Whirlpool Oven Door Trim
13	WPW10118455 Whirlpool Door Glass Assembly
13	Glass, Outer Door (Biscuit)
13	WP8053834 Whirlpool Door Glass
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	8184858 Whirlpool Door Trim
19	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	8212471 Whirlpool Oven Paint
23	3196696 Whirlpool Clip
23	Grease
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	WPL 8522613
23	WPL 8273901
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	WPL 8274195
23	WPL 8053527
23	3196896 Whirlpool Clip
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	350930 Whirlpool White Spray Paint
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	511873 Whirlpool Refrigerator Paint
23	4392901 Whirlpool Biscuit Spray Paint
23	350942 Whirlpool Spray Paint
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	16515 Whirlpool Clip
23	3400964 Whirlpool Oven Clip
23	WP3196925 Whirlpool Clip Assembly
23	814381 Whirlpool Pin
23	285006 Whirlpool Spray
23	350956 Whirlpool Spray Assembly
