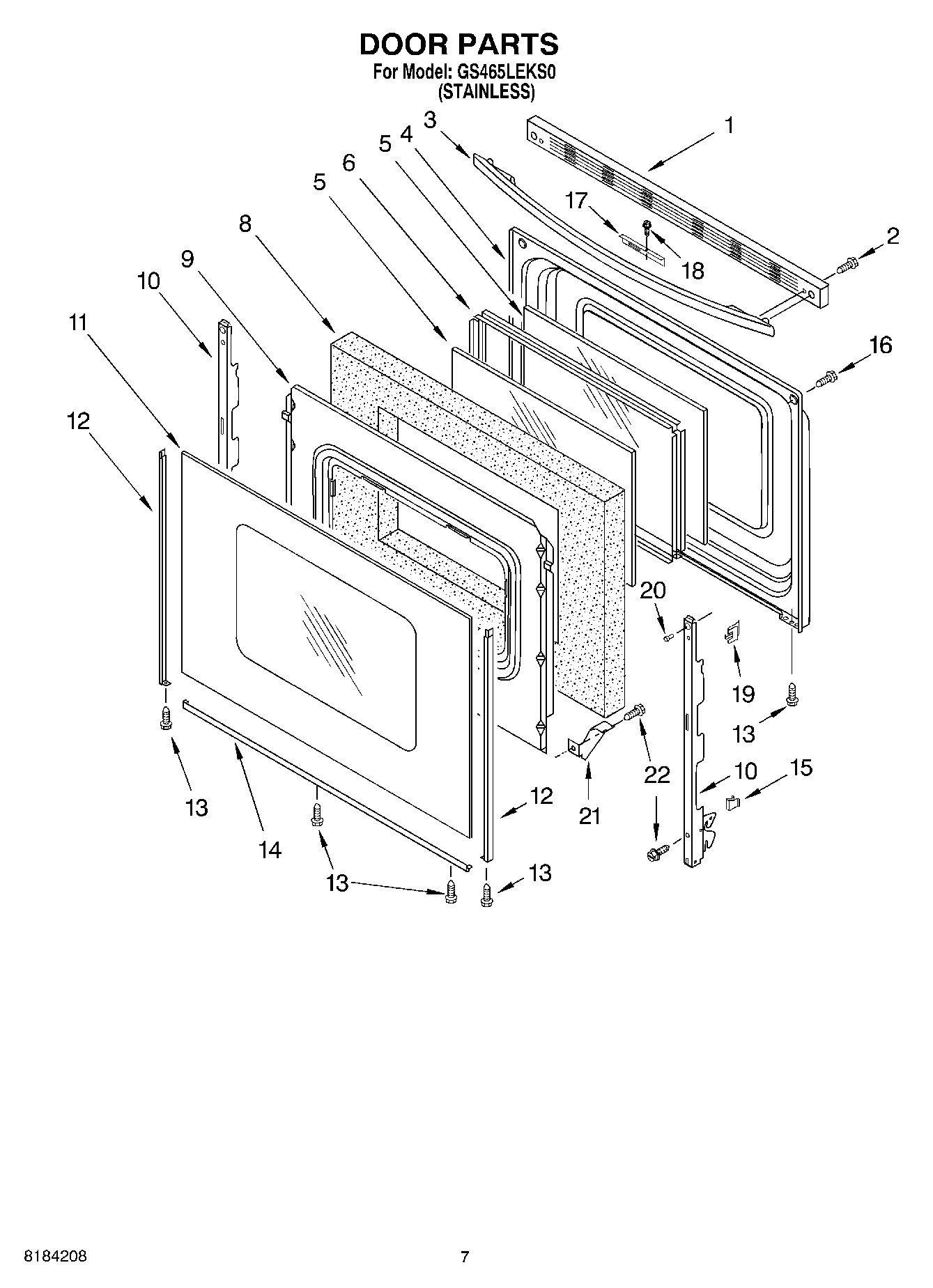

GS465LEKS0 05 – DOOR

Products

Position	Product
1	Trim, Top (Stainless Model)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WP8053948 Whirlpool Door Glass
6	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	Hinge, Door
11	WPW10330077 Whirlpool Door Glass
12	8184858 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
15	WP3196925 Whirlpool Clip Assembly
16	WP179051 Whirlpool Screw
17	Bracket, Latch
18	WP3400832 Whirlpool Screw
19	Clip, Glass (4)
20	238614 Whirlpool Bumper Hinge
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
