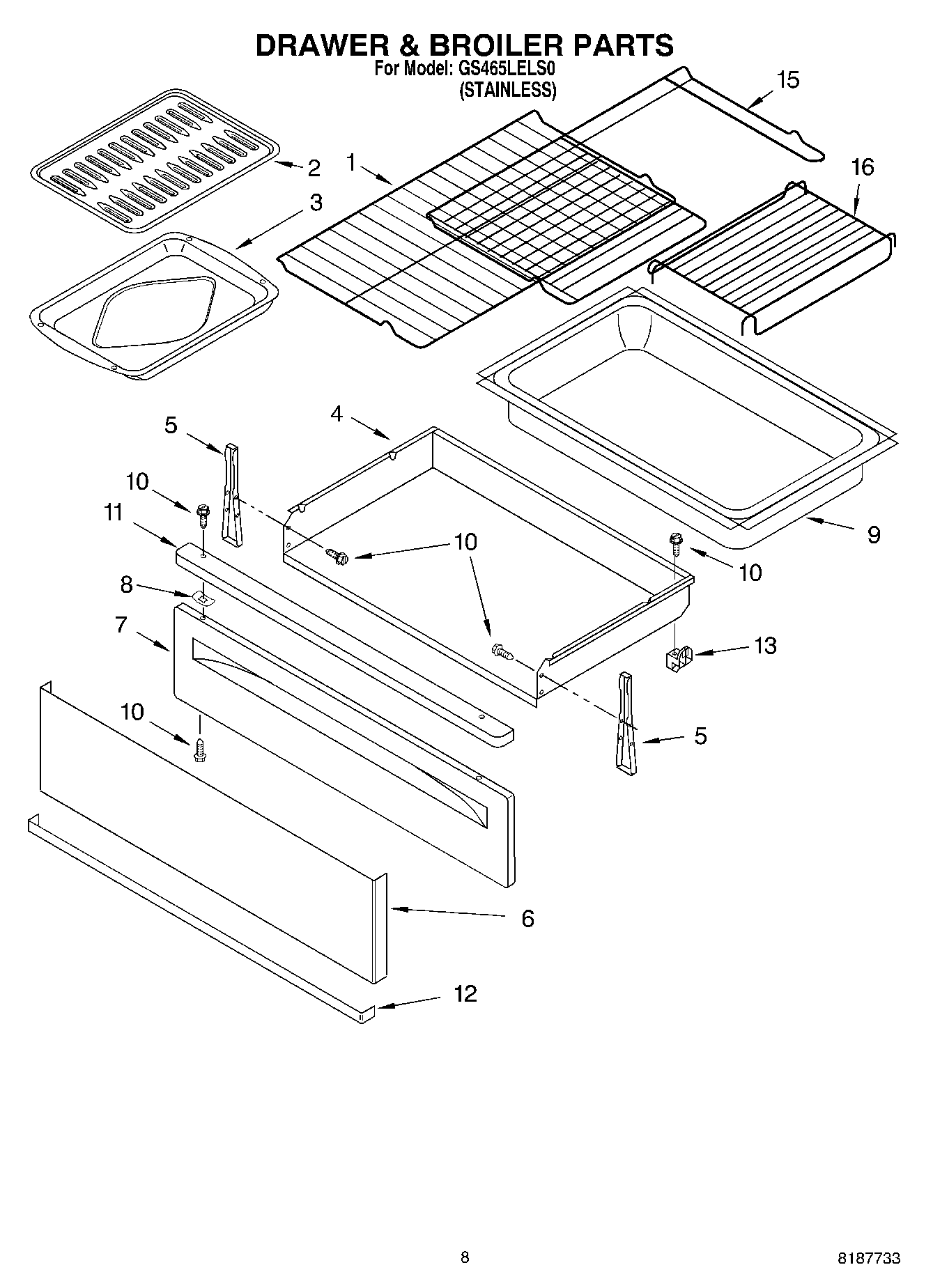

GS465LELS0 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI70098A1
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	3196896 Whirlpool Clip
	8523599 Whirlpool Oven Wire Harness
	WPL ARI70097A7
	WPL ARI70096A8
	WPL ARI70095A1
	WPL ARI70094A5
	WPL ARI70093A7
	WPL ARI70092A3
	WPL 8523427
	WPL ARI70099A2
	WPL 8524207
	TIE,WIRE
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire, 25` Roll (Black 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	3400964 Whirlpool Oven Clip
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire, 25“ Roll (White 14 GA.)
	285006 Whirlpool Spray
	16515 Whirlpool Clip
	814381 Whirlpool Pin
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	BRKT-MNTG
6	Panel, Stainless
7	W11230490 Whirlpool Drawer Panel
8	WP9781235 Whirlpool Clip
9	Liner, Drawer
10	WP3400832 Whirlpool Screw
11	WPL 8053949
12	Bottom, Drawer
13	WP8053334 Whirlpool Drawer Glide
15	WP8274021 Whirlpool Oven Rack
16	WP8274022 Whirlpool Oven Rack
