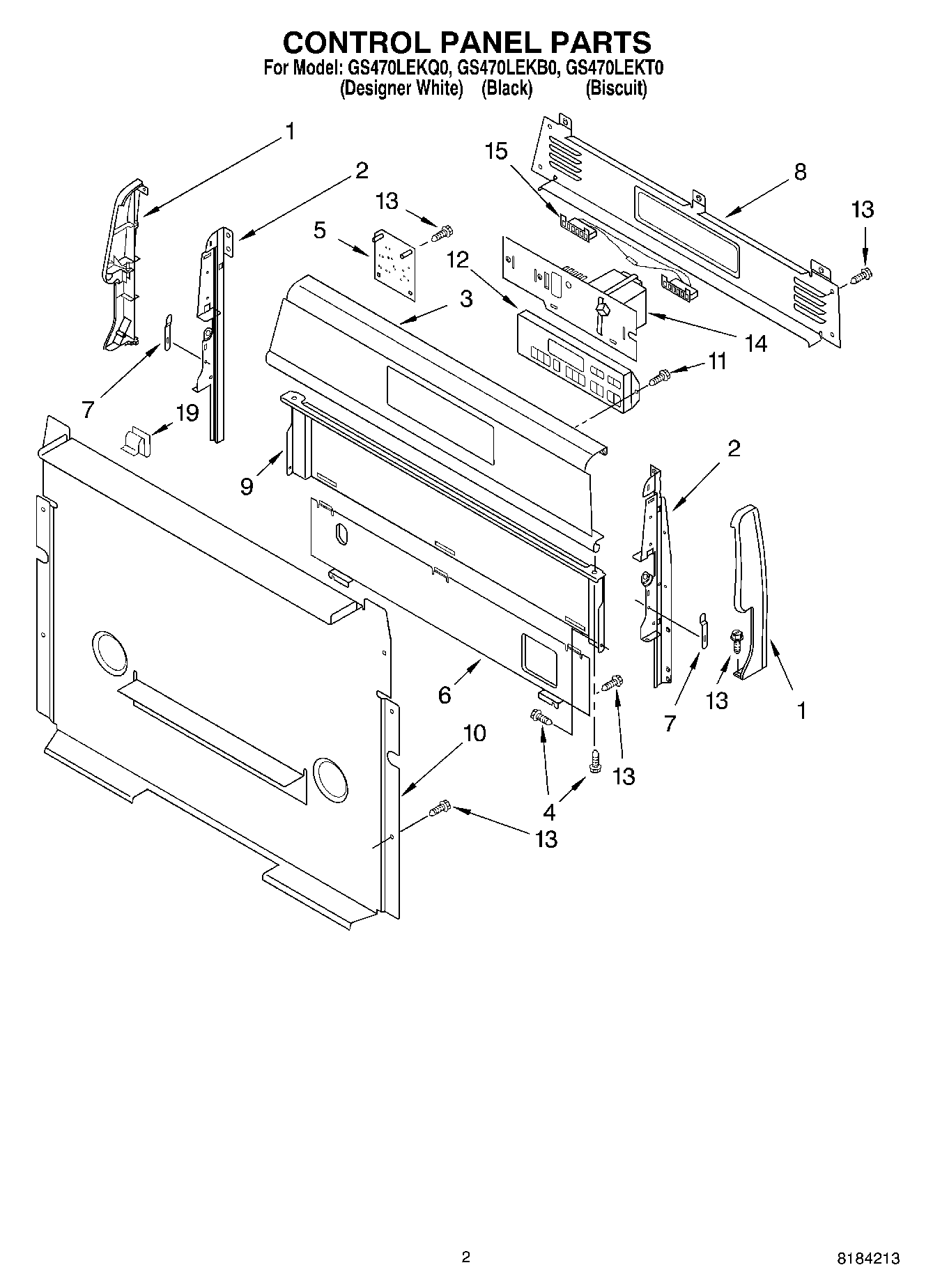

GS470LEKQ0 02 – CONTROL PANEL PARTS

GS470LEKQ0 02 – CONTROL PANEL PARTS

Written by

in

GS470LEKQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Control
3Panel, Control (Biscuit)
3Panel, Control (Black)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP3196170 Whirlpool Screw
12Control, Range (White)
12Control, Range (Biscuit)
12Control, Range (Black)
13SCREW
14Power Supply, PCA
15Jumper W/Fuse
19WP8273564 Whirlpool Clip
