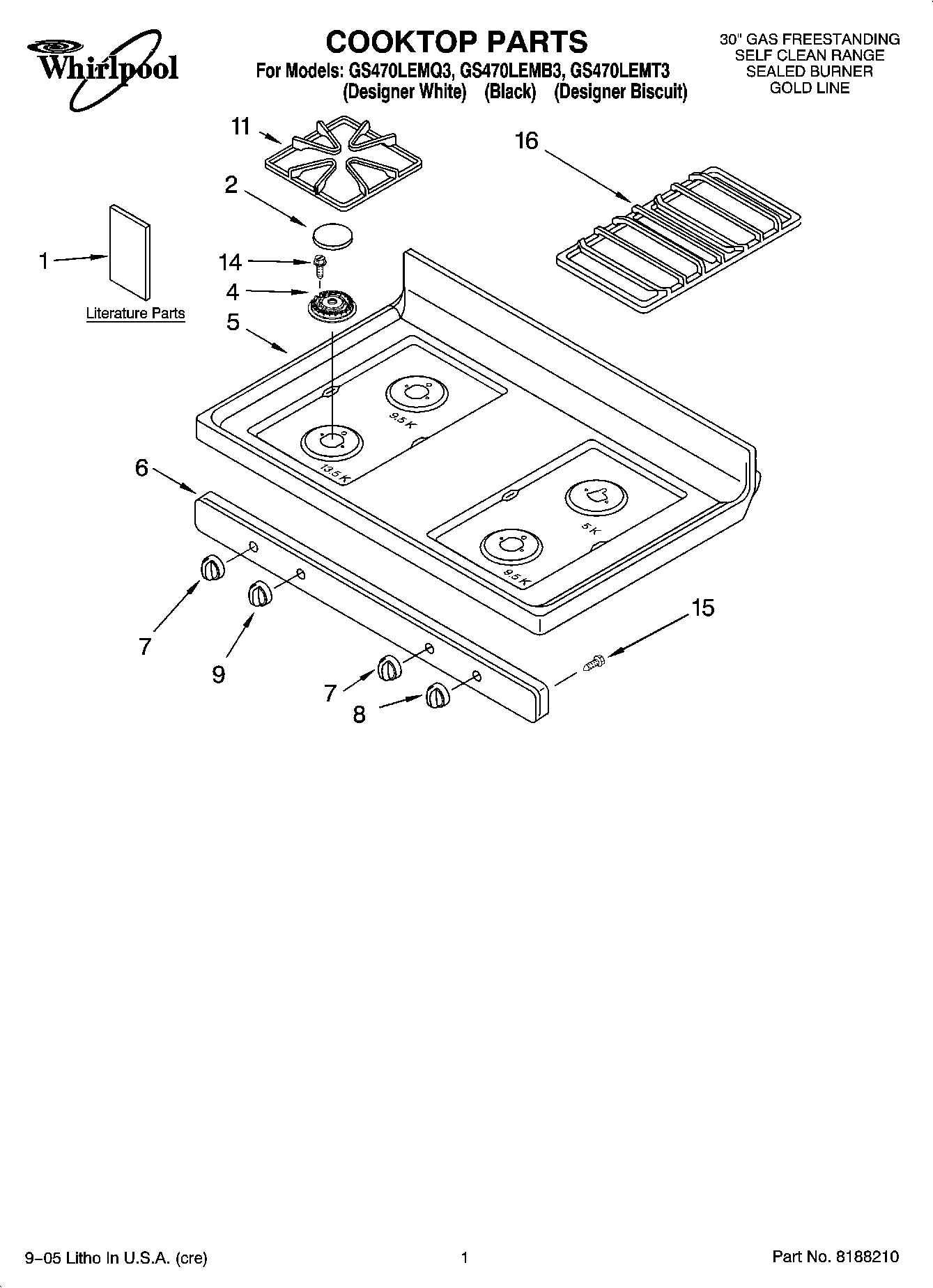

GS470LEMB3 01 – COOKTOP PARTS

Products

Position	Product
1	Owner`s Manual
1	Installation Instructions Anti-Tip Template
1	Tech Sheet
1	Safe Cooking Tips
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
2	WP8273345 Whirlpool Burner Cap
2	WP8273344 Whirlpool Burner Cap
2	WP8273343 Whirlpool Burner Cap
2	WP3191898 Whirlpool Surface Burner Cap Black
2	WP3191905 Whirlpool Burner Cap
2	Cap, Burner 6K (1) (Gray)
2	WP3191903 Whirlpool Burner Cap
2	WP3191901 Whirlpool Burner Cap
4	WP4455981 Whirlpool Burner Head
4	WP4455979 Whirlpool Range Small Burner Head
4	WP4455980 Whirlpool Burner Head
5	W11213958 Whirlpool Oven Cooktop
5	W11213959 Whirlpool Cooktop
5	8195546 Whirlpool Oven Cooktop O/S2
6	Panel, Manifold (Biscuit)
6	8523855 Whirlpool Oven Manifold Panel
6	WP8523854 Whirlpool Manifold Panel
7	Knob, Control (2)
7	Knob, Control (3) (Biscuit)
7	W11242931 Whirlpool Knob
8	Knob, Powerburner (Biscuit)
8	Knob, Accusimmer
9	8522625 Whirlpool Oven Knob
9	Knob, Accusimmer (Biscuit)
9	Knob, Powerburner
11	WPW10447925 Whirlpool Grate Kit
11	Grate (4) (Espresso)
14	WP3368921 Whirlpool Screw
15	WP3196557 Whirlpool Screw
16	Grate, Center
16	Grate, Center (Espresso)
16	Grate, Center (Grey)
