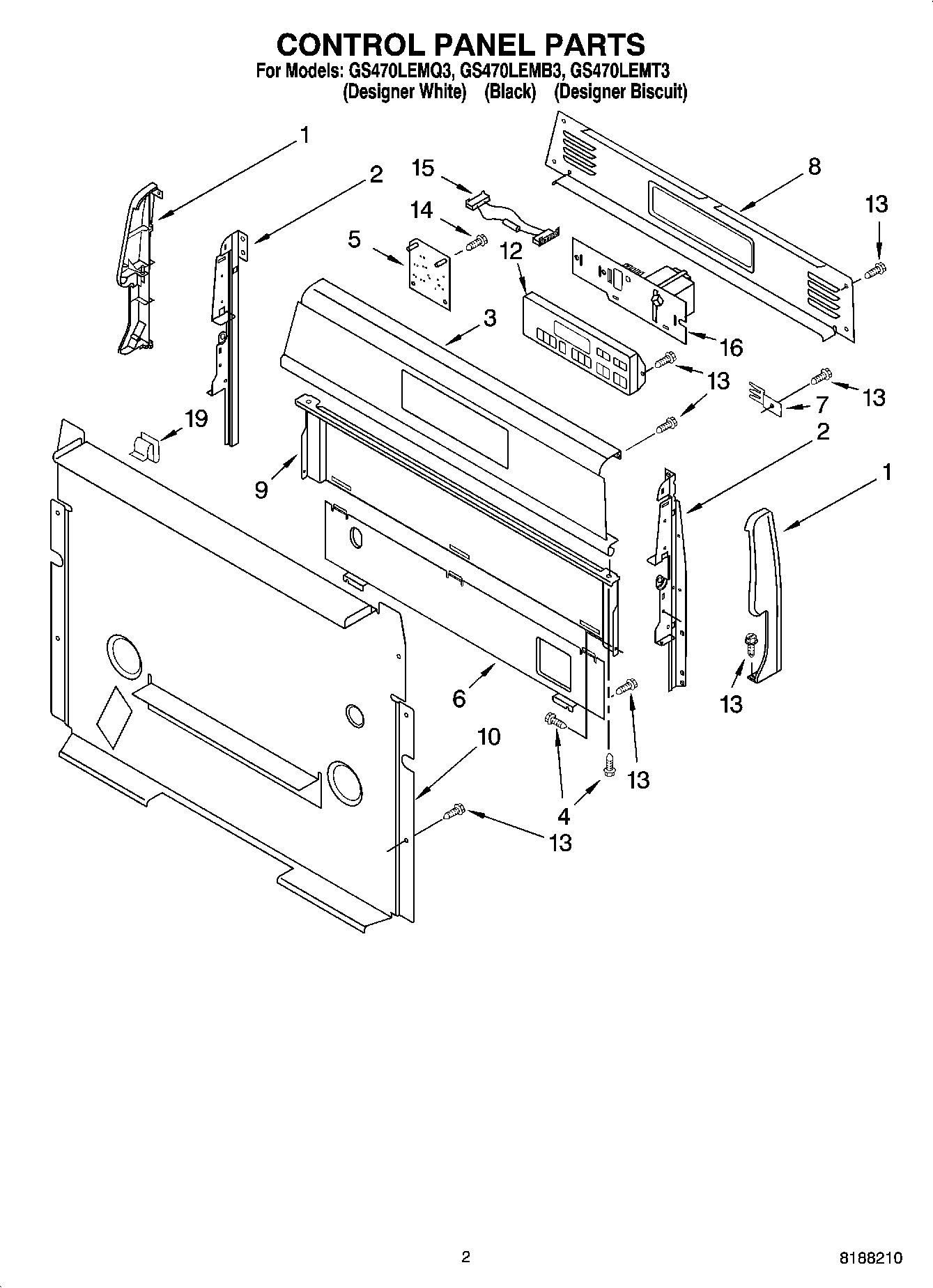

GS470LEMB3 02 – CONTROL PANEL PARTS

GS470LEMB3 02 – CONTROL PANEL PARTS

Written by

in

GS470LEMB3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Control (Biscuit)
3Panel, Control (White)
3Panel, Control (Black)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Biscuit)
13WP3196557 Whirlpool Screw
14WP3196170 Whirlpool Screw
15Jumper W/Fuse
16Power Supply, PCA
19WP8273564 Whirlpool Clip
