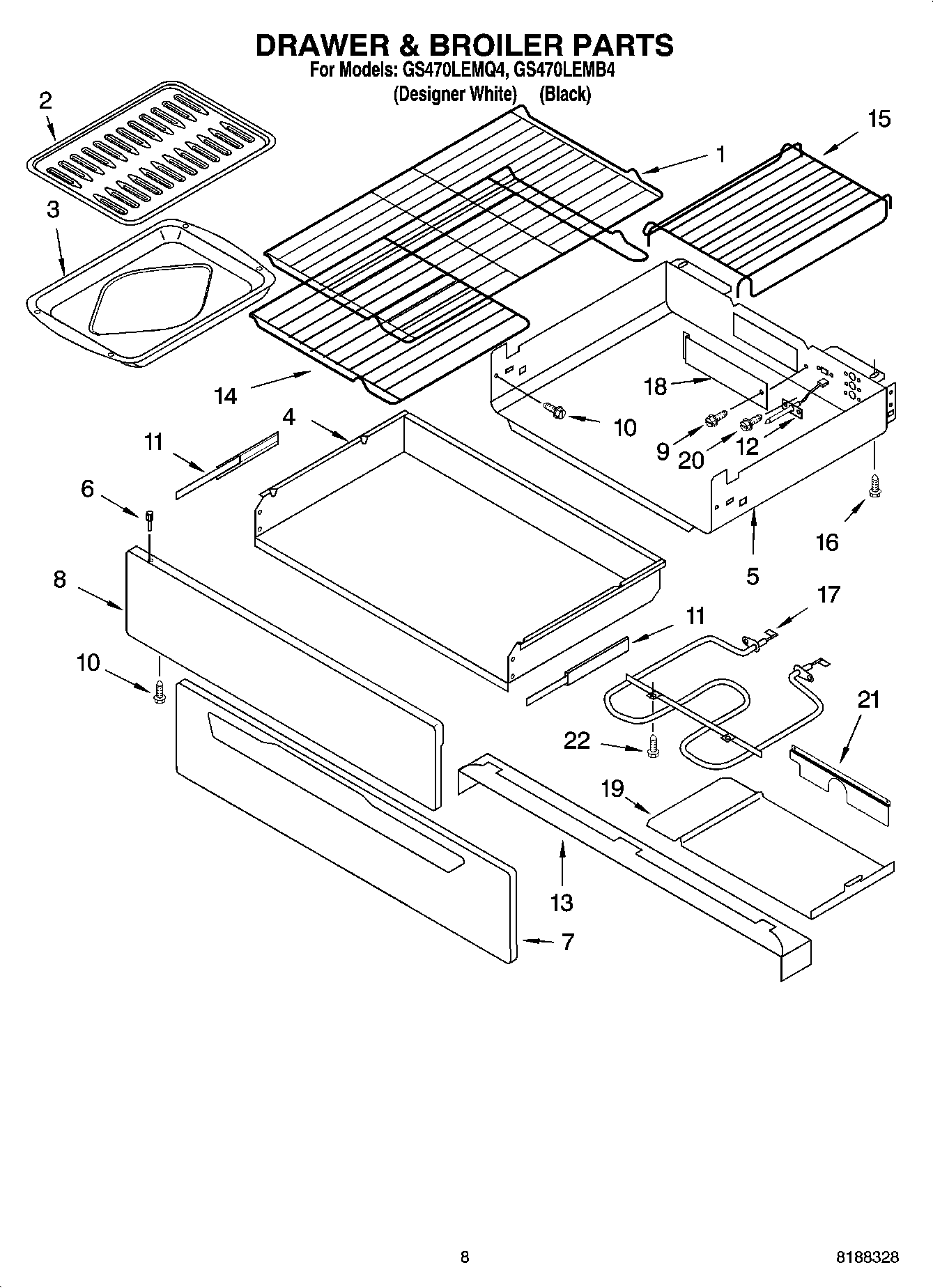

GS470LEMB4 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

GS470LEMB4 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

GS470LEMB4 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI70120A3
Grease
3196696 Whirlpool Clip
WPL 786032
WPL 786020
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
3196896 Whirlpool Clip
8523599 Whirlpool Oven Wire Harness
TIE,WIRE
WPL ARI70119A2
WPL ARI70118A4
WPL ARI70117A9
WPL ARI70116A4
WPL ARI70115A2
WPL ARI70114A1
WPL 9758531
WPL 9758211
8183759 Whirlpool Oven Grate Pad
WPL ARI70121A9
WPL 8524207
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
72032 Whirlpool Touch Up Paint Black
4392899 Whirlpool Biscuit Touch-Up Paint
285006 Whirlpool Spray
4392901 Whirlpool Biscuit Spray Paint
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
814381 Whirlpool Pin
W11447673 Whirlpool Range Tip Anchor
799344 Whirlpool Refrigerator Paint
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
3400964 Whirlpool Oven Clip
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
5Enclosure, Drawer
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
8Panel, Inner
9WPY706189 Whirlpool Stove Screw
10WP3400832 Whirlpool Screw
11Slide, Drawer (Left Hand)
11Slide, Drawer (Right Hand)
12WP8274149 Whirlpool Sensor Assembly
13Shield, Drawer
14WP8274021 Whirlpool Oven Rack
15WP8274022 Whirlpool Oven Rack
16SCREW
17Element, Warming
18Cover, Access
19Baffle, Radiant
20WP3196170 Whirlpool Screw
21Cover, Element
22WP3196174 Whirlpool Screw
