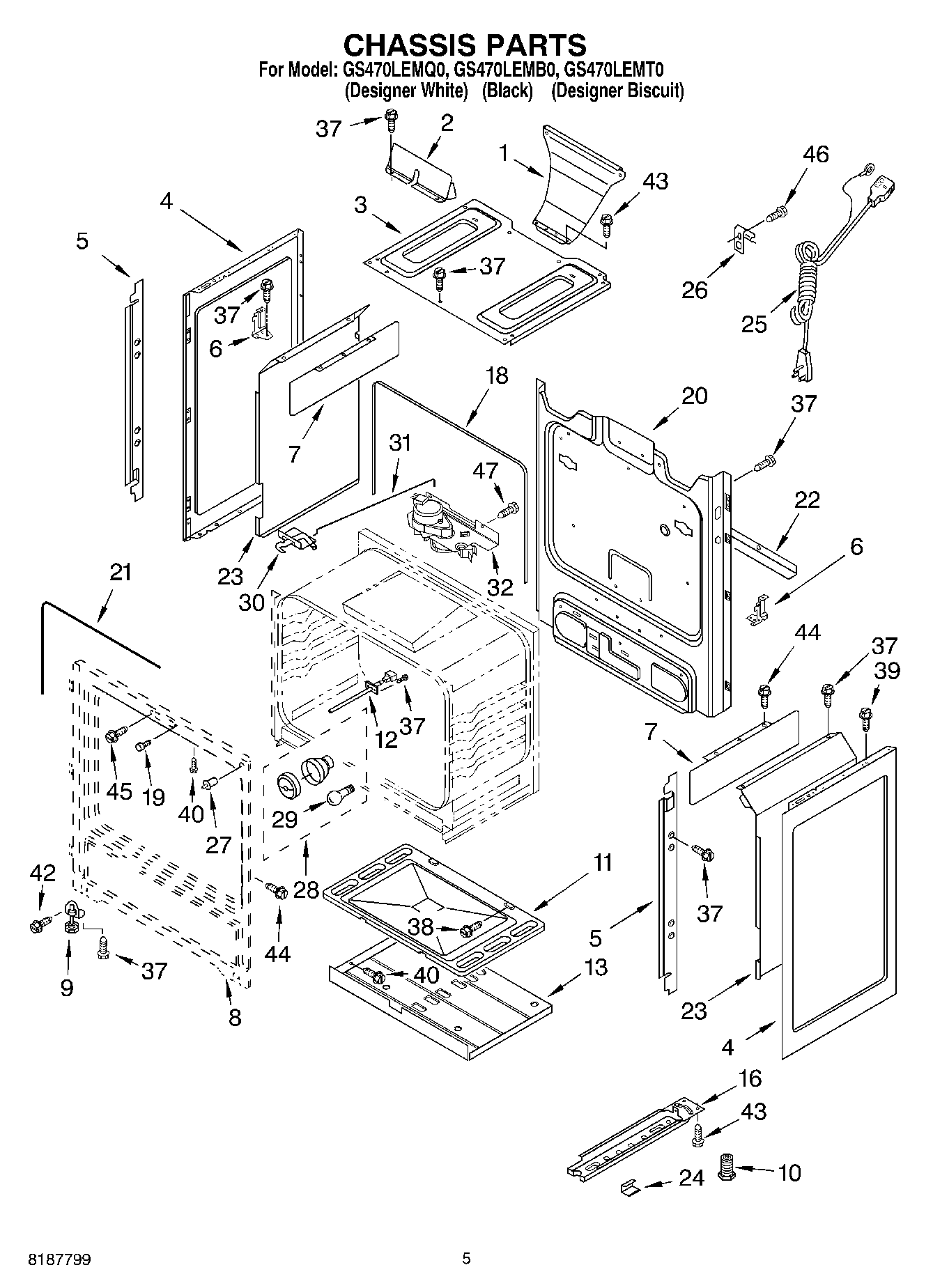

GS470LEMQ0 04 – CHASSIS PARTSadmin2025-04-26T12:27:27+00:00GS470LEMQ0 04 – CHASSIS PARTS ProductsPositionProduct1W11457094 Whirlpool Oven Flue2WP8272747 Whirlpool Heat Shield3W11379351 Whirlpool Burner Box4W11730303 Whirlpool Side Panel4W10162246 Whirlpool Side Panel4WPW10575396 Whirlpool Side Panel5Sheild, Heat (2)68523249 Whirlpool Oven Support Bracket7Shield, Heat (2)8Frame, Front (Non-Serviceable)9WP3196037 Whirlpool Leveling Foot10WPW10058460 Whirlpool Appliance Levelling Leg11WP3195097 Whirlpool Oven Bottom12WPW10181986 Whirlpool Oven Sensor138053967 Whirlpool Oven Heat Baffle16WPW10306546 Whirlpool Base Rail18Seal, Oven Flange19W10877054 Whirlpool Spacer Assembly20Back, Main21W11542153 Whirlpool Door Gasket22Brace, Main Back23Retainer, Insul. (Left Hand)23Retainer, Insul. (Right Hand)24Clip, Panel (6)25WP9757891 Whirlpool Power Cord26549193 Whirlpool Refrigerator Power Clamp27WP3196262 Whirlpool Light Switch28W11594027 Whirlpool Range Oven Light Socket29RANGE ONLY 40W 120V APPL BULB30WP9761013 Whirlpool Door Latch31W10078370 Whirlpool Latch Rod32WPW10107820 Whirlpool Door Latch38Screw40SCREW42Screw44WP7101P246-60 Whirlpool Screw45WP3400832 Whirlpool Screw46W11244557 Whirlpool Screw47W11684915 Whirlpool Insulation47W10491985 Whirlpool Screw47W11688737 Whirlpool Insulation47Insulation
