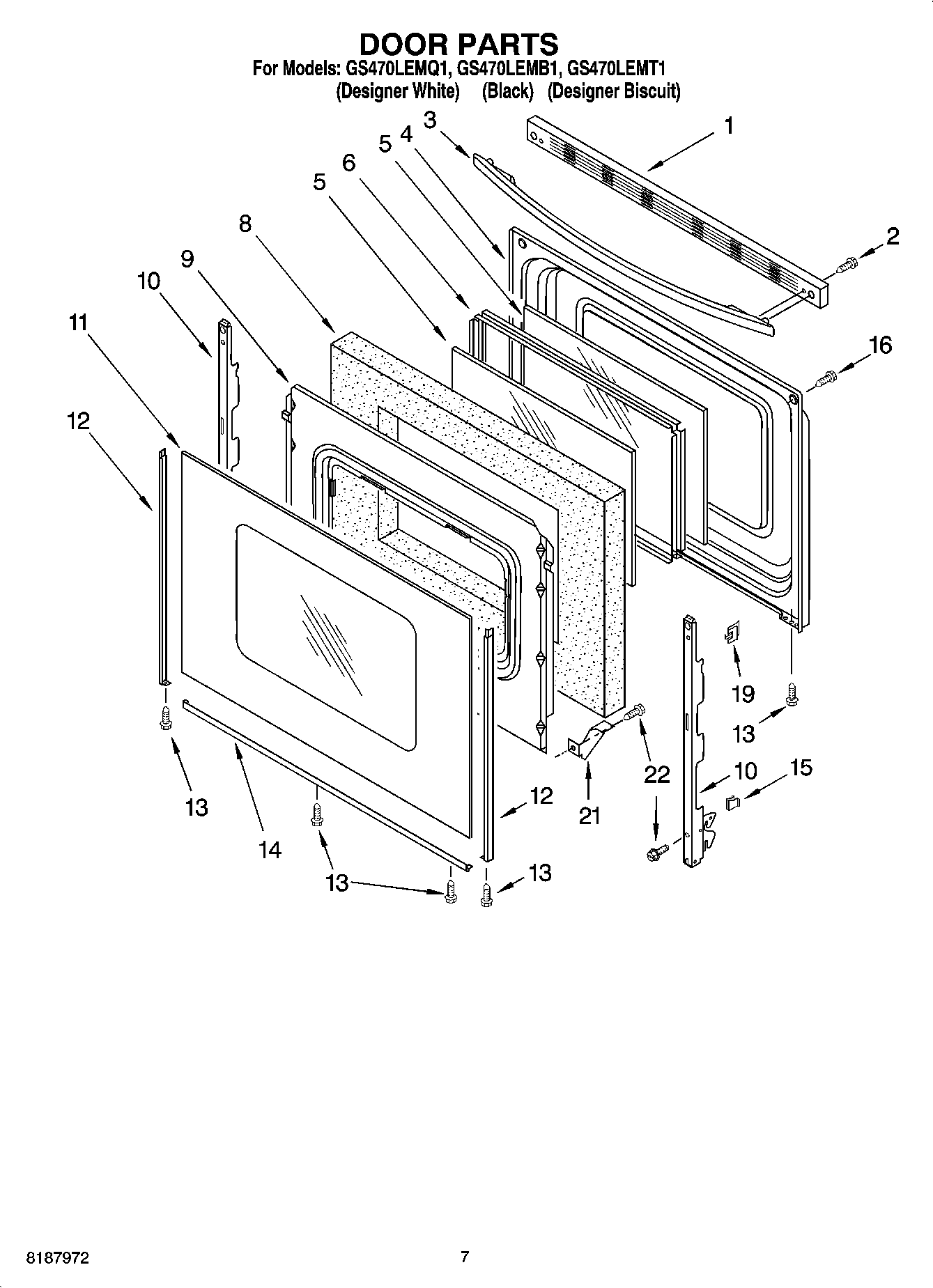

GS470LEMQ1 05 – DOOR PARTS

GS470LEMQ1 05 – DOOR PARTS

Written by

in

GS470LEMQ1 05 – DOOR PARTS

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer (Biscuit)
11WPW10118454 Whirlpool Door Outer Glass White
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523178 Whirlpool Door Trim
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15WP3196925 Whirlpool Clip Assembly
16WP179051 Whirlpool Screw
19Clip, Glass (4)
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
