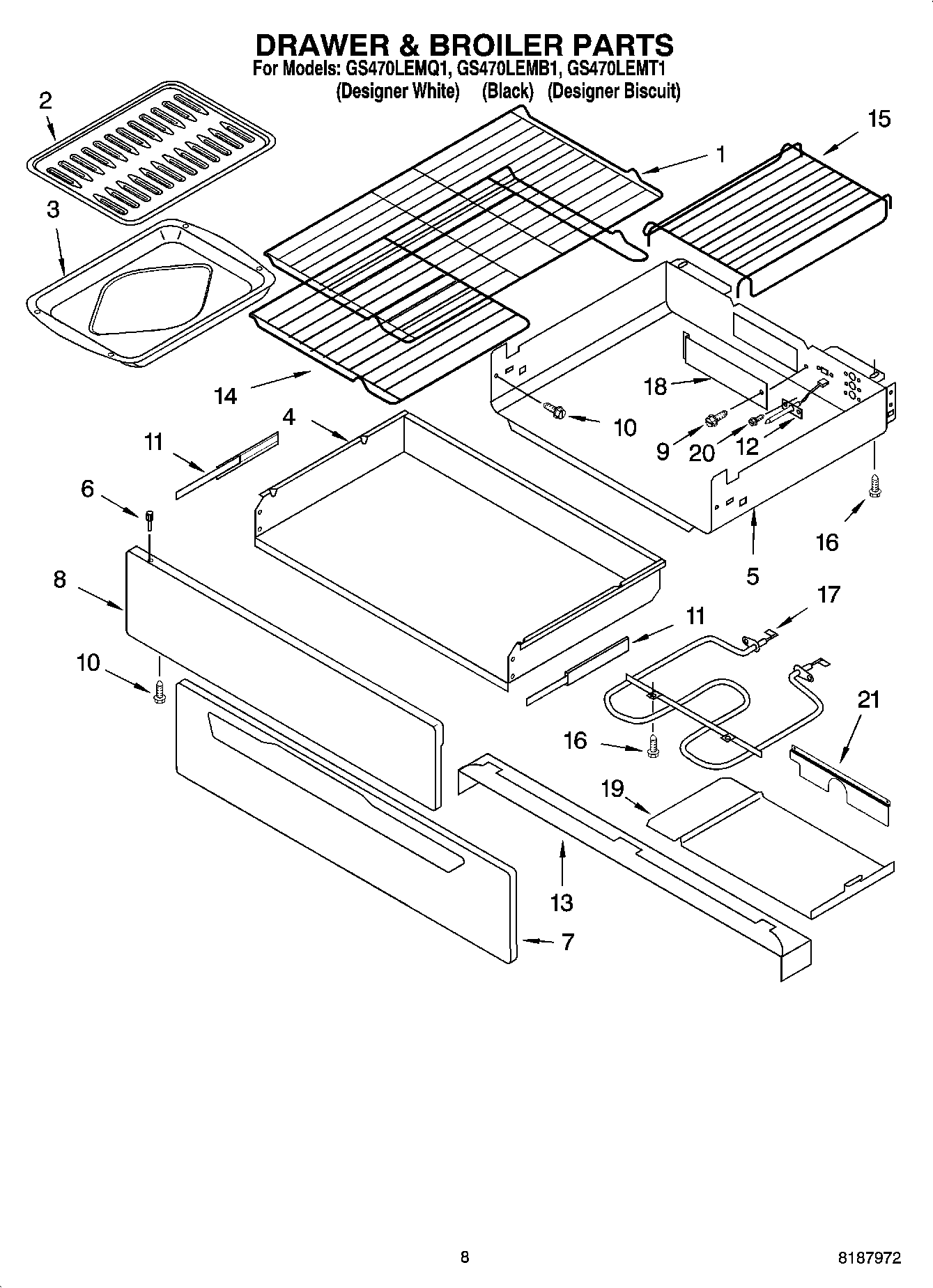

GS470LEMQ1 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

GS470LEMQ1 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

GS470LEMQ1 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI150481A
WPL 8316781
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
WPL 786032
WPL 786020
8212471 Whirlpool Oven Paint
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
3196896 Whirlpool Clip
8523599 Whirlpool Oven Wire Harness
WPL ARI150480A
WPL ARI150479A
WPL ARI150478A
WPL ARI150477A
WPL ARI150476A
WPL ARI150475A
WPL 9758533
WPL 9758531
8183759 Whirlpool Oven Grate Pad
WPL ARI150482A
WPL 8524207
TIE,WIRE
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
814381 Whirlpool Pin
72032 Whirlpool Touch Up Paint Black
511873 Whirlpool Refrigerator Paint
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 Whirlpool Biscuit Spray Paint
WPL 799832
4392899 Whirlpool Biscuit Touch-Up Paint
242831 Whirlpool Oven Wire
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
5Enclosure, Drawer
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
7PANEL, DRAWER FRONT (BISCUIT)
8Panel, Inner
9WPY706189 Whirlpool Stove Screw
10WP3400832 Whirlpool Screw
11Glide, Accuride (Right Hand)
11Glide, Accuride (Left Hand)
12WP8274149 Whirlpool Sensor Assembly
13Shield, Drawer
14WP8274021 Whirlpool Oven Rack
15WP8274022 Whirlpool Oven Rack
16SCREW
179760775 Whirlpool Oven Warm Element
18Cover, Access
19Baffle, Radiant
20WP3196170 Whirlpool Screw
21Cover, Element
