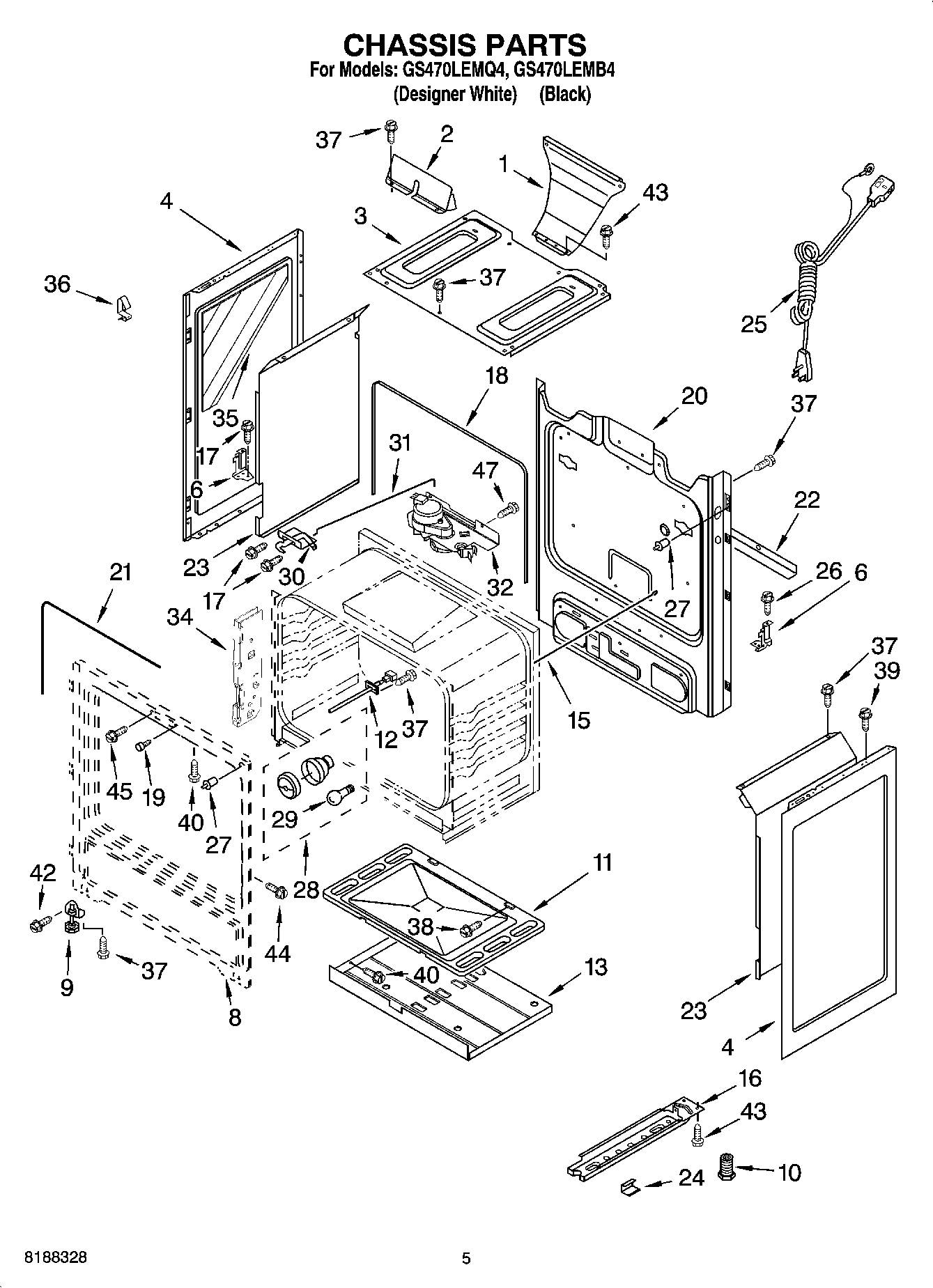

GS470LEMQ4 04 – CHASSIS PARTSadmin2025-04-26T11:26:23+00:00GS470LEMQ4 04 – CHASSIS PARTS ProductsPositionProduct1W11457094 Whirlpool Oven Flue2WP8272747 Whirlpool Heat Shield3W11379351 Whirlpool Burner Box4WPW10575396 Whirlpool Side Panel4W11730303 Whirlpool Side Panel68523249 Whirlpool Oven Support Bracket8Frame, Front (Not Serviceable)9WP3196037 Whirlpool Leveling Foot10WPW10058460 Whirlpool Appliance Levelling Leg11WP3195097 Whirlpool Oven Bottom12WPW10181986 Whirlpool Oven Sensor138053967 Whirlpool Oven Heat Baffle159757239 Whirlpool Oven Door Rod16WPW10306546 Whirlpool Base Rail17W11169708 Whirlpool Screw18Seal, Oven Flange19W10877054 Whirlpool Spacer Assembly20Back, Main21W11542153 Whirlpool Door Gasket22Brace, Main Back239761448 Whirlpool Oven Retainer239761449 Whirlpool Oven Retainer24Clip, Panel (6)25WP9757891 Whirlpool Power Cord26WP4449743 Whirlpool Screw27WP9757262 Whirlpool Light Switch28W11594027 Whirlpool Range Oven Light Socket29RANGE ONLY 40W 120V APPL BULB30WP9761013 Whirlpool Door Latch31W10078370 Whirlpool Latch Rod32WPW10107820 Whirlpool Door Latch34W10647259 Whirlpool Hinge Receiver35Insulation36Clip - Mounting38Screw40SCREW42Screw44WP7101P246-60 Whirlpool Screw45WP3400832 Whirlpool Screw47W10491985 Whirlpool Screw47W11688737 Whirlpool Insulation47W11684915 Whirlpool Insulation478053915 Whirlpool Oven Insulation47Insulation
