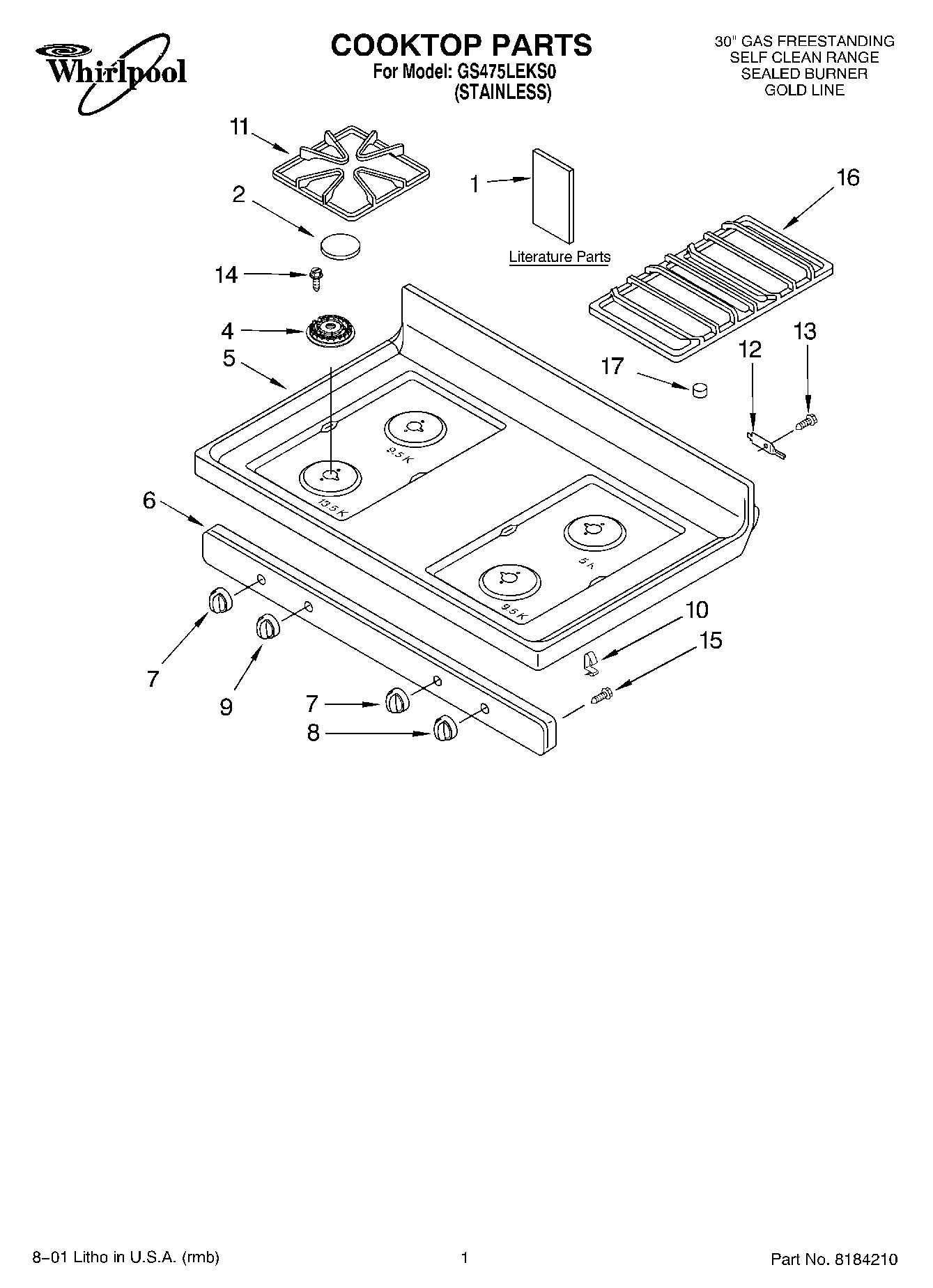

GS475LEKS0 01 – COOKTOP, LITERATURE

GS475LEKS0 01 – COOKTOP, LITERATURE

Written by

in

GS475LEKS0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (English/Spanish)
1Literature Parts (Instructions, Installation)
1Literature Parts (Tech Sheet)
1Guide, Use & Care
2WP3191898 Whirlpool Surface Burner Cap Black
2WP3191901 Whirlpool Burner Cap
2WP3191904 Whirlpool Burner Cap
4WP4455981 Whirlpool Burner Head
4WP4455980 Whirlpool Burner Head
4WP4455979 Whirlpool Range Small Burner Head
5W11213958 Whirlpool Oven Cooktop
68523855 Whirlpool Oven Manifold Panel
7Knob, Control (2)
8Knob, Accusimmer
9Knob, Powerburner
10Clip – Mounting
11WPW10447925 Whirlpool Grate Kit
12WP3195060 Whirlpool Cooktop Pin
13SCREW
14WP3368921 Whirlpool Screw
15WP3196557 Whirlpool Screw
16Grate, Center
178183759 Whirlpool Oven Grate Pad
