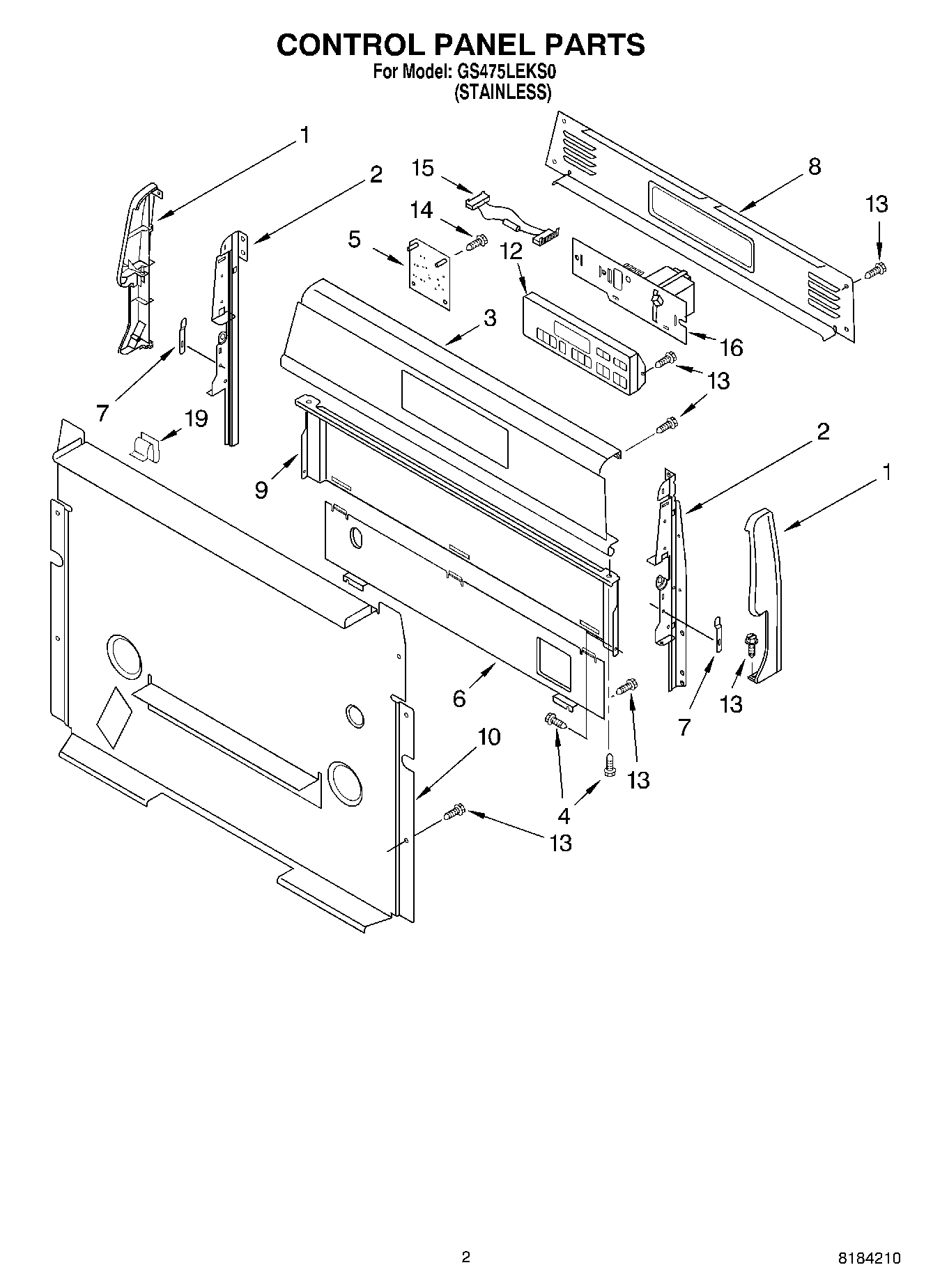

GS475LEKS0 02 – CONTROL PANEL

GS475LEKS0 02 – CONTROL PANEL

Written by

in

GS475LEKS0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (Black)
13SCREW
14WP3196170 Whirlpool Screw
15Jumper W/Fuse
16Power Supply, PCA
19WP8273564 Whirlpool Clip
