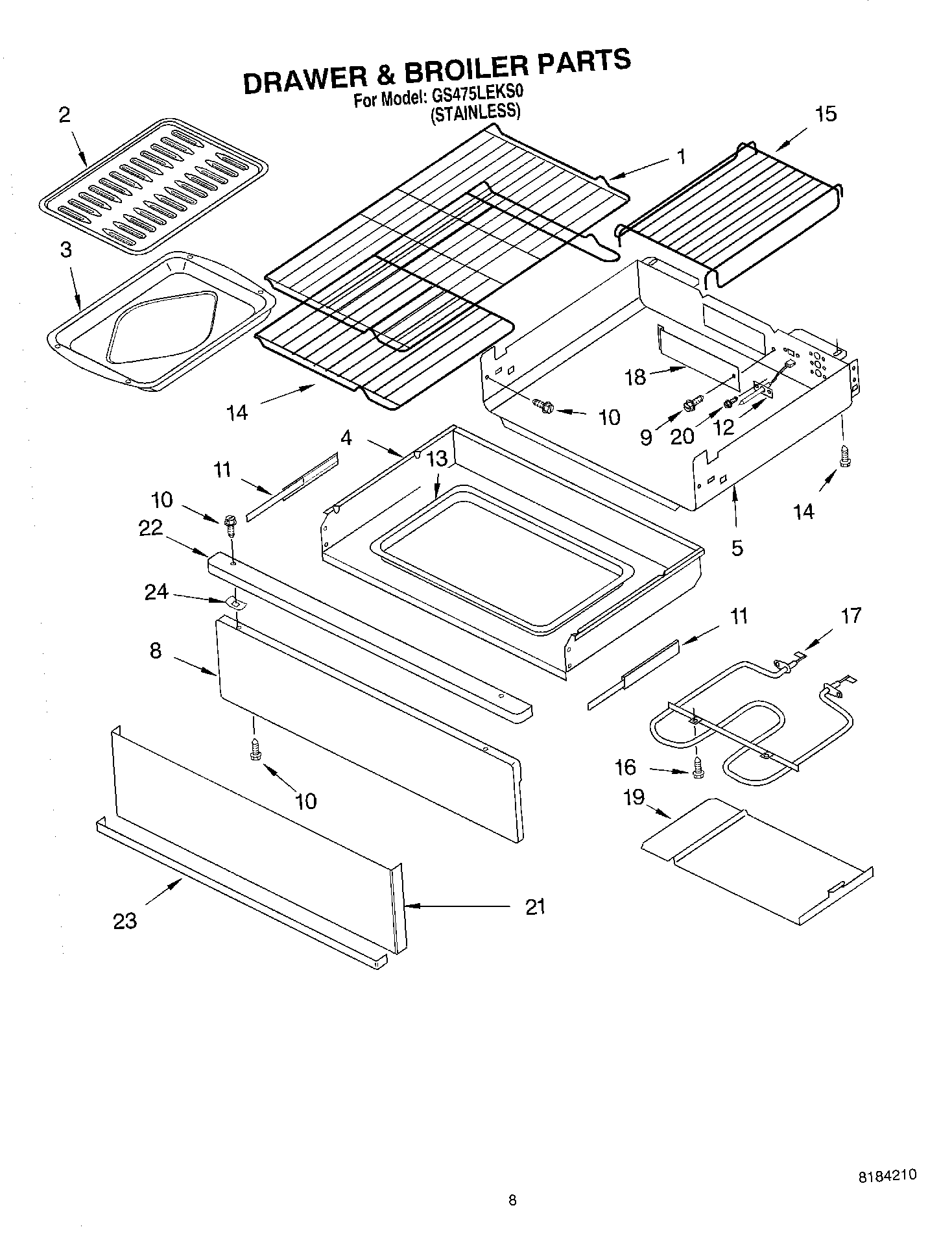

GS475LEKS0 06 – DRAWER AND BROILER, OPTIONAL

GS475LEKS0 06 – DRAWER AND BROILER, OPTIONAL

Written by

in

GS475LEKS0 06 – DRAWER AND BROILER, OPTIONAL

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
5Enclosure, Drawer
7W11230490 Whirlpool Drawer Panel
8Panel, Inner
9WPY706189 Whirlpool Stove Screw
10WP3400832 Whirlpool Screw
11Glide, Accuride (Left Hand)
11Glide, Accuride (Right Hand)
12WP8274149 Whirlpool Sensor Assembly
13Liner, Drawer
14WP8274021 Whirlpool Oven Rack
15WP8274022 Whirlpool Oven Rack
16SCREW
179760775 Whirlpool Oven Warm Element
18Cover, Access
19Baffle, Radiant
20WP3196170 Whirlpool Screw
21Panel, Stainless
22WPL 8053949
23Bottom, Drawer
248212471 Whirlpool Oven Paint
243196696 Whirlpool Clip
248183759 Whirlpool Oven Grate Pad
24Grease
248273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
24WP9781235 Whirlpool Clip
24350942 Whirlpool Spray Paint
243196896 Whirlpool Clip
24WPL 8522614
24WPL 8273901
24WPL 8274195
24WPL 8053527
241
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24FOIL, ALUMINUM OVEN (18“ X 25 )
24WPW10208653 Whirlpool Insulation
24WPL 799832
24511873 Whirlpool Refrigerator Paint
24Almond (Uncut)
24WP72107 Whirlpool Touchup
24799344 Whirlpool Refrigerator Paint
2472017 Whirlpool Appliance Touch-Up Paint White
24350956 Whirlpool Spray Assembly
24Wire, 25“ Roll (White 14 GA.)
24285006 Whirlpool Spray
24814381 Whirlpool Pin
24Wire (14 Ga. 200 c Brown)
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24Wire (14 Ga. 150 c Blue)
24242831 Whirlpool Oven Wire
2416515 Whirlpool Clip
243400964 Whirlpool Oven Clip
24350930 Whirlpool White Spray Paint
