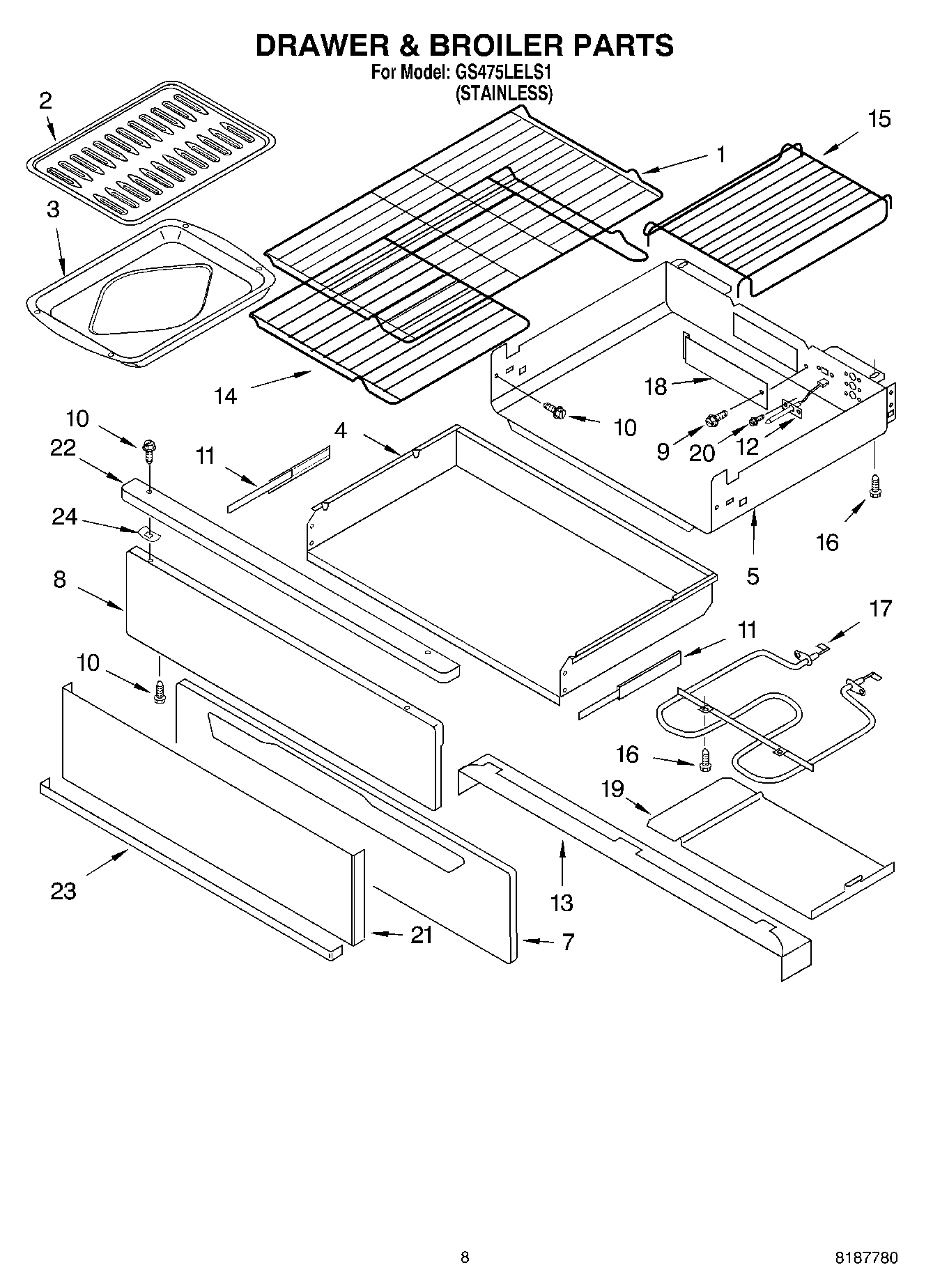

GS475LELS1 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

GS475LELS1 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

GS475LELS1 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI70150A7
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
3196896 Whirlpool Clip
8523599 Whirlpool Oven Wire Harness
WPL ARI70156A2
WPL ARI70149A7
WPL ARI70155A6
WPL ARI70154A3
WPL ARI70153A2
WPL ARI70152A4
WPL 8523428
8183759 Whirlpool Oven Grate Pad
WPL ARI70151A6
WPL 8524207
TIE,WIRE
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Wire, 25` Roll (Red 14 Ga.)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
Wire, 25` Roll (Black 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Wire, 25“ Roll (White 14 GA.)
285006 Whirlpool Spray
814381 Whirlpool Pin
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
242831 Whirlpool Oven Wire
350930 Whirlpool White Spray Paint
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
5Enclosure, Drawer
7W11230490 Whirlpool Drawer Panel
8Panel, Inner
9WPY706189 Whirlpool Stove Screw
10WP3400832 Whirlpool Screw
11Glide, Accuride (Right Hand)
11Glide, Accuride (Left Hand)
12WP8274149 Whirlpool Sensor Assembly
13Shield, Drawer
14WP8274021 Whirlpool Oven Rack
15WP8274022 Whirlpool Oven Rack
16SCREW
179760775 Whirlpool Oven Warm Element
18Cover, Access
19Baffle, Radiant
20WP3196170 Whirlpool Screw
21Panel, Stainless
22WPL 8053949
23Bottom, Drawer
24WP9781235 Whirlpool Clip
