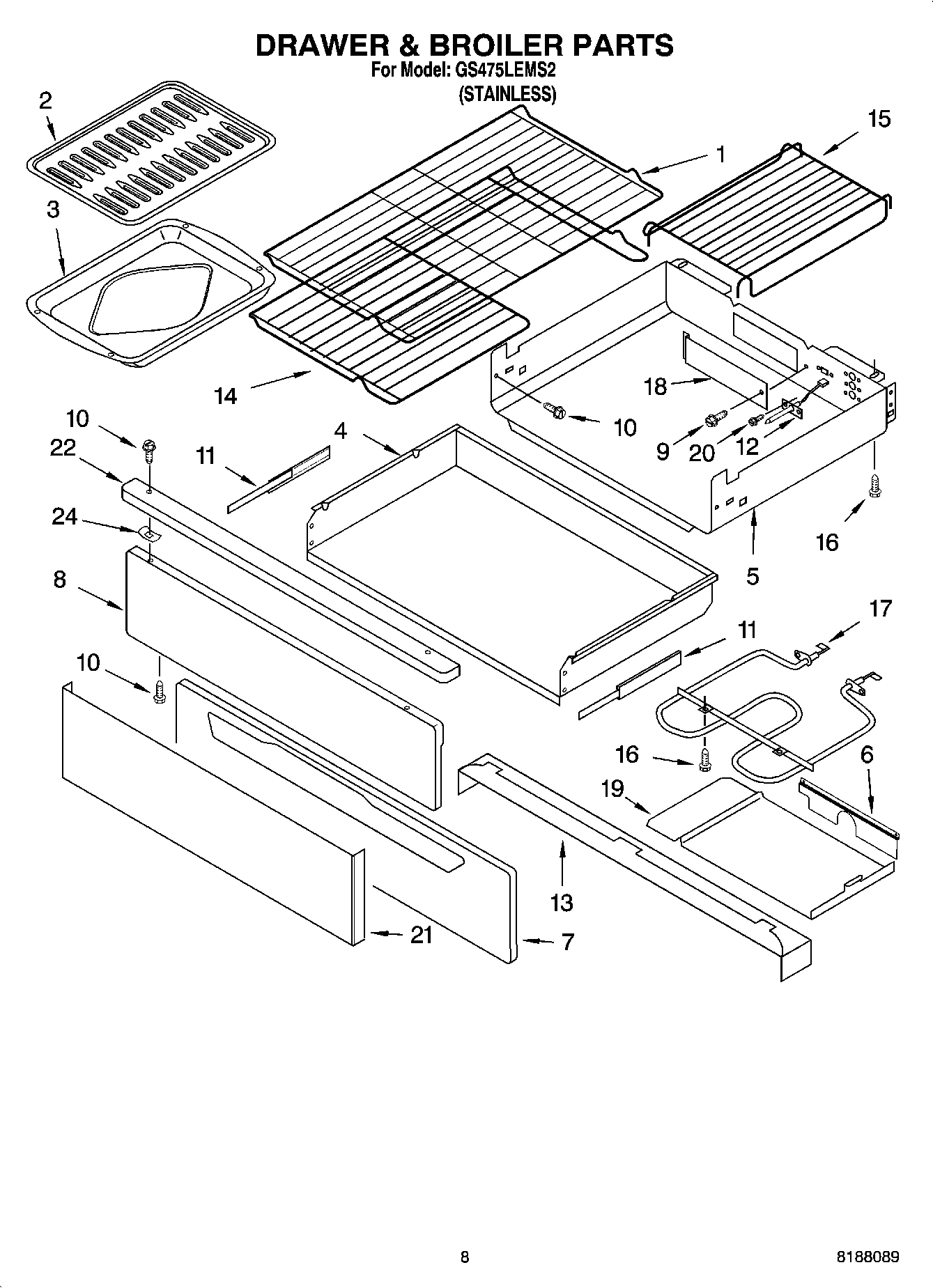

GS475LEMS2 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GS475LEMS2 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GS475LEMS2 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI70199A8
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WPL ARI70197A8
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	WPL ARI70195A9
	Grease
	8183759 Whirlpool Oven Grate Pad
	WPL 9758211
	WPL 9758531
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	WPL ARI70192A1
	3196896 Whirlpool Clip
	WPL ARI70193A5
	WPL ARI70194A5
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPL 799832
	WPL 8524207
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	3400964 Whirlpool Oven Clip
	WPL ARI70198A2
	W11447673 Whirlpool Range Tip Anchor
	16515 Whirlpool Clip
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	WPL ARI70196A7
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Warming
5	Enclosure, Drawer
6	Cover, Element
7	W11230490 Whirlpool Drawer Panel
8	Panel, Inner
9	WPY706189 Whirlpool Stove Screw
10	WP3400832 Whirlpool Screw
11	Glide, Accuride (Left Hand)
11	Glide, Accuride (Right Hand)
12	WP8274149 Whirlpool Sensor Assembly
13	Shield, Drawer
14	WP8274021 Whirlpool Oven Rack
15	WP8274022 Whirlpool Oven Rack
16	WP3196174 Whirlpool Screw
17	Element, Warming
18	Cover, Access
19	Baffle, Radiant
20	WP3196170 Whirlpool Screw
21	Panel, Stnls & US
22	Handle
24	WP9781235 Whirlpool Clip
