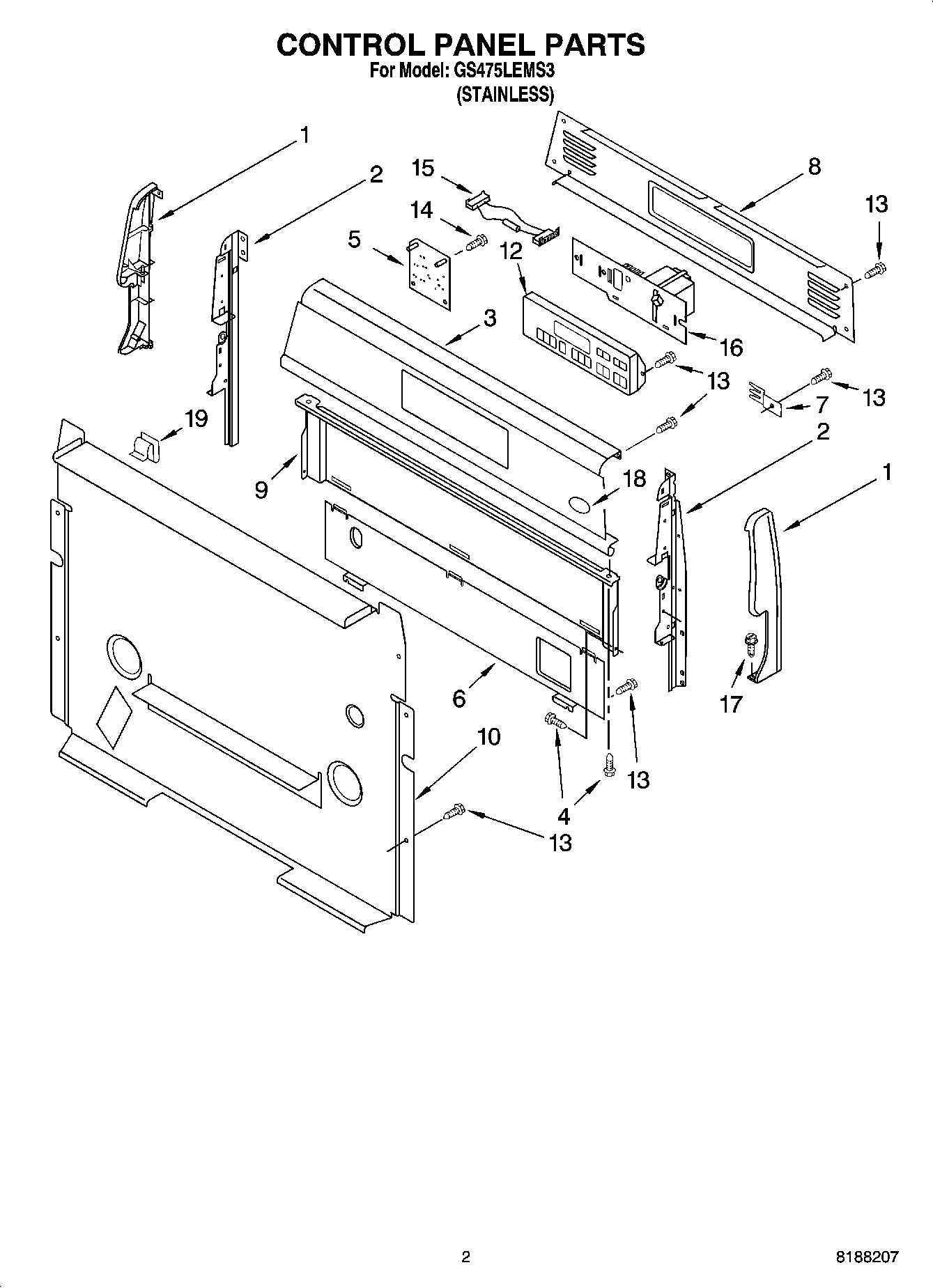

GS475LEMS3 02 – CONTROL PANEL PARTS

GS475LEMS3 02 – CONTROL PANEL PARTS

Written by

in

GS475LEMS3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (Black)
13SCREW
14WP3196170 Whirlpool Screw
15Jumper W/Fuse
16Power Supply, PCA
17WP3196557 Whirlpool Screw
18NAMEPLATE
19WP8273564 Whirlpool Clip
