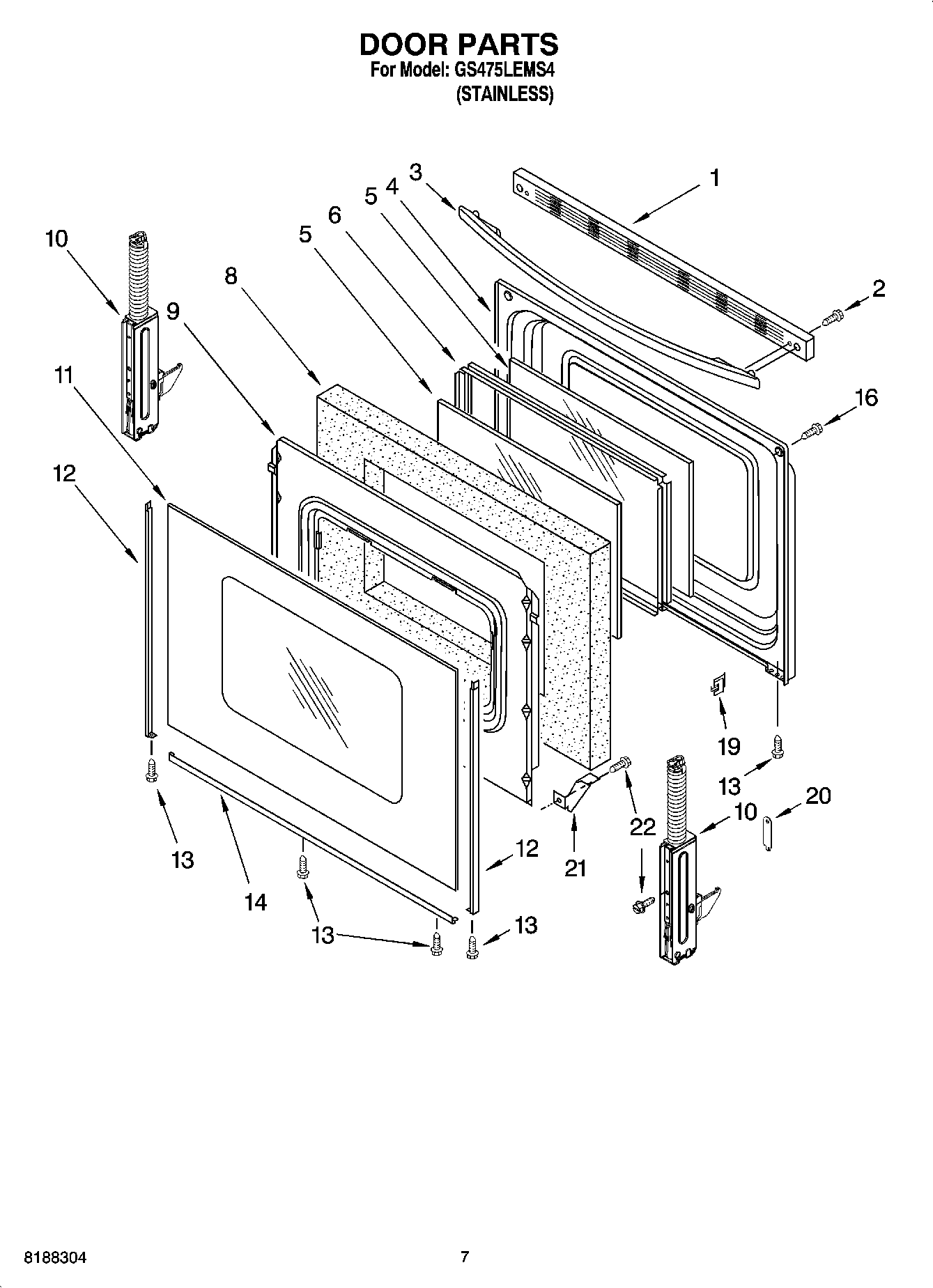

GS475LEMS4 05 – DOOR PARTS

Products

PositionProduct
1Trim, Top (Black and S.Steel Models)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer (Stainless Steel)
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
16WP179051 Whirlpool Screw
19Clip, Glass (4)
209761517 Whirlpool Oven Clip Assembly
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
