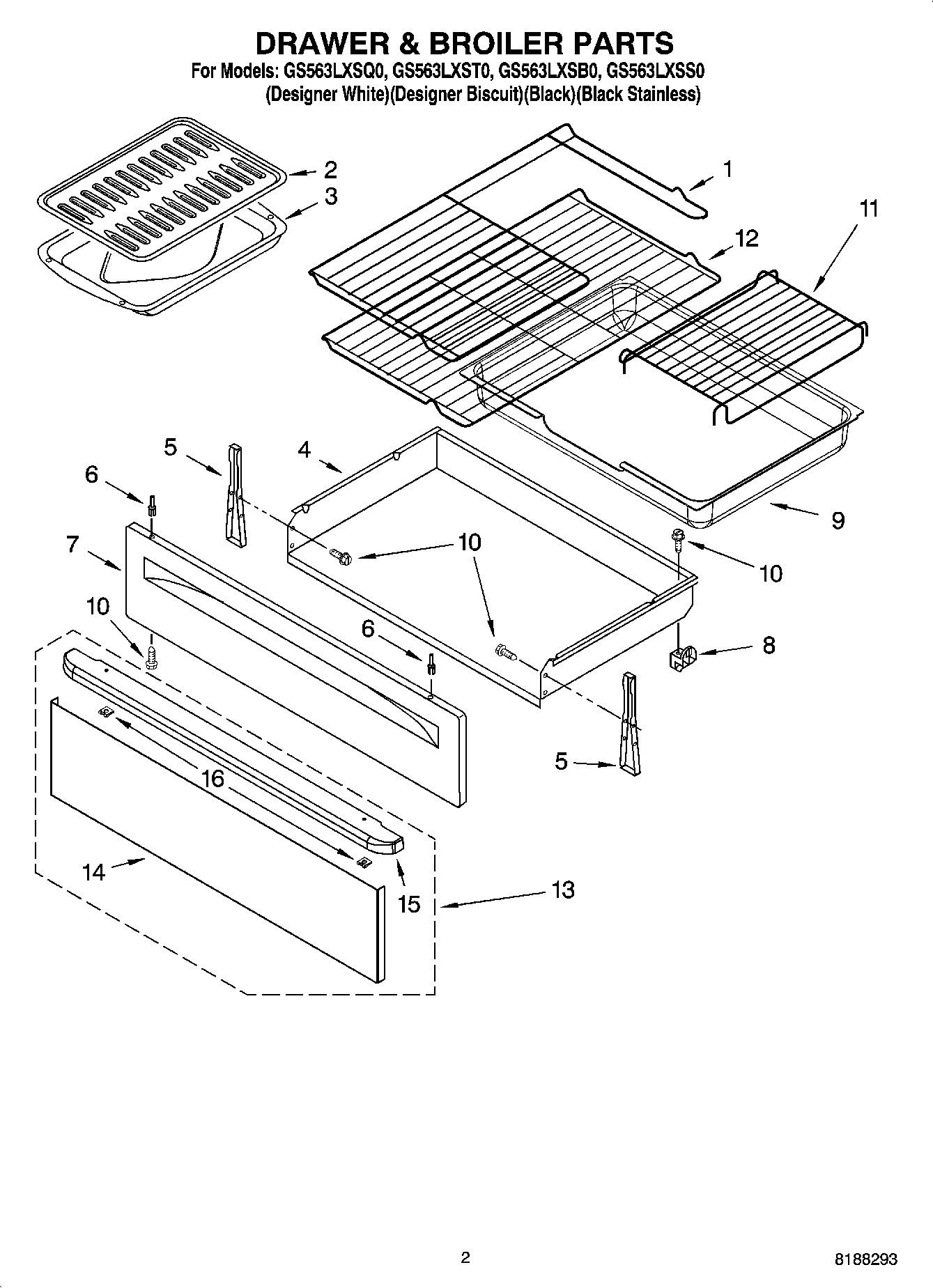

GS563LXSB0 02 – DRAWER & BROILER PARTS

GS563LXSB0 02 – DRAWER & BROILER PARTS

Written by

in

GS563LXSB0 02 – DRAWER & BROILER PARTS

Products

PositionProduct
1WP8274021 Whirlpool Oven Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5BRKT-MNTG
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7PANEL, DRAWER FRONT (BISCUIT)
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
8W10877054 Whirlpool Spacer Assembly
8WP8053334 Whirlpool Drawer Glide
9Liner, Drawer
10WP3400832 Whirlpool Screw
11WP8274022 Whirlpool Oven Rack
12WPW10256908 Whirlpool Oven Range Rack
13Stnlss Mdl Only
14Panel, Stnls & US
15Handle, Drawer
16WP9781235 Whirlpool Clip
