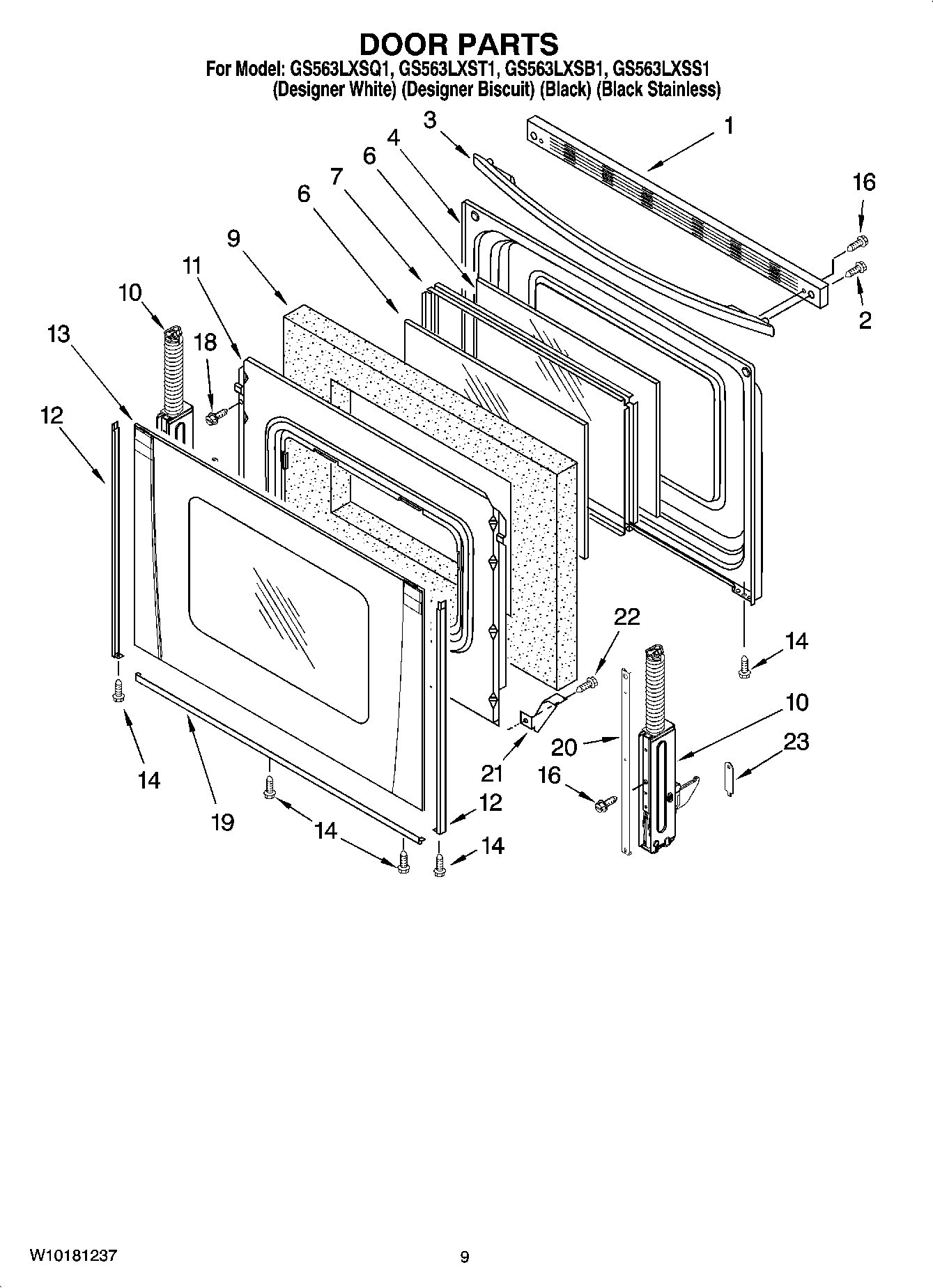

GS563LXSB1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GS563LXSB1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GS563LXSB1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI150565A
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
16515 Whirlpool Clip
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
WPL ARI150564A
WPL ARI150563A
WPL ARI150562A
WPL ARI150561A
WPL ARI150560A
WPL W10095210
WPL ARI150566A
WPL 8524207
8523599 Whirlpool Oven Wire Harness
W10045060 Whirlpool Grounding Wire
3196896 Whirlpool Clip
3400964 Whirlpool Oven Clip
Wire, 25` Roll (Red 14 Ga.)
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
511873 Whirlpool Refrigerator Paint
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350942 Whirlpool Spray Paint
W11447673 Whirlpool Range Tip Anchor
Almond (Uncut)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
WPL 799832
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
4392901 Whirlpool Biscuit Spray Paint
1Trim, Top (Stainless Steel)
1Trim, Top (White)
1WP9762391 Whirlpool Door Trim Assembly
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Biscuit)
3Handle, Door (Black)
3Handle, Door (Stainless Steel)
4WP9761344 Whirlpool Door Liner
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10W10347464 Whirlpool Door Hinge
11W11539580 Whirlpool Retainer
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
128184858 Whirlpool Door Trim
12WP2179234 Whirlpool Refrigerator Pan Trim
12WP8523166 Whirlpool Door Trim
13WPW10118454 Whirlpool Door Outer Glass White
13Glass, Outer (Biscuit)
13WPW10118455 Whirlpool Door Glass Assembly
14W10491985 Whirlpool Screw
16W10777162 Whirlpool Screw
18WPW10031790 Whirlpool Screw
19WP8523178 Whirlpool Door Trim
19WP8523177 Whirlpool Door Trim Assembly
19WP8523175 Whirlpool Door Trim Assembly
20W11502236 Whirlpool Door Trim
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
239761517 Whirlpool Oven Clip Assembly
