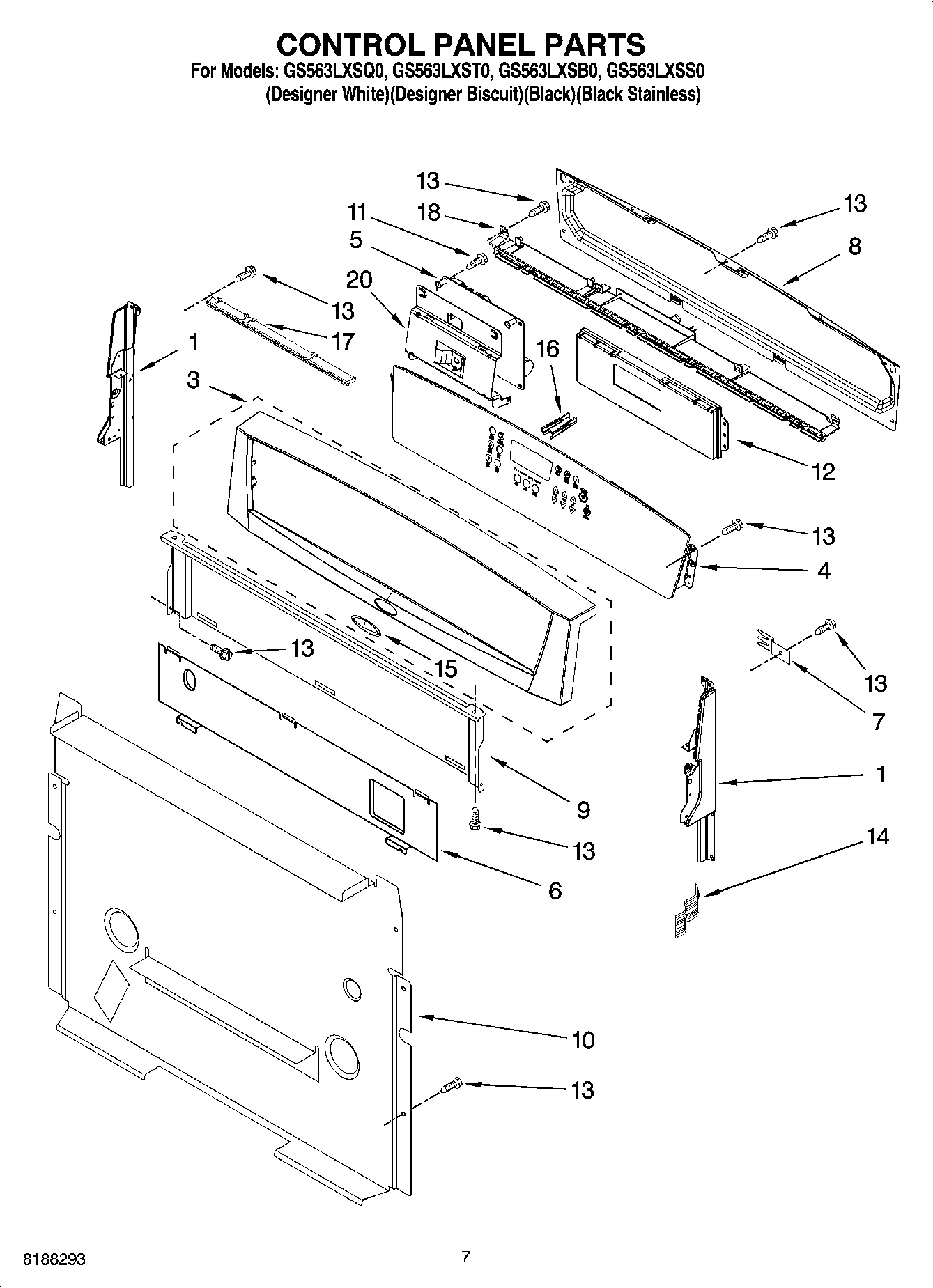

GS563LXSS0 05 – CONTROL PANEL PARTS

GS563LXSS0 05 – CONTROL PANEL PARTS

Written by

in

GS563LXSS0 05 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11230612 Whirlpool Panel End Cap
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
3Panel, Backguard (Unvl Slvr for SS)
3Panel, Backguard (White)
4Bracket, Control (White)
4Bracket, Control (Black)
4Bracket, Control (Biscuit)
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP3196170 Whirlpool Screw
12Control, Range
13SCREW
14Cnntr, Cable Flex
159757613 Whirlpool Oven Nameplate
16WPL 9757490
17Module, Light
18Brkt-Mntg, Console
20Bracket, DSI
