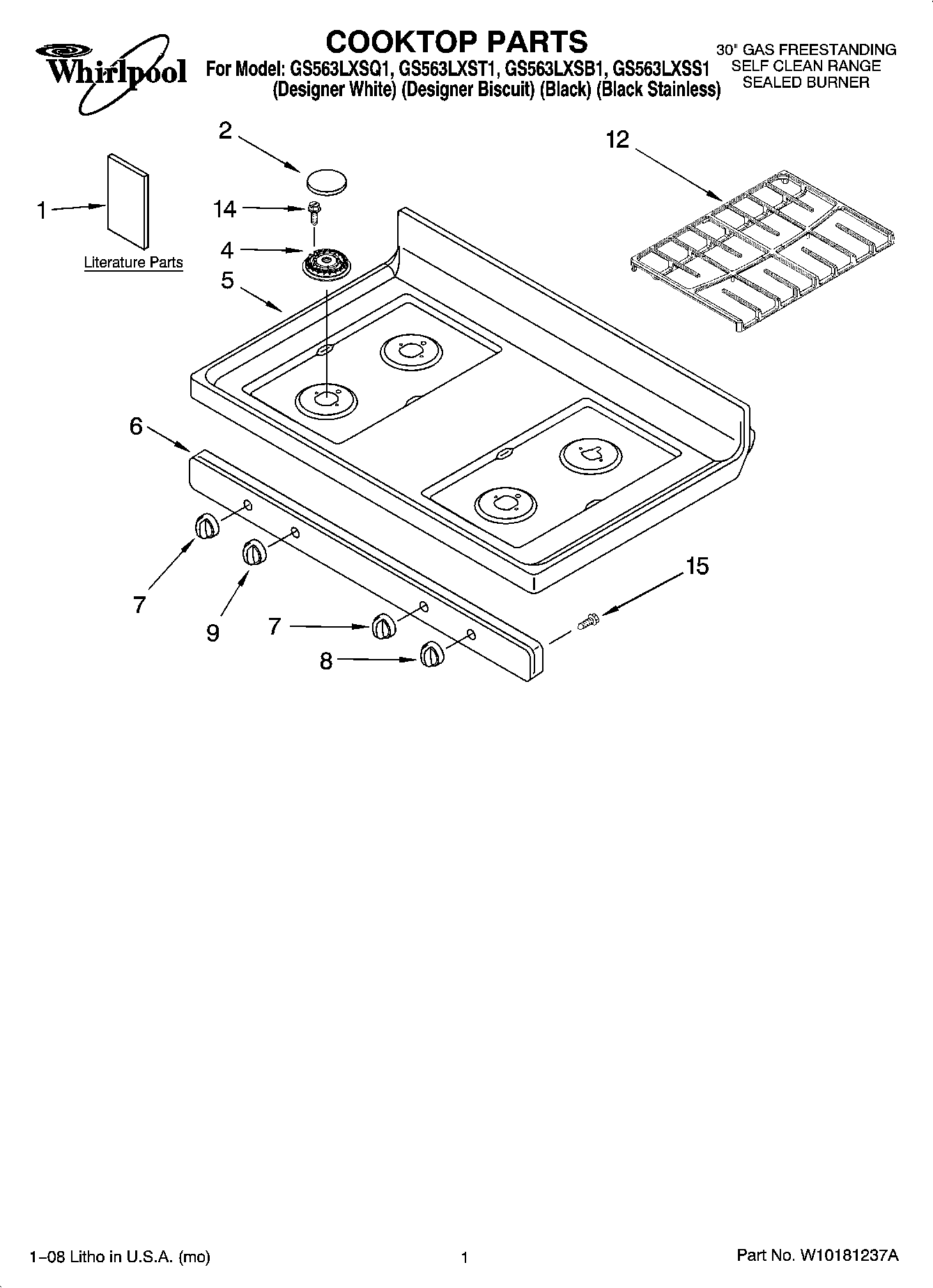

GS563LXSS1 01 – COOKTOP PARTS

Products

Position	Product
1	Guide, Use & Care
1	Tech Sheet (French)
1	Instructions, Installation (English)
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet (English)
2	Cap, (RR) (Use w/Stainless Steel Model)
2	Cap, (CR) (Use w/Stainless Steel Model)
2	WP3192486 Whirlpool Burner Cap
2	Cap, Burner RR (Grey)
2	Cap, Burner LF – RF (Grey)
2	Cap, Burner LR (Grey)
2	Cap, Burner RR (Espresso)
2	Cap, Burner LF – RF (Espresso)
2	Cap, Burner LR (Espresso)
4	WP4455979 Whirlpool Range Small Burner Head
4	WP4455980 Whirlpool Burner Head
4	WP4455981 Whirlpool Burner Head
5	8195546 Whirlpool Oven Cooktop O/S2
5	W11213958 Whirlpool Oven Cooktop
5	W11213959 Whirlpool Cooktop
6	WP8523854 Whirlpool Manifold Panel
6	Panel, Manifold (Biscuit)
6	8523855 Whirlpool Oven Manifold Panel
7	Knob, Control (3) (Biscuit)
7	W11242931 Whirlpool Knob
7	Knob, Control (2)
8	Knob, Accusimmer (Biscuit)
8	8522625 Whirlpool Oven Knob
8	Knob, Accusimmer
9	Knob, Powerburner (Biscuit)
9	Knob, Powerburner
12	Grate (Espresso)
12	Grate (Gray)
12	Grate (Black)
14	WP3368921 Whirlpool Screw
15	WP3196557 Whirlpool Screw
