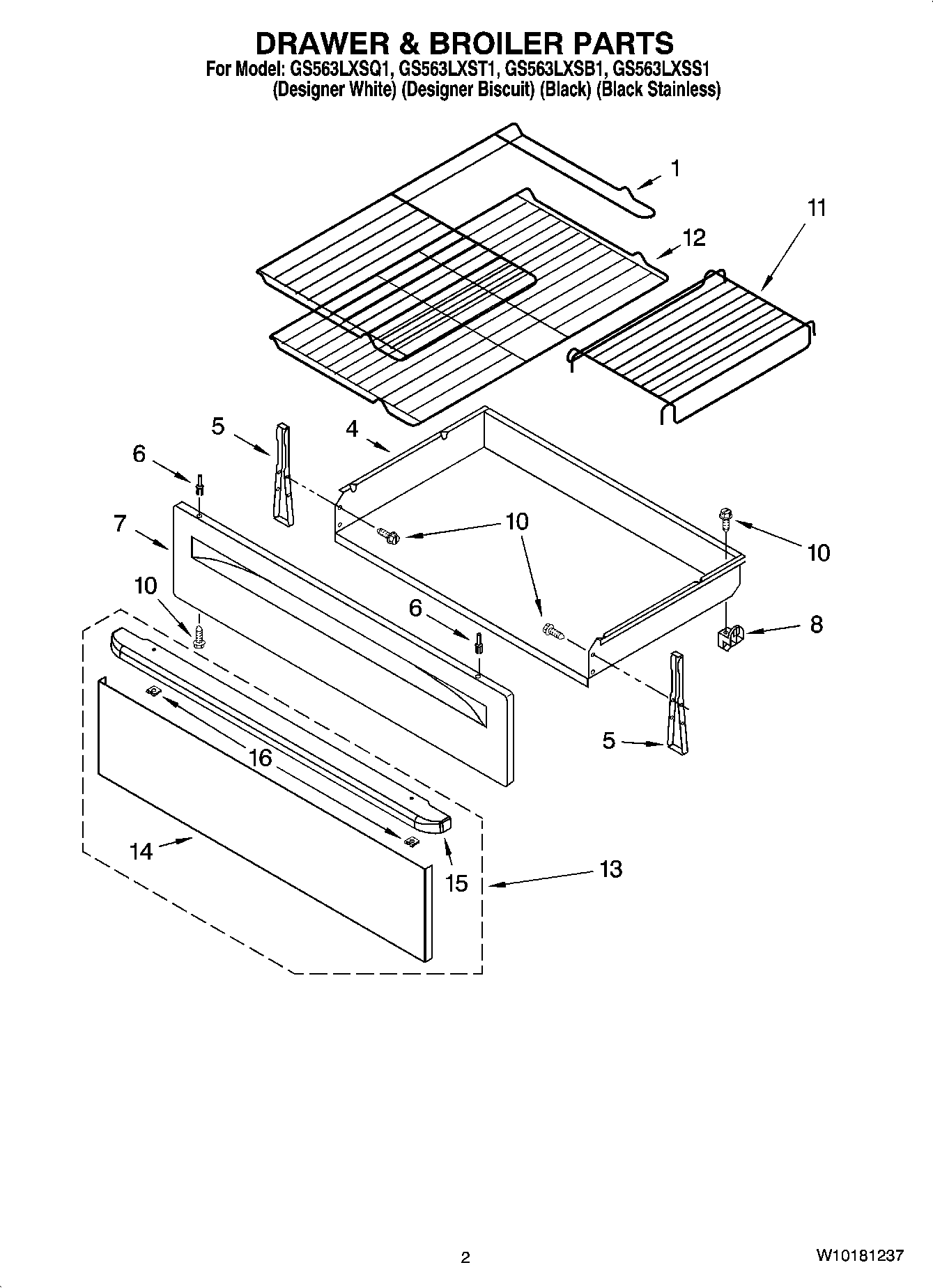

GS563LXSS1 02 – DRAWER & BROILER PARTS

GS563LXSS1 02 – DRAWER & BROILER PARTS

Written by

in

GS563LXSS1 02 – DRAWER & BROILER PARTS

Products

PositionProduct
1WP8274021 Whirlpool Oven Rack
4Drawer, Storage
5BRKT-MNTG
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7PANEL, DRAWER FRONT (BISCUIT)
7W11230486 Whirlpool Drawer Panel
7W11230490 Whirlpool Drawer Panel
8WP8053334 Whirlpool Drawer Glide
8Spacer, Glide (Stainless Steel)
10WP3400832 Whirlpool Screw
11WP8274022 Whirlpool Oven Rack
12WPW10256908 Whirlpool Oven Range Rack
13Stnlss Mdl Only
14Panel, Stnls & US
15Handle, Drawer
16WP9781235 Whirlpool Clip
