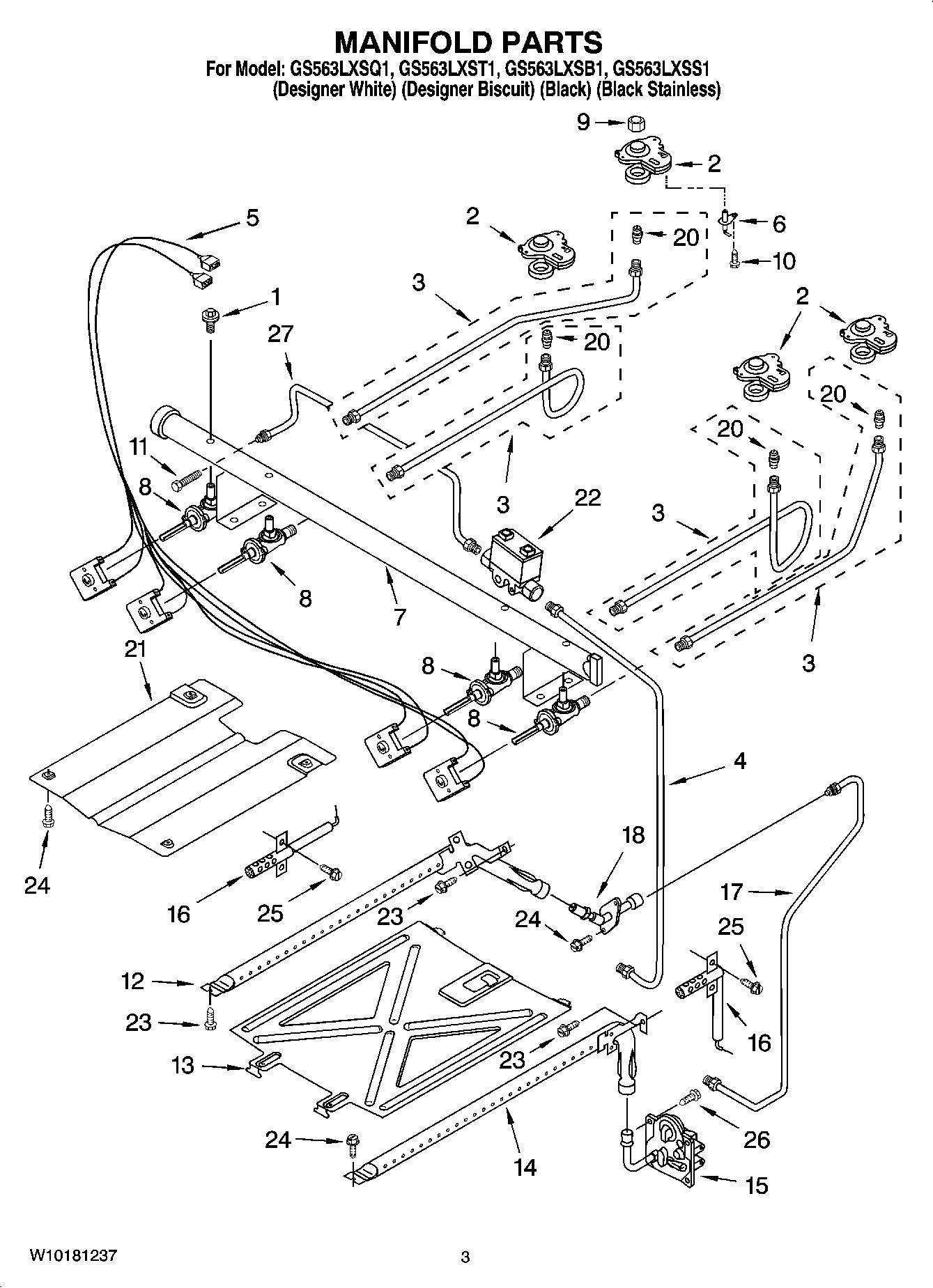

GS563LXSS1 03 – MANIFOLD PARTS

GS563LXSS1 03 – MANIFOLD PARTS

Written by

in

GS563LXSS1 03 – MANIFOLD PARTS

Products

PositionProduct
Following Parts Not Illustrated
W10854965 Whirlpool Orifice Spud
1WP8273096 Whirlpool Screw
2WP8273700 Whirlpool Base Burner
2Burner Base (Small (1))
3Tubing, Burner W/Orifice (Right Rear)
3WP8273692 Whirlpool Gas Tubing
3WP8273694 Whirlpool Gas Tubing
3Tubing, Burner W/Orifice (Right Front)
4Tubing (Manifold to Regulator)
5WPW10295998 Whirlpool Wire Harness
6WP8523793 Whirlpool Oven Surface Igniter
7Pipe, Manifold
8Valve (Right Rear)
8WP9757218 Whirlpool Burner Valve
9Nut (4)
10WP8273062 Whirlpool Screw
11Bolt
12WP8054078 Whirlpool Broiler Burner
13Spreader, Flame (Oven)
14WP9758078 Whirlpool Oven Burner
15WPW10293048 Whirlpool Gas Valve
16WP8054129 Whirlpool Oven Igniter
16WP9758079 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
20WP8273064 Whirlpool Orifice
20WP8273065 Whirlpool Orifice
20WP8273067 Whirlpool Orifice
21W10137062 Whirlpool Burner Baffle
22VALVE, SHUT OFF
233196265 Whirlpool Oven Screw
24SCREW
25W11684507 Whirlpool Screw
26WP3400016 Whirlpool Screw Assembly
27Tube (GPR-Shutoff)
