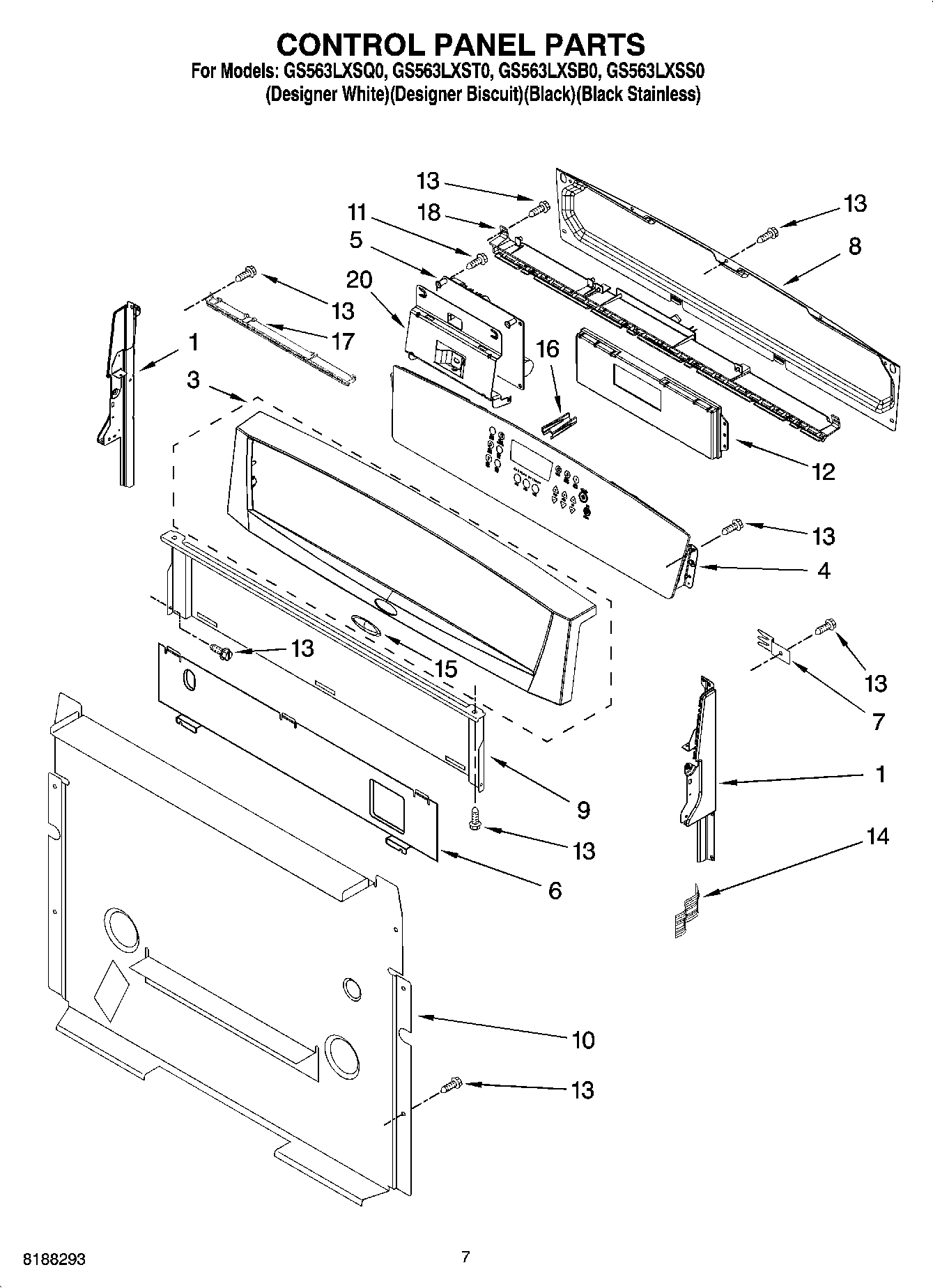

GS563LXST0 05 – CONTROL PANEL PARTS
Written by
in
GS563LXST0 05 – CONTROL PANEL PARTS
Products
Position
Product
1
Endcap (Biscuit Left Hand)
1
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
1
W11219665 Whirlpool Panel Endcap
1
W11219664 Whirlpool Endcap Panel
1
W11230612 Whirlpool Panel End Cap
3
Panel, Backguard (Biscuit)
3
Panel, Backguard (Black)
3
Panel, Backguard (Unvl Slvr for SS)
3
Panel, Backguard (White)
4
Bracket, Control (White)
4
Bracket, Control (Black)
4
Bracket, Control (Biscuit)
5
WPW10331686 Whirlpool Oven Spark Module
6
8053505 Whirlpool Oven Shield
7
8523412 Whirlpool Mounting Bracket
8
Cover, Upper
9
Shield, Heat
10
Cover, Lower
11
WP3196170 Whirlpool Screw
12
Control, Range
13
SCREW
14
Cnntr, Cable Flex
15
9757613 Whirlpool Oven Nameplate
16
WPL 9757490
17
Module, Light
18
Brkt-Mntg, Console
20
Bracket, DSI
←
