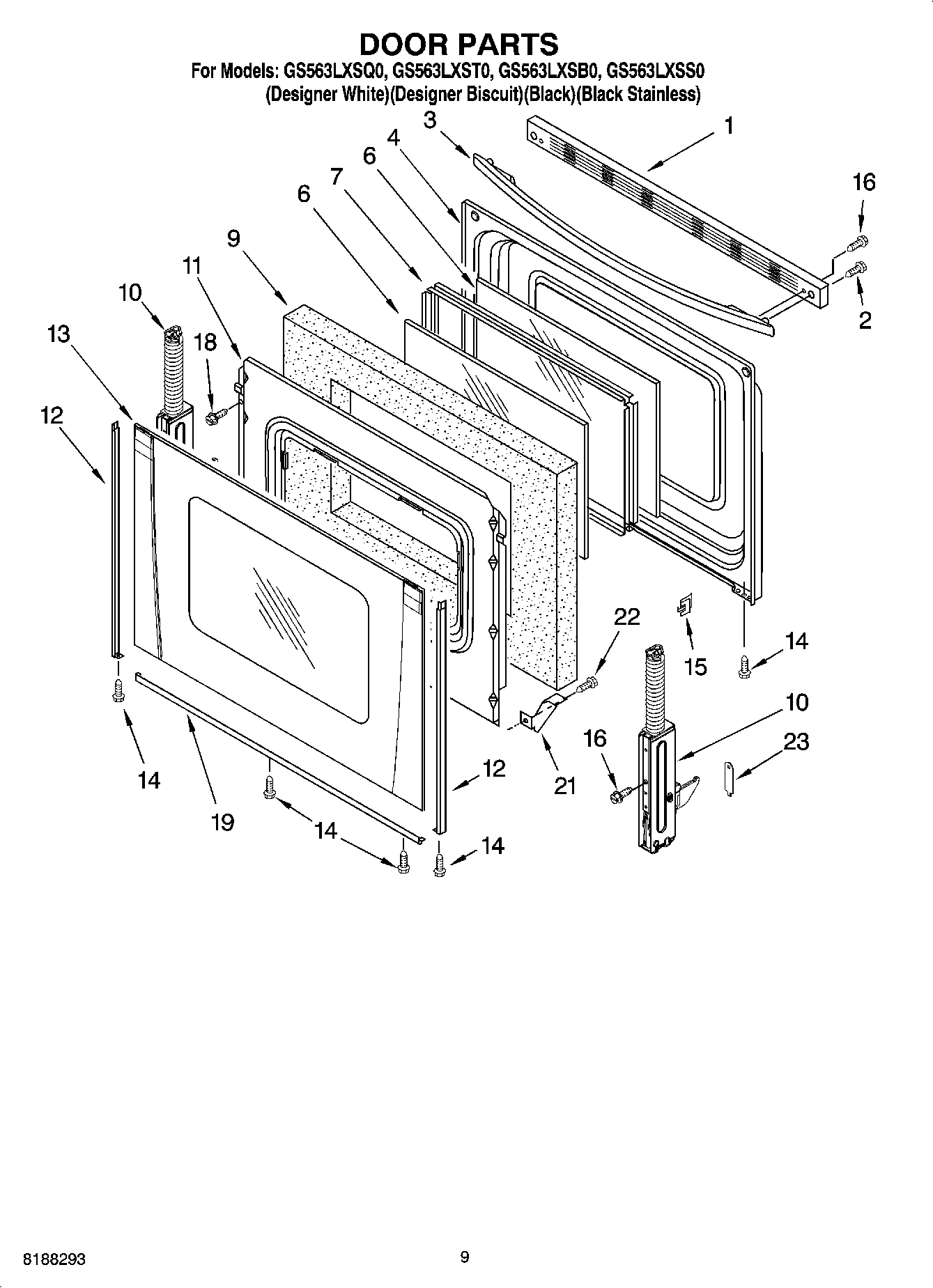

GS563LXST0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GS563LXST0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GS563LXST0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI150621A
8212471 Whirlpool Oven Paint
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
3196696 Whirlpool Clip
Grease
3196896 Whirlpool Clip
WPL ARI150620A
WPL ARI150619A
WPL ARI150618A
WPL ARI150617A
WPL ARI150616A
WPL ARI150615A
WPL 9762965
WPL 9761165
WPL ARI150622A
WPL 8524207
8523599 Whirlpool Oven Wire Harness
3400964 Whirlpool Oven Clip
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
285006 Whirlpool Spray
FOIL, ALUMINUM OVEN (18“ X 25 )
Almond (Uncut)
350942 Whirlpool Spray Paint
Wire, 25` Roll (Red 14 Ga.)
4392899 Whirlpool Biscuit Touch-Up Paint
WPW10208653 Whirlpool Insulation
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
WPL 799832
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 Whirlpool Refrigerator Paint
1WP9762391 Whirlpool Door Trim Assembly
1Trim, Top (Stainless Steel)
1Trim, Top (Biscuit)
1Trim, Top (White)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3Handle, Door (Stainless Steel)
3Handle, Door (White)
3Handle, Door (Black)
4WP9761344 Whirlpool Door Liner
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10W10347464 Whirlpool Door Hinge
11W11539580 Whirlpool Retainer
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP2179234 Whirlpool Refrigerator Pan Trim
12W10761014 Whirlpool Right Door Trim
12WP8523173 Whirlpool Door Trim
13Glass, Outer (Biscuit)
13WPW10118455 Whirlpool Door Glass Assembly
13WPW10118454 Whirlpool Door Outer Glass White
14W10491985 Whirlpool Screw
15Clip, Glass (4)
16W10777162 Whirlpool Screw
18WPW10031790 Whirlpool Screw
19WP8523175 Whirlpool Door Trim Assembly
19WP8523177 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
239761517 Whirlpool Oven Clip Assembly
