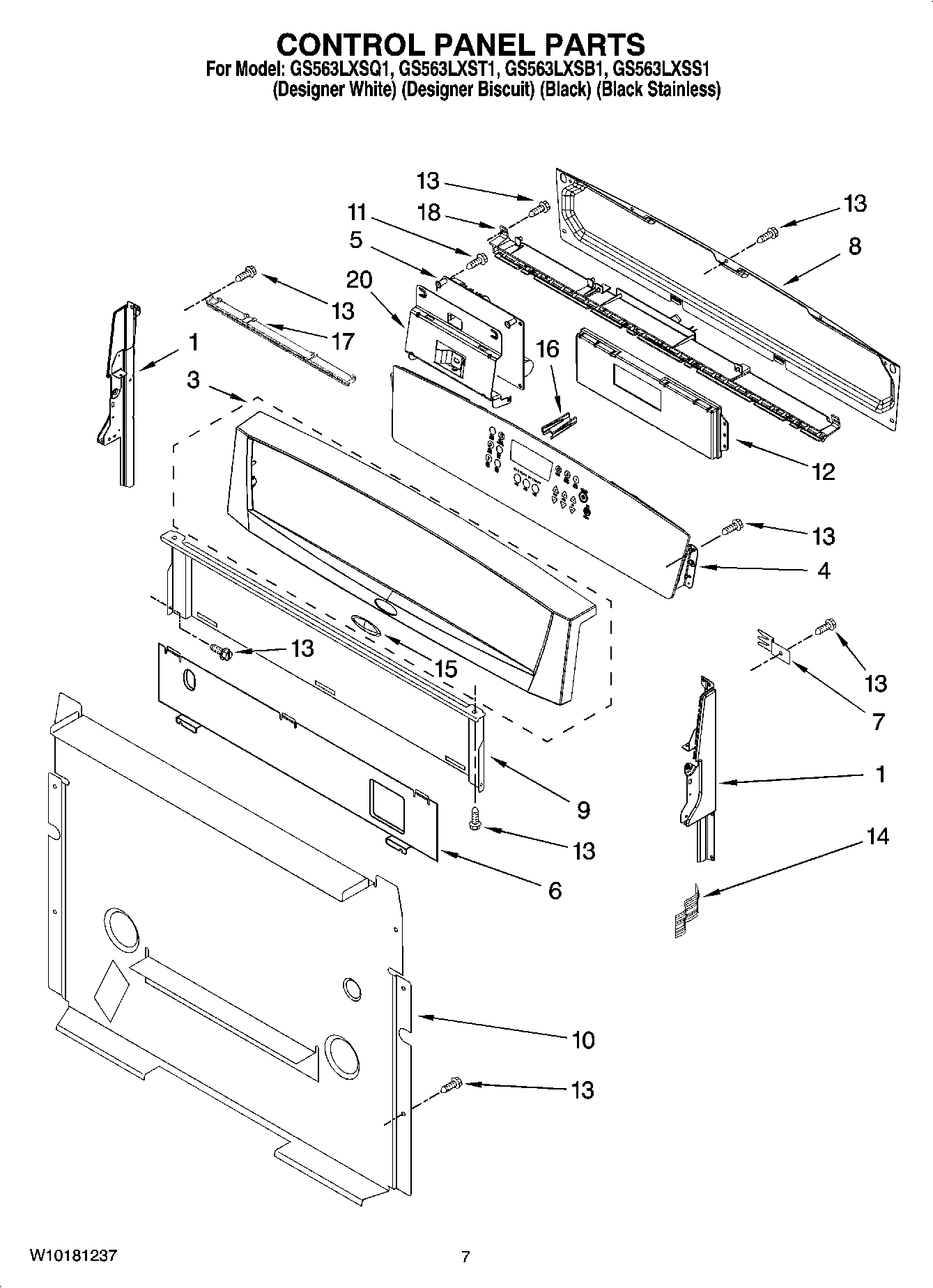

GS563LXST1 05 – CONTROL PANEL PARTSadmin2025-04-26T11:26:32+00:00GS563LXST1 05 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | W11230612 Whirlpool Panel End Cap |
| 1 | Endcap (Biscuit Left Hand) |
| 1 | W11219370 Whirlpool Endcap Panel |
| 1 | W11219365 Whirlpool Panel Endcap |
| 1 | W11219665 Whirlpool Panel Endcap |
| 1 | W11219664 Whirlpool Endcap Panel |
| 3 | Panel, Backguard (Unvl Slvr for SS) |
| 3 | Panel, Backguard (Biscuit) |
| 3 | Panel, Backguard (Black) |
| 3 | Panel, Backguard (White) |
| 4 | Bracket, Control (White) |
| 4 | Bracket, Control (Black) |
| 4 | Bracket, Control (Biscuit) |
| 5 | WPW10331686 Whirlpool Oven Spark Module |
| 6 | 8053505 Whirlpool Oven Shield |
| 7 | 8523412 Whirlpool Mounting Bracket |
| 8 | Cover, Rear (Console) |
| 9 | Shield, Heat |
| 10 | Cover, Lower |
| 11 | WP8273564 Whirlpool Clip |
| 12 | Control, Range |
| 13 | SCREW |
| 14 | Cnnctr Cbl, Flex |
| 15 | 9757613 Whirlpool Oven Nameplate |
| 16 | WPL 9757490 |
| 17 | Module, Light |
| 18 | Brkt-Mntg, Console |
| 20 | Bracket, DSI |
