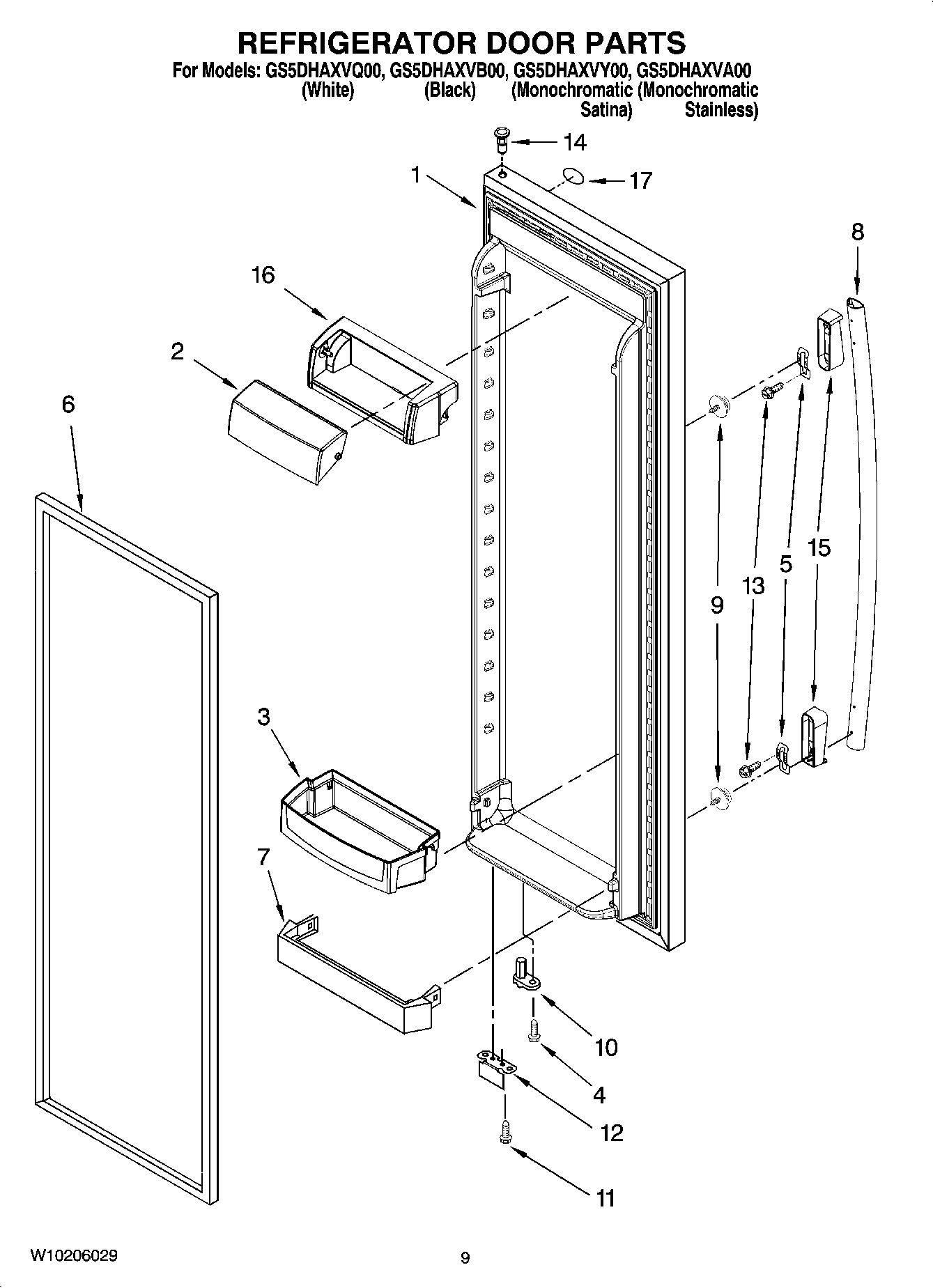

GS5DHAXVB00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Monochromatic Stainless)
1	Refrigerator Door (Includes Item 6) (Mono Satina)
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (White)
2	Dairy Door
3	Shelf Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2255411 Whirlpool Refrigerator Clip
6	WPW10136734 Whirlpool Refrigerator Door Gasket
6	2159083 Whirlpool Gasket Door
6	2159075 Whirlpool Door Gasket Seal
7	WP2156022 Whirlpool Refrigerator Door Trim
8	W10273556 Whirlpool Refrigerator Handle
8	W10210942A Whirlpool Refrigerator Handle
8	W10210943A Whirlpool Refrigerator Handle
9	WPW10288153 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop
12	Bracket, Door Stop
13	WP8533988 Whirlpool Screw Fastener
14	WP2182181 Whirlpool Refrigerator Thimble
15	Handle, Endcap (Black)
15	W10127813 Whirlpool Refrigerator Handle Endcap
15	Handle, Endcap (Stainless, All)
16	Door Compartment
17	Nameplate
