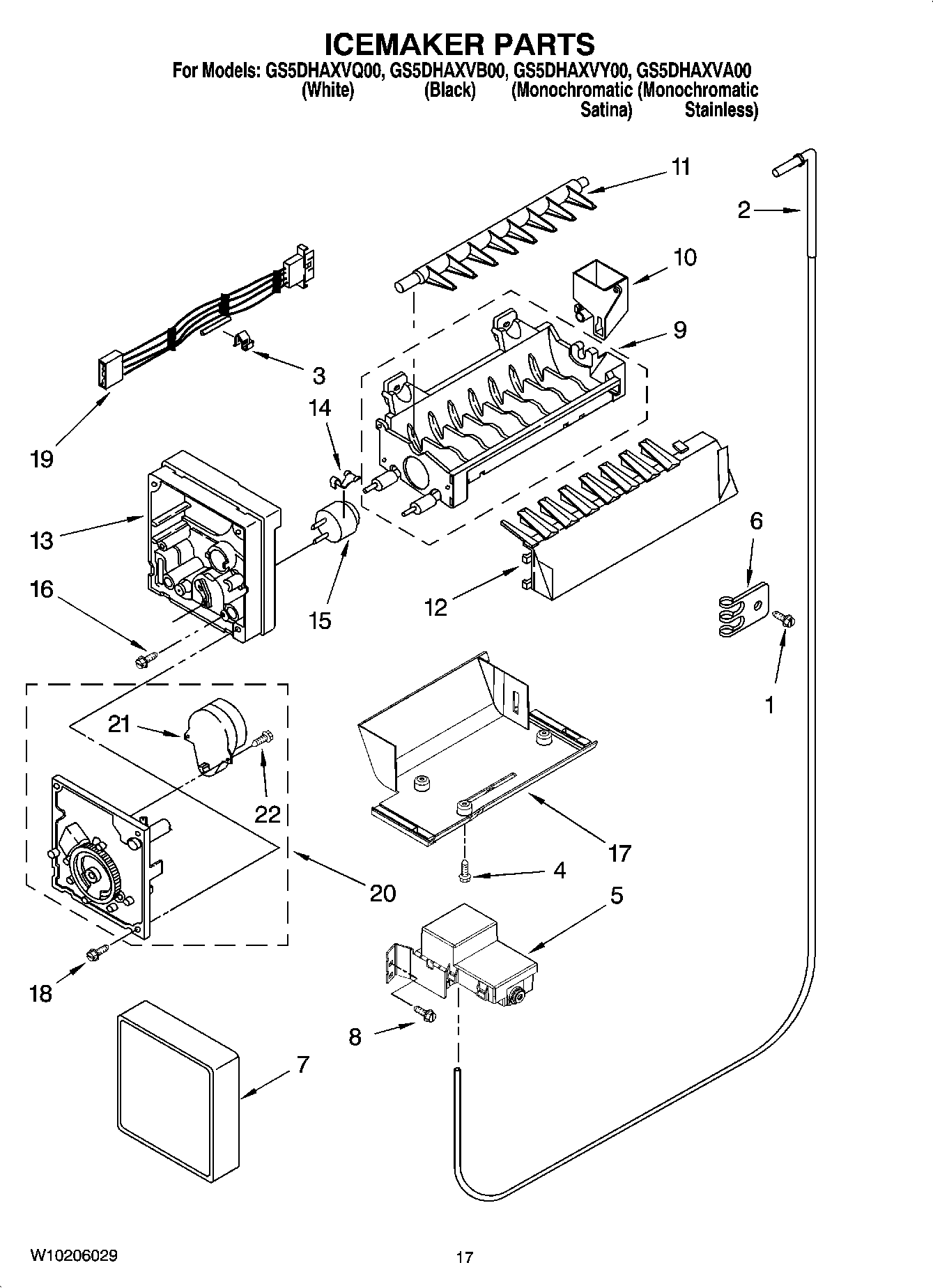

GS5DHAXVQ00 10 – ICEMAKER PARTSadmin2025-04-26T11:29:55+00:00GS5DHAXVQ00 10 – ICEMAKER PARTS ProductsPositionProduct2WP2256096 Whirlpool Refrigerator Fitting3WP628379 Whirlpool Refrigerator Clip4WP489478 Whirlpool Refrigerator Screw5W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit6WP488366 Whirlpool Refrigerator Clamp7WPW10289690 Whirlpool Ice Maker Cover8WPW10141625 Whirlpool Refrigerator Screw Assembly9WPW10190929 Whirlpool Refrigerator Ice Maker Mold10WPW10272168 Whirlpool Refrigerator Water Fill Cup11WP627843 Whirlpool Refrigerator Ejector Arm12W10297244 Whirlpool Refrigerator Arm Strip13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17BRACKET, ICEMAKER MOUNTING18WP681249 Whirlpool Screw Assembly19WP2187467 Whirlpool Refrigerator Wire Harness218201515 Whirlpool Refrigerator Motor and Gear Module Kit22489136 Whirlpool Refrigerator Screw1002198597 Whirlpool Refrigerator Ice Maker
